Which statement is correct in this scenario?

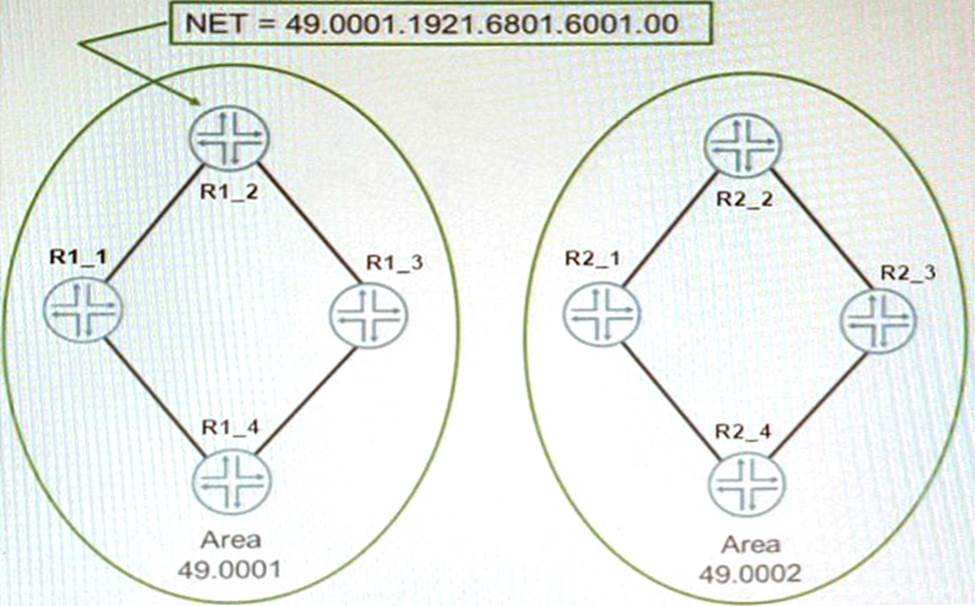

Exhibit

The network shown in the exhibit is based on IS-IS

Which statement is correct in this scenario?
A . The NSEL byte for Area 0001 is 00.
B . The area address is two bytes.
C . The routers are using unnumbered interfaces
D . The system IDofR1_2 is 192.168.16.1

View Answer

Answer: A

Explanation:

IS-IS is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. IS-IS uses two types of addresses to identify routers and areas: system ID and area address. The system ID is a unique identifier for each router in an IS-IS domain. The system ID is 6 octets long and can be derived from the MAC address or manually configured. The area address is a variable-length identifier for each area in an IS-IS domain. The area address can be 1 to 13 octets long and is composed of high-order octets of the address. An IS-IS instance may be assigned multiple area addresses, which are considered synonymous. Multiple synonymous area addresses are useful when merging or splitting areas in the domain1. In this question, we have a network based on IS-IS with four routers (R1_1, R1_2, R2_1, and R2_2) belonging to area 0001. The area address for area 0001 is 49.0001. The NSEL byte for area 0001 is the last octet of the address, which is 01. The NSEL byte stands for Network Service Access Point Selector (NSAP Selector) and indicates the type of service requested from the network layer2. Therefore, the correct statement in this scenario is that the NSEL byte for area 0001 is 01.

References:

1: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_isis/configuration/xe-16/irs-xe-16-book/irs-ovrvw-cf.html

2: https://www.juniper.net/documentation/us/en/software/junos/is-is/topics/concept/is-is-routing-overview.html
