Which IP address will be used to source NAT the internet traffic coming from a workstation with the IP address 10.0.1.10?

Refer to the exhibit.

Exhibit A.

Exhibit B.

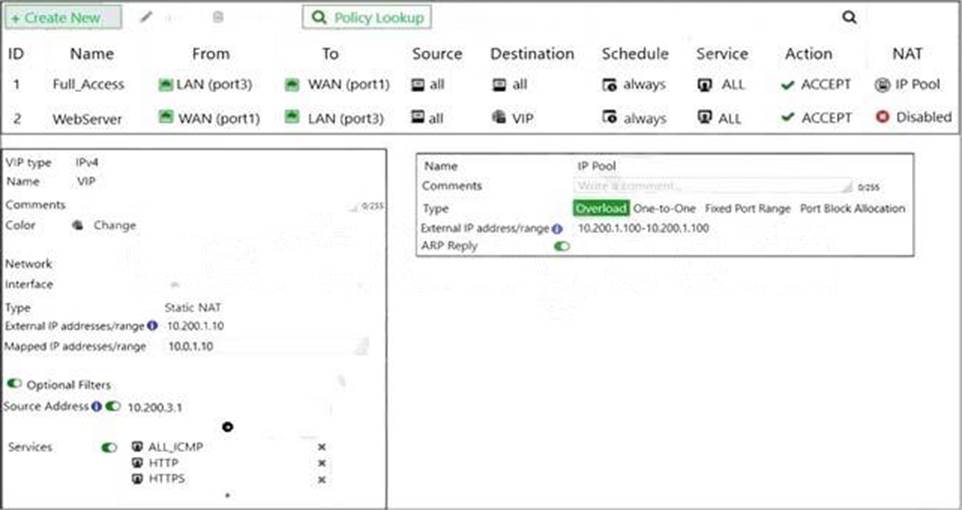

The exhibit contains a network diagram, virtual IP, IP pool, and firewall policies configuration.

The WAN (port1) interface has the IP address 10.200.1.1/24.

The LAN (port3) interface has the IP address 10 .0.1.254. /24.

The first firewall policy has NAT enabled using IP Pool.

The second firewall policy is configured with a VIP as the destination address.

Which IP address will be used to source NAT the internet traffic coming from a workstation with the IP address 10.0.1.10?

A. 10.200.1.1

B. 10.200.3.1

C. 10.200.1.100

D. 10.200.1.10

Answer: A

Explanation:

Reference: https://help.fortinet.com/fos60hlp/60/Content/FortiOS/fortigate-firewall/Concepts%20-%20Firewall/Static%20NAT.htm

https://kb.fortinet.com/kb/documentLink.do?externalID=FD44529
