Which interface is used for the vPC peer keepalive on both 7000′ s?

Scenario:

The following four questions concern the Nexus 7010’ s which are configured as a vPC pair at the core of a Data Center network. You can utilize all the available show commands to answer the Questions Access to the running-configuration is not allowed.

Instructions:

Enter NX-OS commands on 7K-3 and 7K-4 to verity network operation and answer four multiple-choice questions

THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.

Click on the switch to gain access to the console of the switch. No console or enable passwords are required.

To access the multiple-choice questions, click on the numbered boxes on the loft of the top panel.

There are four multiple-choice questions with this task Be sure to answer all four questions before selecting the Next button

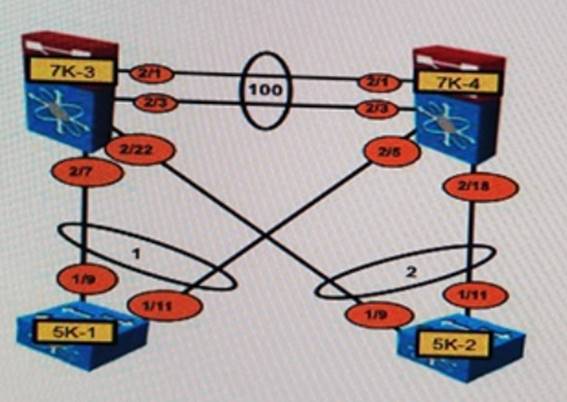

Topology:

Which interface is used for the vPC peer keepalive on both 7000′ s?
A . port-channel 1
B . port-channel 2
C . port-channel 100
D . mgmt 0
E . Ethernet 2/1
F . Ethernet 2/3

View Answer

Answer: D
