Which configuration will resolve connectivity for both sites of customer_a?

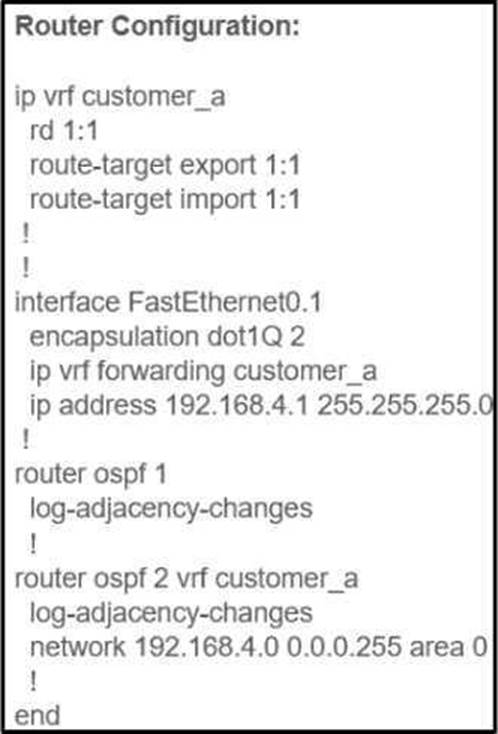

Refer to the exhibit.

The network administrator configured VRF lite for customer A. The technician at the remote site misconfigured VRF on the router.

Which configuration will resolve connectivity for both sites of customer_a?

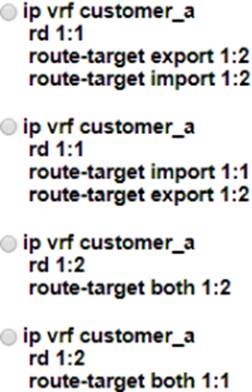

A. Option A

B. Option B

C. Option C

D. Option D

View Answer

Answer: D

Explanation:

From the exhibit, we learned:

+ VRF customer_a was exported with Route target (RT) of 1:1 so at the remote site it must be imported with the same RT 1:1.

+ VRF customer_a was imported with Route target (RT) of 1:1 so at the remote site it must be exported with the same RT 1:1.

Therefore at the remote site we must configure the command “route-target both 1:1” (which is equivalent to two commands “route-target import 1:1” & “route-target export 1:1”.
