What traffic is not redirected by WCCP?

The Web Cache Communication Protocol (WCCP) is a content-routing protocol that can facilitate the redirection of traffic flows in real time. Your organization has deployed WCCP to redirect web traffic that traverses their Cisco Adaptive Security Appliances (ASAs) to their Cisco Web Security Appliances (WSAs).

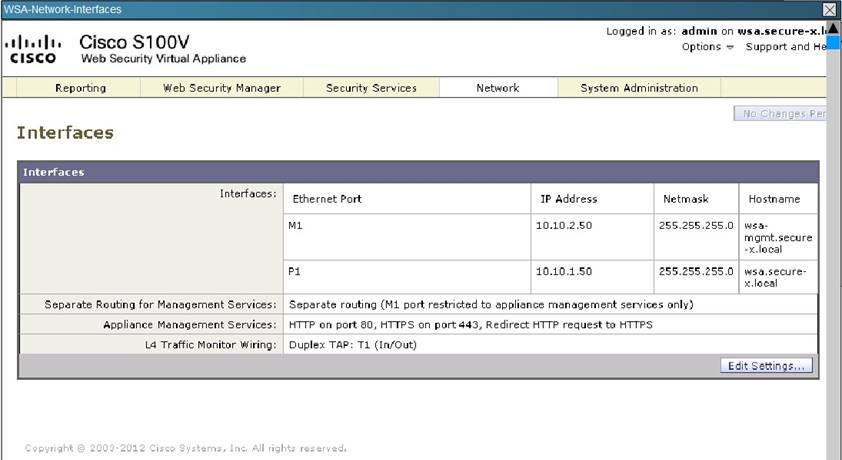

The simulator will provide access to the graphical user interfaces of one Cisco ASA and one Cisco WSA that are participating in a WCCP service. Not all aspects of the GUIs are implemented in the simulator. The options that have been implemented are sufficient to determine the best answer to each of the questions that are presented.

Your task is to examine the details available in the simulated graphical user interfaces and select the best answer.

What traffic is not redirected by WCCP?
A . Traffic destined to public address space
B . Traffic sent from public address space
C . Traffic destined to private address space
D . Traffic sent from private address space

View Answer

Answer: B

Explanation:

From the screen shot below we see the WCCP-Redirection ACL is applied, so all traffic from the Private IP space to any destination will be redirected.
