What should you do from Azure Cloud Shell?

SIMULATION

Click to expand each objective.

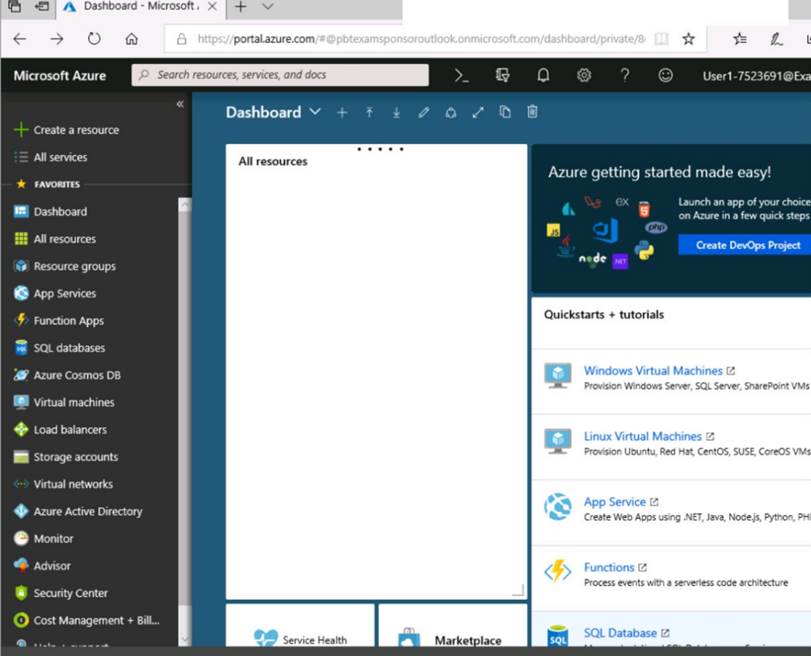

To connect to the Azure portal, type https://portal.azure.com in the browser address bar.

When you are finished performing all the tasks, click the ‘Next’ button.

Note that you cannot return to the lab once you click the ‘Next’ button. Scoring occur in the background while you complete the rest of the exam.

Overview

The following section of the exam is a lab. In this section, you will perform a set of tasks in a live

environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design.

Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task. Labs are not timed separately, and this exam may have more than one lab that you must complete.

You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.

Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.

To start the lab

You may start the lab by clicking the Next button.

You plan to deploy several Azure virtual machines and to connect them to a virtual network named VNET1007.

You need to ensure that future virtual machines on VNET1007 can register their name in an internal

DNS zone named corp8548984.com. The zone must NOT be hosted on a virtual machine.

What should you do from Azure Cloud Shell?

To complete this task, start Azure Cloud Shell and select PowerShell (Linux), Click Show Advanced settings, and then enter corp8548984n1 in the Storage account text box and File1 share text box. Click Create storage, and then complete the task.

View Answer

Answer: Step 1: Launch Cloud Shell from the top navigation of the Azure portal.

Step 2: Select PowerShell

When you start the Azure Cloud Shell for the first time, you will be prompted to create a storage account in order to associate a new Azure File Share to persist files across sessions.

Step 3: Click Show Advanced settings.

Step 4: Enter corp8548984n1 in the Storage account text box and File1 share text box. Click Create storage.

Step 5: Enter the following command at the powershell command prompt:

New-AzDnsZone -Name "corp8548984.com"

-ResourceGroupName "mycloudshell"

-ZoneType Private

-RegistrationVirtualNetworkId VNET1007

Note: A DNS zone is created by using the New-AzDnsZone cmdlet with a value of Private for the

ZoneType parameter.

References:

https://docs.microsoft.com/en-us/azure/dns/private-dns-getstarted-powershell

https://docs.microsoft.com/en-us/azure/cloud-shell/quickstart-powershell

https://docs.microsoft.com/en-us/powershell/module/az.dns/new-azdnszone?view=azps-1.5.0
