What is wrong with this model?

Choose the correct answer.

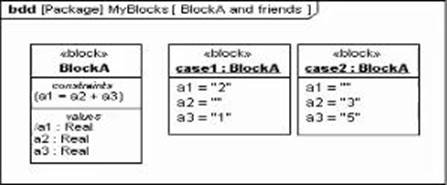

Given the model composed of the following diagram:

The modeler has set all shown values us inputs and next intends to solve the mode that is, to calculate the outputs. Assume nothing relevant has been left out.

What is wrong with this model?
A . The modeler set a1 as an input value in case1.
B. Block A cannot be used by both easel and case2.
C. Both easel and case2 should not be underlined.
D. The slash (/) in property a1 of BlockA is an error that paramethes will assume to be a division sign.

View Answer

Answer: C
