To which virtual machine or virtual machines can VM1 connect?

You have two Hyper-V hosts named Server1 and Server2 that run Windows Server 2016.

The following virtual switches are configured on the Hyper-V hosts.

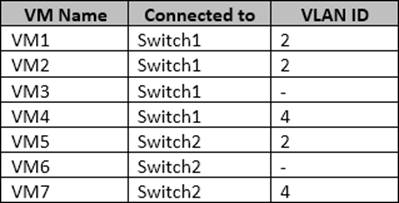

The following virtual machines run on the Hyper-V hosts.

All virtual machines have IP addresses from the 192.168.1.0/24 network. VLANs are configured in Hyper-V only. Physical switches are not configured with VLANs.

To which virtual machine or virtual machines can VM1 connect?
A . VM2, VM3, VM5 and VM6 only
B . VM2, VM3 and VM4 only
C . VM2 only
D . VM2 and VM5 only

View Answer

Answer: D

Explanation:

If the port is set to a specific VLAN, then that port becomes a member of that VLAN. Its frames are still untagged, but the switch will only allow that port to communicate with other devices on the same VLAN.

References: http://www.altaro.com/hyper-v/setting-up-vlans-in-hyper-v/
