To which server can you deploy a Tunnel Gateway server, and which inbound ports should be allowed on the server to support Microsoft Tunnel connections?

HOTSPOT

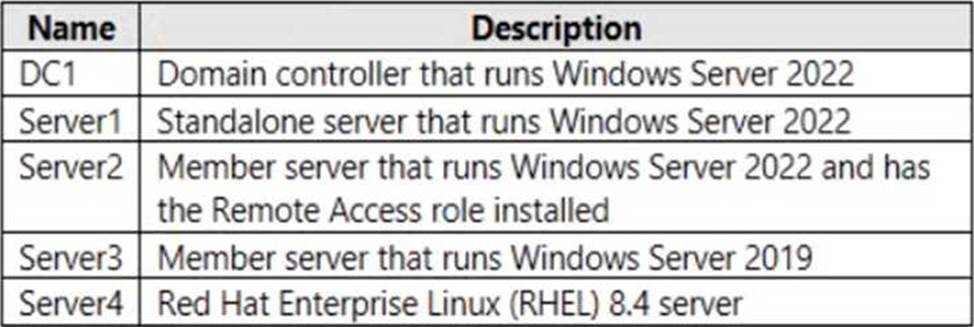

You have the on-premises servers shown in the following table.

You have a Microsoft 365 E5 subscription that contains Android and iOS devices. All the devices are managed by using Microsoft Intune.

You need to implement Microsoft Tunnel for Intune. The solution must minimize the number of open firewall ports.

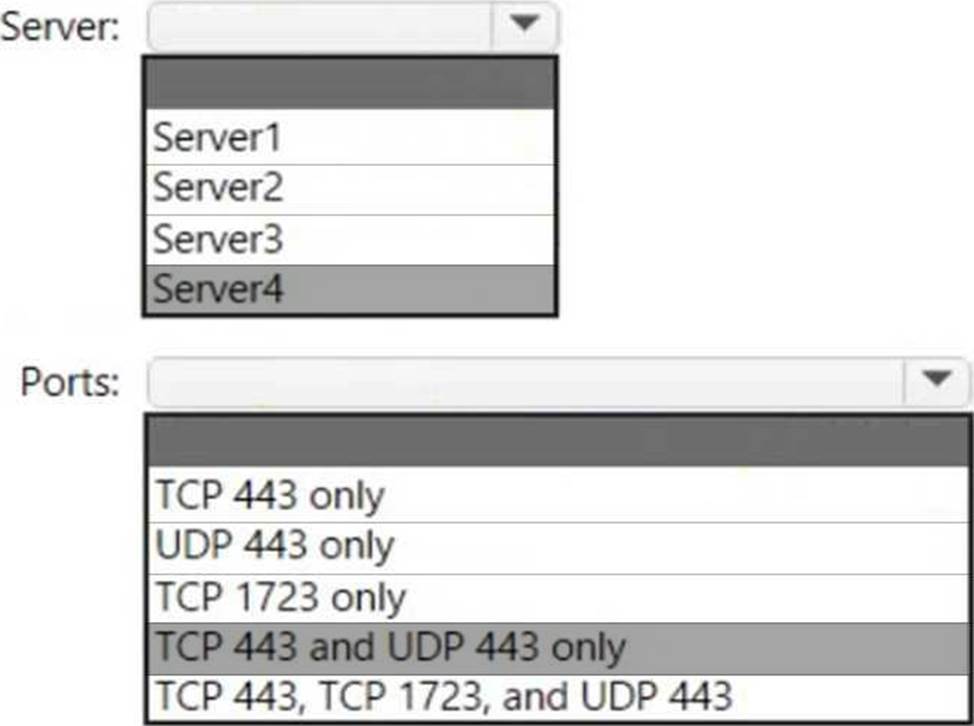

To which server can you deploy a Tunnel Gateway server, and which inbound ports should be allowed on the server to support Microsoft Tunnel connections? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Box 1: Server4

Microsoft Tunnel is a VPN gateway solution for Microsoft Intune that runs in a container on Linux and allows access to on-premises resources from iOS/iPadOS and Android Enterprise devices using modern authentication and Conditional Access.

Box 2: TCP 443 and UDP 443 only

Some traffic goes to your public facing IP address for the Tunnel. The VPN channel will use TCP, TLS, UDP, and DTLS over port 443.

By default, port 443 is used for both TCP and UDP, but this can be customized via the Intune Saerver Configuration C Server port setting. If changing the default port (443) ensure your inbound firewall rules are adjusted to the custom port.

Incorrect:

TCP 1723 is not used.

Reference: https://docs.microsoft.com/en-us/mem/intune/protect/microsoft-tunnel-overview
