Referring to the exhibit, how do you display the IPv6 subnets lot all of the listed VXLANs?

Exhibit.

Referring to the exhibit, how do you display the IPv6 subnets lot all of the listed VXLANs?
A . IPv6 subnets ate shown when each VXLAN is selected individually.
B . Select Columns, then select IPv6 Subnet.
C . Select all VXLANs. and the IPv6 Subnets column will appear
D . An IPv6 Subnets column is not shown, indicating that no VXLAN has an assigned IPv6 subnet

View Answer

Answer: B

Explanation:

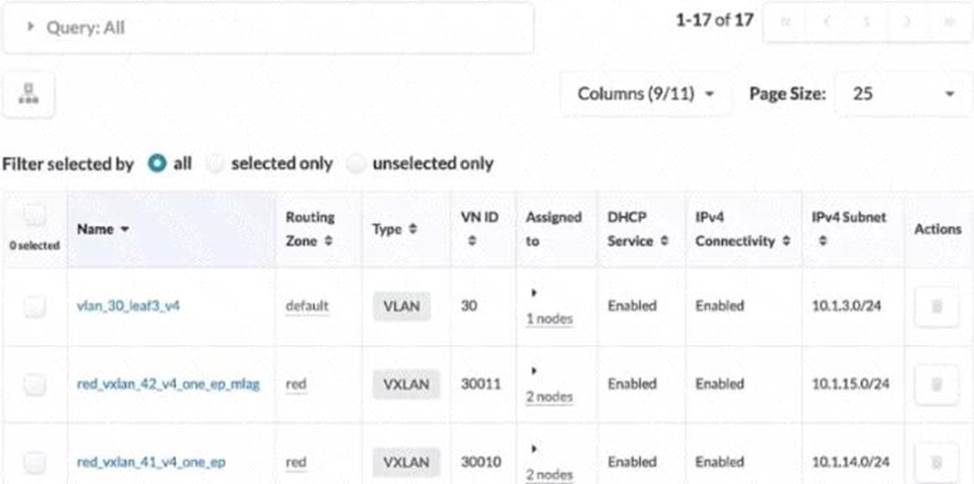

Referring to the exhibit, the image shows a user interface of the Juniper Apstra software application, which is used for network management and configuration. The image shows the Virtual Networks table under the Resources menu, which displays the details of the VLANs and VXLANs in the network. The table has 11 columns, but only 9 are visible in the image. The other two columns are IPv6 Connectivity and IPv6 Subnet, which are hidden by default. To display the IPv6 subnets for all of the listed VXLANs, the user needs to select Columns, then select IPv6 Subnet. This will show the IPv6 Subnet column in the table, which will display the IPv6 addresses assigned to the VXLANs from the IPv6 pools. For more information, see Virtual Networks (Resources).

References:

– Virtual Networks (Resources)

– IPv6 Pools (Resources)

– Apstra User Guide
