A developer of a business-critical application is concerned about system reliability when it comes to a IO resistance.
An architect needs to explain the FlashBlade write mechanism and address three main concerns:
– Data location when FlashBlade acknowledge a write
– Number of created data copies before FlashBlade acknowledges a write
– Blade failure resilience
When does write acknowledgement happen?
- A . When data is written onto Flash.
- B . When data is written NvRAM on three different blades.
- C . When data is written NvRAM on two different blades.
- D . When data is written NvRAM on a super capacitor.
CORRECT TEXT
An oil company moves geological data between their offices in Dubai and Houston for redundancy. The data is accessed via NFS mounts on a cluster of three 10GB connected Linux servers at each location.
A series of cron jobs are leveraged to replicate data from data storage pool A in Dubai to data storage B in Houston and from data storage A in Houston to data storage pool B in Dubai.
Data in storage pool A is read-write, updated by 50 cellular connected data collector running in the field, and deleted after 30 days.
Data in the storage pool B is read-only, queried by the firm’s analytics team, and copied to a cloud-based archive repository every 30 days.
The total amount of data in pool A in Dubai is 1.5PB
The total amount of data in pool B in Houston is 500TB
The data is not expected to grow in the next 12 months and is compressed by the application.
Which configuration should the architect present to meet this customer needs?
- A . A Multi-Chassis FlashBlade with 52TB blades for each site focusing on simplicity.
- B . A Multi-Chassis FlashBlade with 17TB blades for each site focusing on performance.
- C . A Multi-Chassis FlashBlade with 52TB blades for each site and third-party replication software.
- D . A Multi-Chassis FlashBlade with 17TB blades for each site and third-party replication software.
A retail customer is designing a new application that will train an AI algorithm with metadata from purchase transactions.
The customer has the following constraints:
– Billions of transactions per hour
– Hundreds of thousands of clients
– Easily connect and disconnect from many network locations
– Asymmetric encryption across a WAN
– Resilience to network latency
Which protocol should the architect recommend?
- A . NFS v3
- B . NFS v4.1
- C . SMB
- D . S3
A company has an existing database running a critical application. Users are complaining of slow response times. The company asks Pure Storage for help fixing this problem.
Which (three) questions should the architect ask to determine if FlashBlade is a good fit for the use case? (Choose three.)
- A . What is the current storage the database is running on today?
- B . How long has the database been up?
- C . How many users does the application support?
- D . What type of queries does the database support for the application?
- E . Is it and OLAP or OLTP database?
After revising Cloud-First strategy, a customer’s CFO asks an architect to recommend which workloads should be moved to FlashBlade.
Which two workloads will be successful on FlashBlade? (Select two.)
- A . Point of Sale using Oracle OLTP.
- B . Annual reporting using Oracle Warehouse.
- C . Real Time Gaming Application using MySQL DB.
- D . AI/ML TensorFlow Model.
- E . Highly Sensitve Training Application that requires synchronous replication.
A current FlashBlade customer has a chip design process that is not meeting their SLAs. Although the customer is using fast remove, the IOPS on their 7x17TB FlashBlade have plateaued around 700K IOPS.
What should the architect recommend adding?
- A . Blades
- B . VIPs
- C . LAG
- D . Subnets
The customer provides the network diagram shown. The customer wants to use RBAC and SMB on the FlashBlade.
The customer does NOT use encryption for identity-related traffic.
Which ports must be opened for this to work?
- A . Ports 53, 389, and 445 on Firewalls A and C
Ports 53 and 445 on Firewall B - B . Ports 53 and 2049 on Firewalls A and B
Ports 53 and 389 on Firewall C - C . Port 123 on Firewalls A and C
Ports 445 and 636 on Firewall B - D . Ports 123, 445, and 636 on Firewalls A and B
Port 445 on Firewall B
A customer has hundreds of TB of data that they need to archive for 20 years. The customer will need to completely destroy the data. They will only to access the data once or twice during the 20 years. The data is very sensitive. It would be a serious security breach if anyone accessed the data during that time. The customer is considering NAS.
Why should the architect recommend another solution?
- A . NAS will NOT meet the isolation and security requirements.
- B . NAS will be to expensive compared to other satisfactory solution.
- C . NAS storage mediums will degrade too much during the required 20 year of archive.
- D . NAS storage will make complete data destruction impossible.
What is the speed of the connections between individual blades and the midplane?
- A . 1Gb/s
- B . 10Gb/s
- C . 40Gb/s
- D . 100Gb/s
A customer has an application that stores GIS data in an S3 repo. For compliance reasons, the GIS data that existed at a previous point in time may need to be accessed.
What should the architect do?
- A . Enable object versioning
- B . Take periodic snapshots
- C . Replicate the older objects
- D . Back up the GIS data regularly
What must an architect do to delete a filesystem?
- A . Unmount the file system from clients
- B . Turn off the system services
- C . Enable Fast Remove
- D . Take a snapshot and then remove file system
A customer is a heavy Windows user and generally uses SMB for everything, including backups. The customer wants to refresh the storage used within their backup environment. The customer is using Commvault for the backup software.
Which protocol should the architect recommend?
- A . SMB
- B . NDMP
- C . S3
- D . NFS
What happens when a blade is added to an existing 7x17TB FlashBlade system?
- A . The system gains ~1GB of write performance and ~15TB of capacity.
- B . The system gains ~1GB of read performance and ~15TB of capacity.***
- C . The system notifies support via Pure1 and waits for blade acknowledgement.
- D . The system gains additional fault tolerance and increases the reserve capacity.
How many rack units (Rus) of space are required to support a multi-chassis FlashBlade with 40 blades?
- A . 18 Rus
- B . 14 Rus
- C . 12 Rus
- D . 9 Rus
A customer has an existing Flashblade with 13x52TB blades in a single-chassis configuration and needs more capacity for a new application coming online in the next few weeks. The architect has determined they need an additional four blades.
How many additional rack units are required to accommodate the new blades?
- A . 12
- B . 10
- C . 6
- D . 4
A customer is interested in deploying Splunk for their infrastructure logs. They will not be replicating the Splunk environment to another site, anticipate a 2TB per day ingest rate, and want to be able to easily scale their indexers independent of their storage.
How should the architect recommend that the customer deploy Splunk?
- A . Spluck Classic on FlashArray
- B . Spluck Classic on FlashBlade
- C . Spluck SmartStore on FlashBlade
- D . Spluck SmartStore on FlashArray

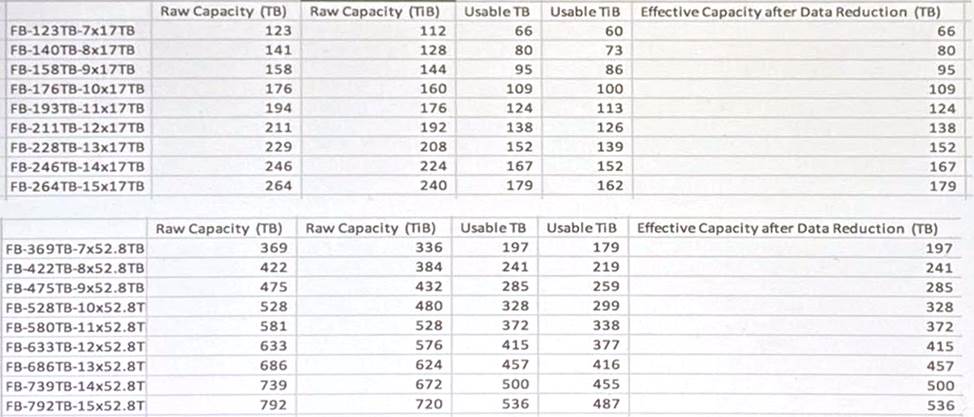

An architect need to create capacity sizing of FlashBlade to move data from a 6-year old EMC-Dell Isilon.
The current Isilon solution consumes almost 1.3PB.
There are three workloads:
– Warehouse application (40 TB, estimated compression ratio 2:1, IO size 8K)
– Images (20 TB, estimated compression ratio 1.0:1 average image size 1M)
– Log files (40 TB, estimated compression ratio 4:1, average file size 4k)
What is the required FlashBlade configuration?
- A . 7x17TB blades
- B . 15x17TB blades
- C . 15x52TB blades
- D . 42x52TB blades
A customer decides to use S3 as a protocol between the Backup Server to FlashBlade. The Backup Application S3 client in multi-threaded .
What is the expected maximum restore throughput?
- A . ~10Gb/s
- B . ~80Gb/s
- C . ~70Gb/s
- D . ~20Gb/s
Which two network configurations must be present for FlashBlade to server data? (Select two.)
- A . Duplex set to Auto
- B . LAG(s)
- C . Active/active port-channel
- D . A reachable SMTP server
- E . A reachable SNMP server
What are Port 31/32 on the XFMs reserved for?
- A . Customer Network
- B . Console
- C . Switch interconnectivity
- D . FlashBlade Chassis

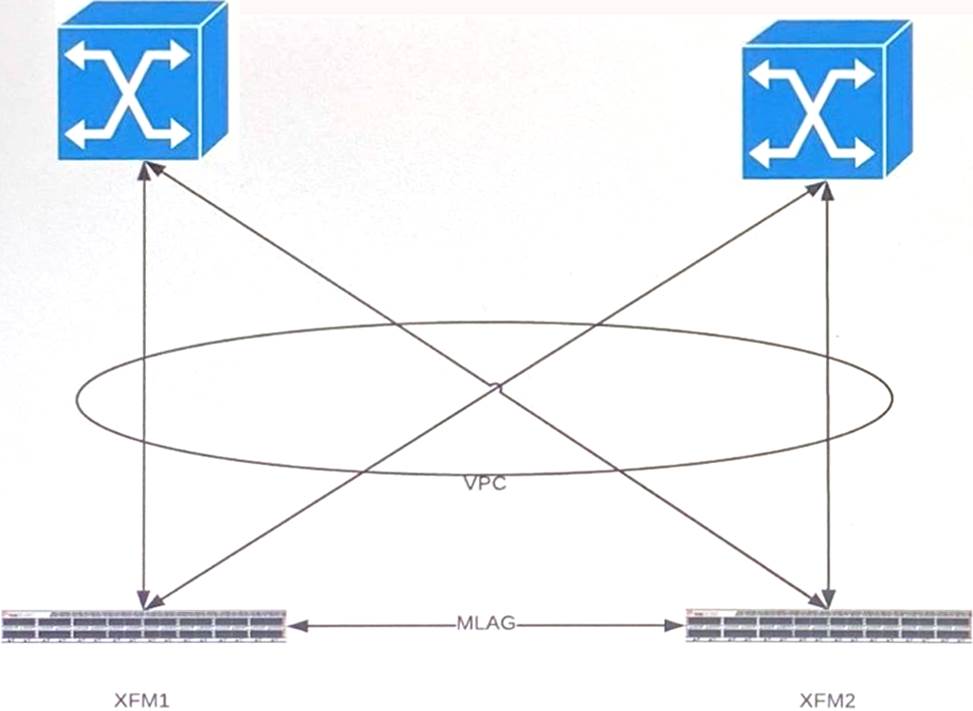

‘The Network admins create a network setup:
What is the result if the FlashBlade is run in this configuration?
- A . The FlashBlade causes ARP storms.
- B . SMB clients are unable to connect.
- C . NFS clients experience higher latencies.
- D . FlashBlade will be unable to resolve internal DNS.
A customer is using the FlashBlade as an image database backup/restore target. The dataset that they are backing up is 100TB. The customer has a 5-day snapshot retention policy, and an average of 50TB of data change from day to day.
Which factor will alter the physical datasize?
- A . Erasure Coding
- B . Write Size
- C . RAID Overhead
- D . Snapshot Retention
A customer has an application that needs to prioritize speed for untrusted applications to put large numbers of files on an NFS export .
Which NFS Export options should be used?
- A . *(ro, async, root_squash)
- B . *(rw, async, root_squash)
- C . *(ro, sync, no_root_squash)
- D . *(rw, sync, root_squash)
A customer wants to use and orchestration tool to manage the FlashBlade.
How should the customer create the API key?
- A . Go to Settings/Users
- B . Go to Storage/File Systems/Details
- C . Run ‘pureadmin’ from the command line
- D . Run ‘pureconfig’ from the command line
A customer asks an architect to help troubleshoot low throughput in their high-performance compute (HPC) environment. All 70 HPC nodes have a single 10Gb connection to a 96 port 10Gb switch. The FlashBlade is connected to their dedicated HPC switch with 8x10Gb connections. The HPC application is using a single shared S3 bucket for the data being processed.
Which change is needed to increase throughput?
- A . Add more uplinks to the HPC switch.
- B . Add more VLANS to FlashBlade.
- C . Add more IPs to the existing VLAN
- D . Add more nodes to the HPC cluster
A customer is implementing a new backup system using four backup appliances, with dual 10Gbps NICs writing to a FlashBlade. Each backup appliance can write at line speed.
What is the minimum number of 52TB blades to be able to handle this workload?
- A . 8 blades
- B . 15 blades
- C . 27 blades
- D . 35 blades
A customer is deploying a FlashBlade into a datacenter where the top of rack switches cannot be configured into a single LAG.
Which two actions are necessary to configure the FlashBlade to use both switches? (Choose two.)
- A . Create multiple exports
- B . Create multiple VIPs
- C . Create multiple LAGs
- D . Use round robin load balancing
- E . Use a multi-chassic configuration.

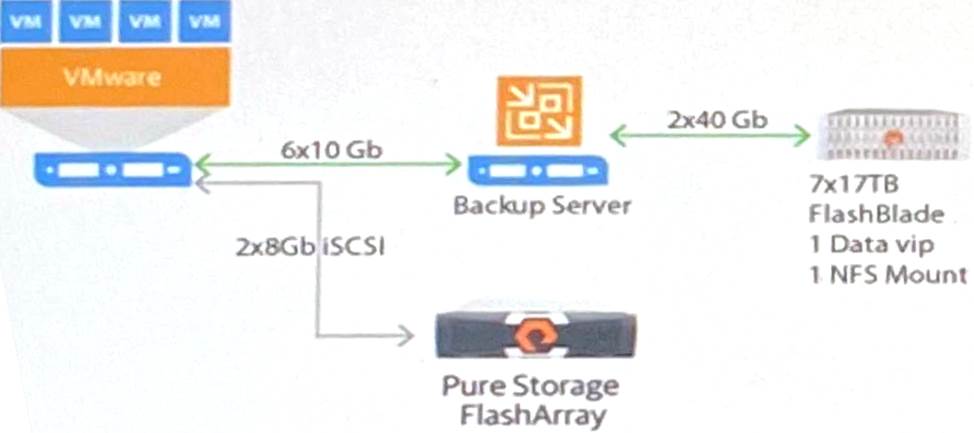

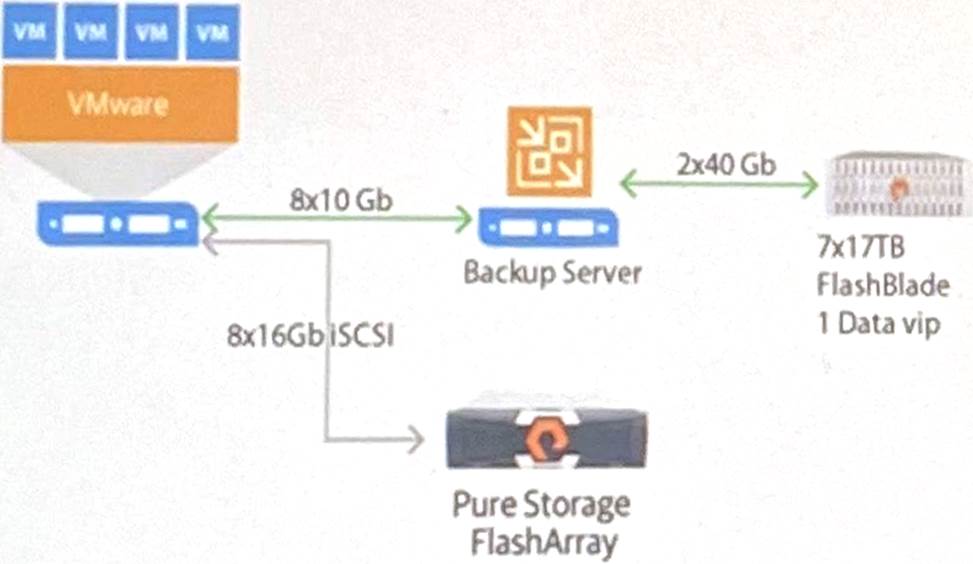

The customer expects at least 2GB/s of backup throughput but only sees 1GB/s .
What is causing the issue?
- A . Architecture of FlashArray and server infrastructure configuration.
- B . Architecture of the backup server and FlashBlade network.
- C . Architecture of server infrastructure and backup server network.***
- D . Architecture of backup server/FlashBlade NFS/Data VIP configuration.
