Choose the correct answer.

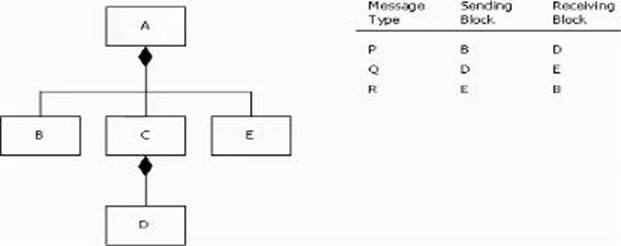

Given the following bdd fragment and table showing messages sent between blocks:
Block C Is encapsulated; none of the other blocks are.

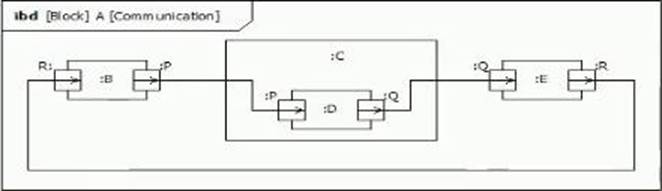

Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.

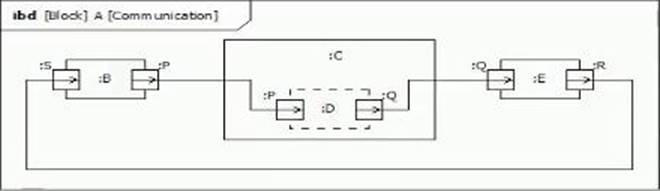

A)

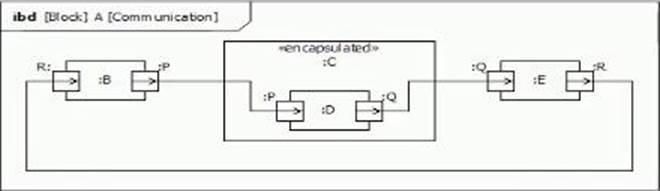

B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
Choose the correct answer.
A system engineer has created a SysML block structure for his system-of-interest. Two of the blocks (M and E) represent system-level abstractions of components that will be designed by a mechanical engineer and an electrical engineer m their respective computer-aided design (CAD) tools.
Given that the CAD models are wrapped as blocks B_mcad and B_ecad, what type of diagram should the system engineer use to quantitatively relate the properties of B_mcad and B_ecad to their system level abstractions M and E respectively?
- A . an activity diagram
- B . a parametric diagram
- C . an internal block diagram
- D . a block definition diagram
Choose the correct answer
How can the composition (black diamond) relationship be used to relate Requirements?
- A . Composition allows requirements to inherit properties and requirements relationships
- B . Composition allows role names to be assigned to sub-requirements thus providing a contextual reference
- C . Composition allows a particularly useful requirement to be reused by multiple higher level requirements or specifications
- D . Composition allows a requirement to be decomposed into sub-requirements as long as they don’t add to or change the meaning of the original requirement.
- E . Requirements cannot use composition. They are not classifiers
Choose the correct answer.
Which package diagram fragment depicts the definitions of the stereotypes Hardware and Software?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
Choose the correct answer.
Given the following diagram fragment:
What does the multiplicity at the actor end mean?
- A . At most two Initiator actor instances can perform the use case
- B . Two Initiator actor instances are required to trigger the use case
- C . Two Initiator actor instances are required to participate in the use case.
- D . Multiplicities carry no meaning on use case diagrams
Choose the correct answer.

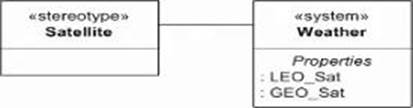

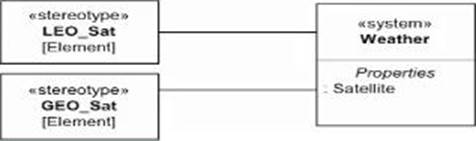

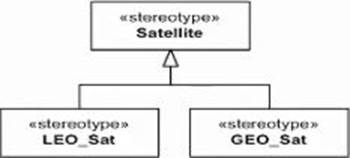

An engineer is building a model of a system that includes both Low Earth Orbit (LEO) and Geosynchronous Orbit (GEO) satellites.
Which diagram fragment shows a well-designed set of domain stereotypes that can be applied to the blocks representing those system elements?

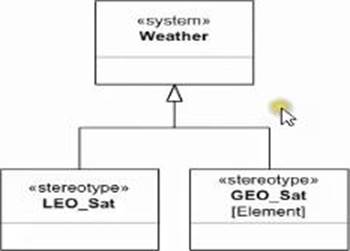

A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
Choose the correct answer.
Given the following diagram:
What needs to be determined in order to model the connection between components s0 and u3 in more detail?
- A . whether component s0 subclasses component u3
- B . which parts of each component participate in the connection
- C . which parts of each component participate in a reference association
- D . whether any part that belongs to component s0 subclasses a pan that belongs to component u3
Choose the correct answer.
Given the following diagram:
What is element C?
- A . a tag value
- B . an association block
- C . a connector property
- D . a connector illustration
- E . a relation information element
Choose the correct answer.
Given the following diagram:

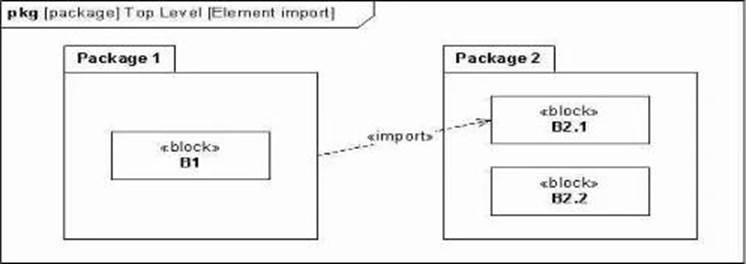

Which diagram is correct?

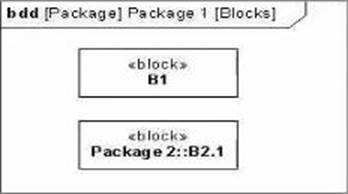

A)

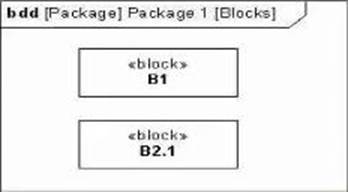

B)

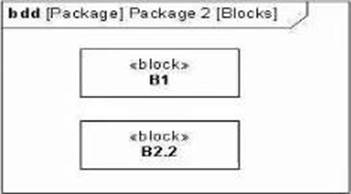

C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
Choose the correct answer
Which diagram fragment validly depicts adding properties to a stereotype?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
