Network Appliance NS0-520 NetApp Certified Implementation Engineer – SAN, ONTAP Online Training
Network Appliance NS0-520 Online Training
The questions for NS0-520 were last updated at Jan 06,2025.
- Exam Code: NS0-520
- Exam Name: NetApp Certified Implementation Engineer - SAN, ONTAP
- Certification Provider: Network Appliance
- Latest update: Jan 06,2025
On your ONTAP 9.5 cluster, you need to set up the onboard key manager with hardware-based security and volume encryption.
Which two licenses are required in this situation? (Choose two.)
- A . FDE
- B . TPM
- C . VE
- D . RSA
A customer is planning to connect a Linux server to a FAS8200 using Brocade FC switches. During the initial configuration, the SVM does not log in to the fabric.
Which two statements are correct in this scenario? (Choose two.)
- A . NPIV has not been enabled on the switches.
- B . The switch port topology is set incorrectly to the E_Port.
- C . ALUA has not been set up on the FAS8200.
- D . Zoning is incorrectly configured between the Linux server and the ONTAP cluster.
You need to configure iSCSI on your existing ONTAP cluster in a new SVM. The iSCSI LUNs will be served over a new Layer 2 network using the same physical ports that also use the CIFS protocol on a different SVM.
Which two actions should you perform to accomplish this task? (Choose two.)
- A . Create a new portset.
- B . Create a new VLAN.
- C . Create a new broadcast domain.
- D . Create a new AD object.

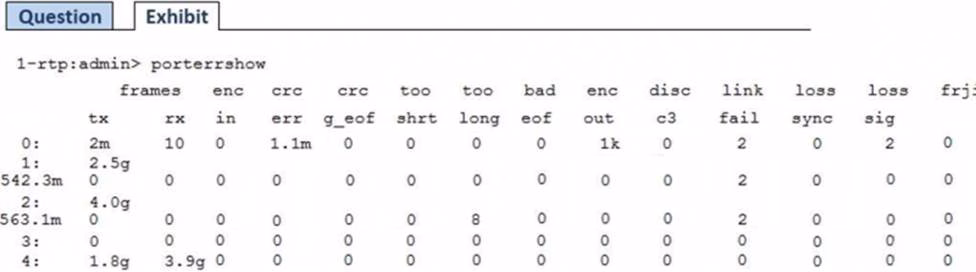

Referring to the exhibit, what is the problem with switch port 0?
- A . The transmit and receive links were switched.
- B . The SFP+ is faulty.
- C . The receive power is lower.
- D . The link is not connected.
An administrator has expanded a 2-node ONTAP cluster to a 4-node ONTAP cluster. The cluster is using FC LUNs with all of the default settings. You must rebalance the LUNs to the new nodes.
Which configuration must be made to achieve this requirement?
- A . The new nodes must be added to the reporting nodes list.
- B . All nodes must be removed from the reporting nodes list.
- C . The original nodes must be added to the reporting nodes list.
- D . The original nodes must be removed from the reporting nodes list.
Referring to the exhibit, which container gains space savings from deduplication, compression and compaction?
- A . the aggregate
- B . the qtree
- C . the volume
- D . the LUN
Referring to the exhibit, which three steps are required to accomplish this task? (Choose three.)
- A . Issue the ucadmin modify -node AFF_1 -adapter 0e -mode FC -type target command.
- B . Issue the ucadmin modify -node AFF_1 -adapter 0e -mode FC -type initiator command.
- C . Restart the FC service.
- D . Take ports 0e and of offline.
- E . Reboot the node.
You want to connect a NetApp AFF A700 to a 32 Gb FC switch. The ports need to connect at 32 Gb speed.
In this scenario, which statement is correct?
- A . The AFF A700 includes FC ports natively on the controller.
- B . The AFF A700 includes an additional FC I/O module that is already populated in each controller.
- C . You need to purchase a two-port or four-port unified I/O module that enables FC and Ethernet connectivity.
- D . You need to purchase a two-port or four-port FC I/O module.
You are troubleshooting high CPU use on a FAS8200 with all SAS HDDs. You have SAN hosts with LUNs in a volume named vol1. You want to reduce CPU use and maintain storage efficiencies.
Referring to the exhibit which three actions will accomplish this task? (Choose three.)
- A . Disable compression.
- B . Enable cross-volume deduplication.
- C . Disable inline deduplication.
- D . Enable post process deduplication.
- E . Enable data compaction.

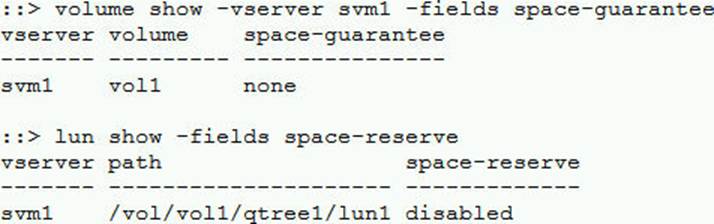

You create a 20 GB LUN in a newly created 100 GB FlexVol volume. You then write 5 GB of data to the LUN. You have space reservation disabled on the LUN.
In this scenario, how much space do you have left on the volume?
- A . 95 GB
- B . 80 GB
- C . 75 GB
- D . 85 GB
