Network Appliance NS0-519 NetApp Certified Implementation Engineer – SAN, ONTAP Online Training
Network Appliance NS0-519 Online Training
The questions for NS0-519 were last updated at Nov 19,2024.
- Exam Code: NS0-519
- Exam Name: NetApp Certified Implementation Engineer - SAN, ONTAP
- Certification Provider: Network Appliance
- Latest update: Nov 19,2024
You are called to help with a new customer’s SAN environment that consists of an 8-node AFF A700 cluster, Cisco MDS fabric switches, and Cisco UCS servers.
Which two tools would help you to assess the environment? (Choose two.)
- A . Active IQ OneCollect
- B . Active IQ Upgrade Advisor
- C . NetApp ONTAP Mediator
- D . Brocade SAN Health
Which two SAN components are inventoried by Active IQ OneCollect? (Choose two.)
- A . storage controller
- B . FC switches
- C . power supply
- D . fans
A database owner requests that two additional hosts be added to an application server cluster. This brings the host count for the fabric to 10. The company’s internal procedure is to set SAN hosts with a queue depth of 256. The FAS8300 2-node cluster is configured with one HBA per node with one port connected to fabric A and one port connected to fabric B. Users complain about inconsistent performance.
What must the storage administrator do to ensure continuous operation of the hosts in this new configuration?
- A . Add two more hosts to the application server cluster.
- B . Reduce the number of LIFs per node on the FAS8300 cluster.
- C . Create two additional LIFs per node on the FAS8300 cluster.
- D . Reduce the queue depth of the hosts such that the total does not exceed 2048.
An administrator enabled the iSCSI protocol on an SVM and created a LUN for a VMware ESXi server.
After the administrator performs a rescan, the LUN is not visible on the host.
Which statement describes how to solve this problem?
- A . Create an igroup, add the iSCSI IQN, then map the LUN to the igroup.
- B . Enable ALUA support on the VMware host.
- C . Perform a takeover/giveback of the controller that is hosting the LUN.
- D . Create an igroup, add the WWPN of the host initiator, then map the LUN to the igroup.

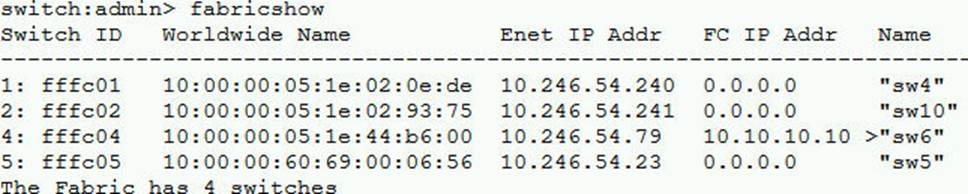

Click the Exhibit button.
Referring to the exhibit, which switch in the fabric is the principal switch?
- A . sw10
- B . sw6
- C . sw4
- D . sw5
You have a 2-node AFF A400 serving FC LUNs. You are asked to make an instant-writable copy of a LUN in a deduplicated volume. The writable copy must not take additional space.
In this scenario, which two ONTAP features would be used? (Choose two.)
- A . clone split
- B . volume clone
- C . LUN move
- D . file clone

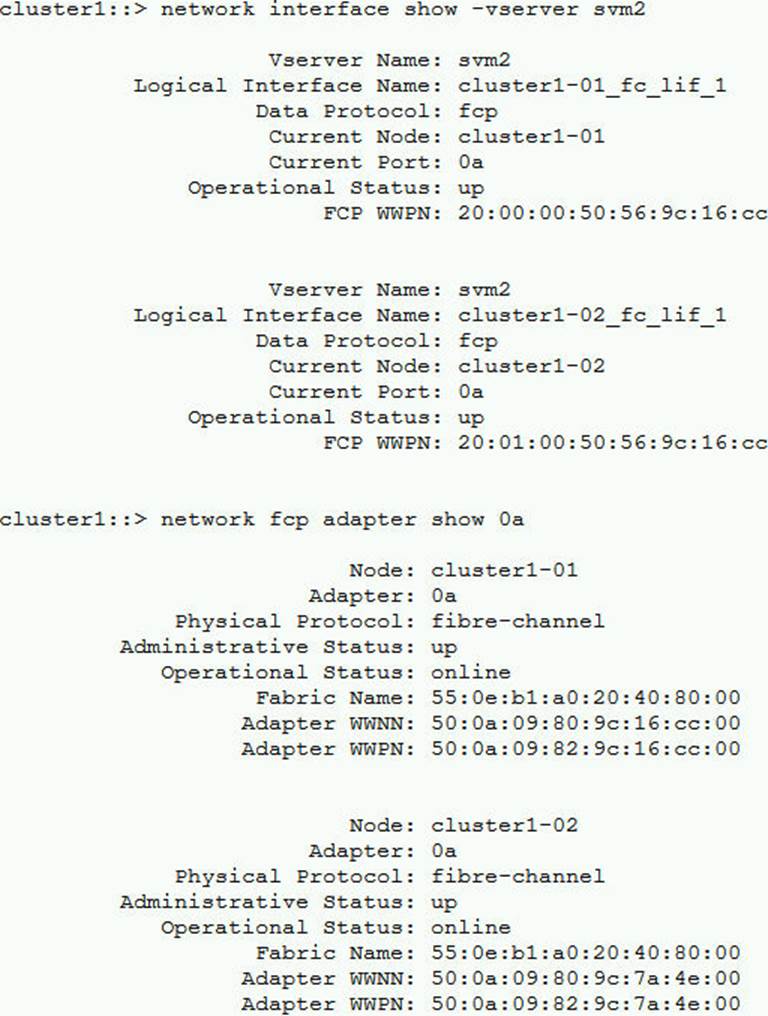

Click the Exhibit button.
Referring to the exhibit, which two Fibre Channel names should you zone on the FC switch to provide connectivity to the LUN? (Choose two.)
- A . 50:0a:09:82:9c:16:cc:00
- B . 50:0a:09:82:9c:7a:4e:00
- C . 20:00:00:50:56:9c:16:cc
- D . 20:01:00:50:56:9c:16:cc
You plan to use Foreign LUN Import (FLI) to migrate data from an older storage array to an ONTAP cluster. You have properly cabled the storage array and the NetApp nodes to your dual-fabric SAN.
Which two steps are required for this migration and cutover? (Choose two.)
- A . Add NetApp WWN initiator ports to the existing zones.
- B . Add NetApp WWN target ports to the existing zones so that your hosts can access both storage arrays.
- C . Create two zones that contain the NetApp target ports and the host initiators ports, one for each fabric.
- D . Create two zones that contain NetApp initiator ports and the source storage target ports, one for each fabric.
You are asked to increase the size of your existing 4-node FAS8060 cluster running ONTAP 9.7 software with four additional AFF A700 nodes.
Which tool enables you to confirm that this will be a valid addition?
- A . Active IQ OneCollect
- B . Hardware Universe (HWU)
- C . Active IQ Config Advisor
- D . Active IQ

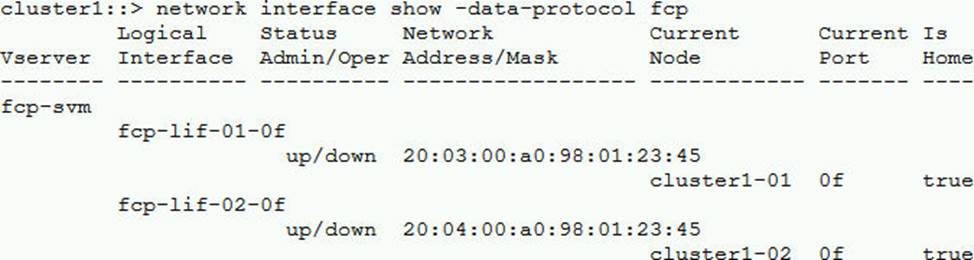

Click the Exhibit button.
The storage system reports that one or more of the FC LIFs have the administratively up and operationally down status. Initiators are unable to connect to the affected LIFs or access LUNs that are presented by those LIFs.
Referring to the exhibit, which command fields provide port login details with the switch?
- A . media-type
- B . conn-established
- C . fabric-established
- D . status-extended
