Microsoft 70-412 Configuring Advanced Windows Server 2012 Services Online Training

Your company recently deployed a new Active Directory forest named contoso.com. The first domain controller in the forest runs Windows Server 2012 R2.

You need to identify the time-to-live (TTL) value for domain referrals to the NETLOGON and SYSVOL shared folders.

Which tool should you use?

Reveal Solution Hide Solution

HOTSPOT

Your network contains an Active Directory forest named contoso.com that contains a single domain. The forest contains three sites named Site1, Site2, and Site3.

Domain controllers run either Windows Server 2008 R2 or Windows Server 2012 R2.

Each site contains two domain controllers. Site1 and Site2 contain a global catalog server.

You need to create a new site link between Site1 and Site2. The solution must ensure that the site link supports the replication of all the naming contexts.

From which node should you create the site link? To answer, select the appropriate node in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Create a Site Link

To create a site link

– Open Active Directory Sites and Services. To open Active Directory Sites and Services, click Start, click Administrative Tools, and then click Active Directory Sites and Services. To open Active Directory Sites and Services in Windows Server® 2012, click Start, type dssite.msc.

– In the console tree, right-click the intersite transport protocol that you want the site link to use.

Use the IP intersite transport unless your network has remote sites where network connectivity is intermittent or end-to-end IP connectivity is not available. Simple Mail Transfer Protocol (SMTP) replication has restrictions that do not apply to IP replication.

Reference: Create a Site Link p://technet.microsoft.com/en-us/library/cc731294.aspx

Your network contains two Active Directory forests named contoso.com and adatum.com. Contoso.com contains one domain. Adatum.com contains a child domain named child.adatum.com.

Contoso.com has a one-way forest trust to adatum.com. Selective authentication is enabled on the forest trust.

Several user accounts are migrated from child.adatum.com to adatum.com. Users report that after the migration, they fail to access resources in contoso.com. The users successfully accessed the resources in contoso.com before the accounts were migrated.

You need to ensure that the migrated users can access the resources in contoso.com.

What should you do?

Reveal Solution Hide Solution

HOTSPOT

Your network contains an Active Directory domain named contoso.com. The domain contains domain controllers that run either Windows Server 2003, Windows Server 2008 R2, or Windows Server 2012 R2. You plan to implement a new Active Directory forest. The new forest will be used for testing and will be isolated from the production network. In the test network, you deploy a server named Server1 that runs Windows Server 2012 R2. You need to configure Server1 as a new domain controller in a new forest named contoso.test.

The solution must meet the following requirements:

• The functional level of the forest and of the domain must be the same as that of contoso.com.

• Server1 must provide name resolution services for contoso.test.

What should you do? To answer, configure the appropriate options in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Set the forest function level and the Domain functional level both to Windows Server 2003.

Also check Domain Name (DNS) server.

Note:

* When you deploy AD DS, set the domain and forest functional levels to the highest value that your environment can support. This way, you can use as many AD DS features as possible. For example, if you are sure that you will never add domain controllers that run Windows Server 2003 to the domain or forest, select the Windows Server 2008 functional level during the deployment process. However, if you might retain or add domain controllers that run Windows Server 2003, select the Windows Server 2003 functional level.

* You can set the domain functional level to a value that is higher than the forest functional level. For example, if the forest functional level is Windows Server 2003, you can set the domain functional level to Windows Server 2003or higher.

Reference: Understanding Active Directory Domain Services (AD DS) Functional Levels

Your network contains an Active Directory forest named adatum.com. The forest contains a single domain. The domain contains four servers.

The servers are configured as shown in the following table.

You need to update the schema to support a domain controller that will run Windows Server 2012 R2.

On which server should you run adprep.exe?

Reveal Solution Hide Solution

HOTSPOT

Your network contains three Active Directory forests.

The forests are configured as shown in the following table.

A two-way forest trust exists between contoso.com and divisionl.contoso.com. A two-way forest trust also exists between contoso.com and division2.contoso.com.

You plan to create a one-way forest trust from divisionl.contoso.com to division2.contoso.com.

You need to ensure that any cross-forest authentication requests are sent to the domain controllers in the appropriate forest after the trust is created.

How should you configure the existing forest trust settings? In the table below, identify which configuration must be performed in each forest. Make only one selection in each column. Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

There will be a one-way forest trust from division1.contoso.com to division2.contoso.com

Division1 trusts Division2. Division2 must be able to access resources in Division1.

Division1 should not be able to access resources in Division2.

Your network contains an Active Directory forest named contoso.com. The forest contains three domains. All domain controllers run Windows Server 2012 R2.

The forest has a two-way realm trust to a Kerberos realm named adatum.com.

You discover that users in adatum.com can only access resources in the root domain of contoso.com.

You need to ensure that the adatum.com users can access the resources in all of the domains in the forest.

What should you do in the forest?

Reveal Solution Hide Solution

Your network contains an Active Directory forest named contoso.com. The forest contains two domains named contoso.com and childl.contoso.com. The domains contain three domain controllers.

The domain controllers are configured as shown in the following table.

You need to ensure that the KDC support for claims, compound authentication, and kerberos armoring setting is enforced in the child1.contoso.com domain.

Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. All domain controllers run Windows Server 2012 R2. The domain contains two domain controllers.

The domain controllers are configured as shown in the following table.

You configure a user named User1 as a delegated administrator of DC10.

You need to ensure that User1 can log on to DC10 if the network link between the Main site and the Branch site fails.

What should you do?

Reveal Solution Hide Solution

Your company has offices in Montreal, New York, and Amsterdam.

The network contains an Active Directory forest named contoso.com. An Active Directory site exists for each office. All of the sites connect to each other by using the DEFAULTIPSITELINK site link.

You need to ensure that only between 20:00 and 08:00, the domain controllers in the Montreal office replicate the Active Directory changes to the domain controllers in the Amsterdam office.

The solution must ensure that the domain controllers in the Montreal and the New York offices can replicate the Active Directory changes any time of day.

What should you do?

Reveal Solution Hide Solution

HOTSPOT

Your network contains an Active Directory domain named contoso.com. The domain contains two member servers named Server1 and Server2. All servers run Windows Server 2012 R2.

Server1 and Server2 have the Network Load Balancing (NLB) feature installed. The servers are configured as nodes in an NLB cluster named Cluster1. Both servers connect to the same switch.

Cluster1 hosts a secure web Application named WebApp1. WebApp1 saves user state information in a central database.

You need to ensure that the connections to WebApp1 are distributed evenly between the nodes. The solution must minimize port flooding.

What should you configure? To answer, configure the appropriate affinity and the appropriate mode for Cluster1 in the answer area.

Reveal Solution Hide Solution

Your network contains two Web servers named Server1 and Server2. Both servers run Windows Server 2012 R2.

Server1 and Server2 are nodes in a Network Load Balancing (NLB) cluster. The NLB cluster contains an application named App1 that is accessed by using the URL http://app1.contoso.com. You plan to perform maintenance on Server1.

You need to ensure that all new connections to App1 are directed to Server2. The solution must not disconnect the existing connections to Server1.

What should you run?

Reveal Solution Hide Solution

Your network contains two servers named HV1 and HV2. Both servers run Windows Server 2012 R2 and have the Hyper-V server role installed. HV1 hosts 25 virtual machines. The virtual machine configuration files and the virtual hard disks are stored in D:VM. You shut down all of the virtual machines on HV1. You copy D:VM to D:VM on HV2. You need to start all of the virtual machines on HV2. You want to achieve this goal by using the minimum amount of administrative effort.

What should you do?

Reveal Solution Hide Solution

HOTSPOT

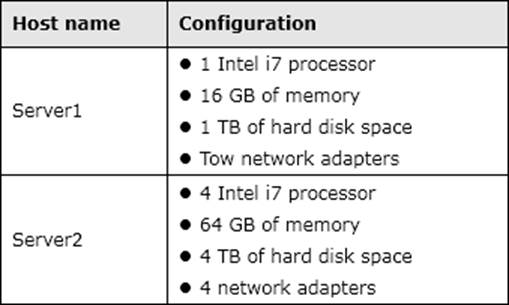

Your network contains two Hyper-V hosts that are configured as shown in the following table.

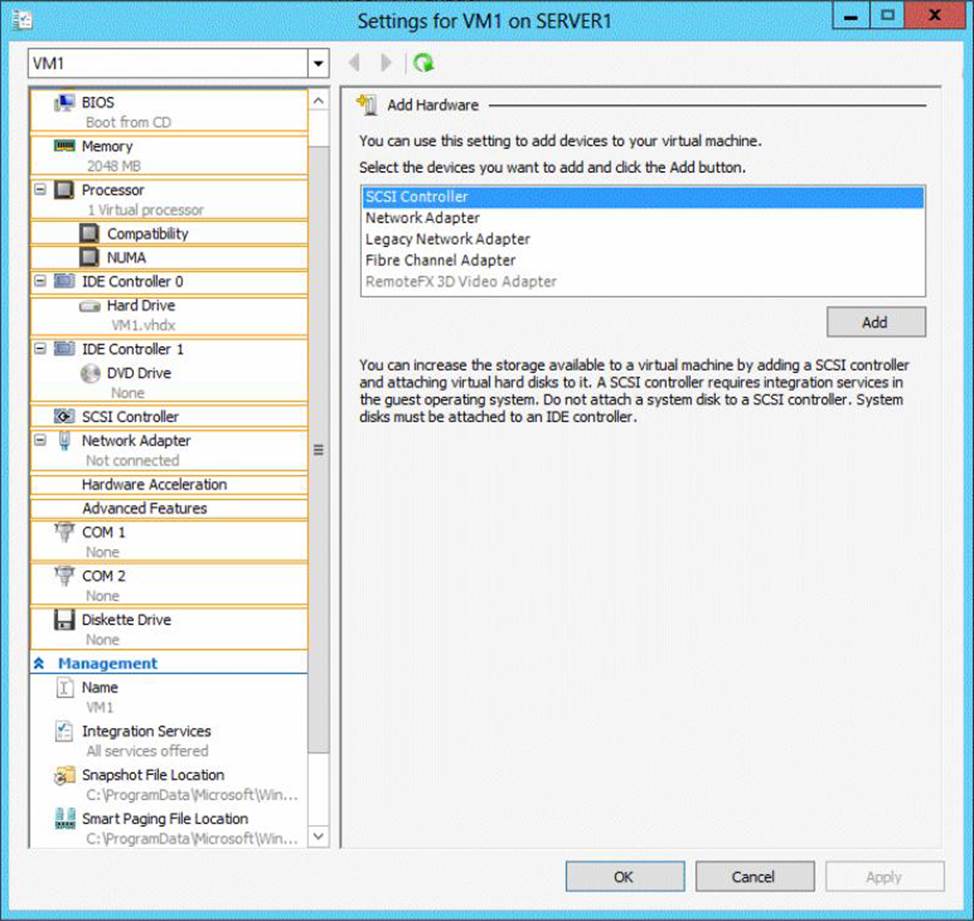

You create a virtual machine on Server1 named VM1. You plan to export VM1 from Server1 and import VM1 to Server2.

You need to ensure that you can start the imported copy of VM1 from snapshots.

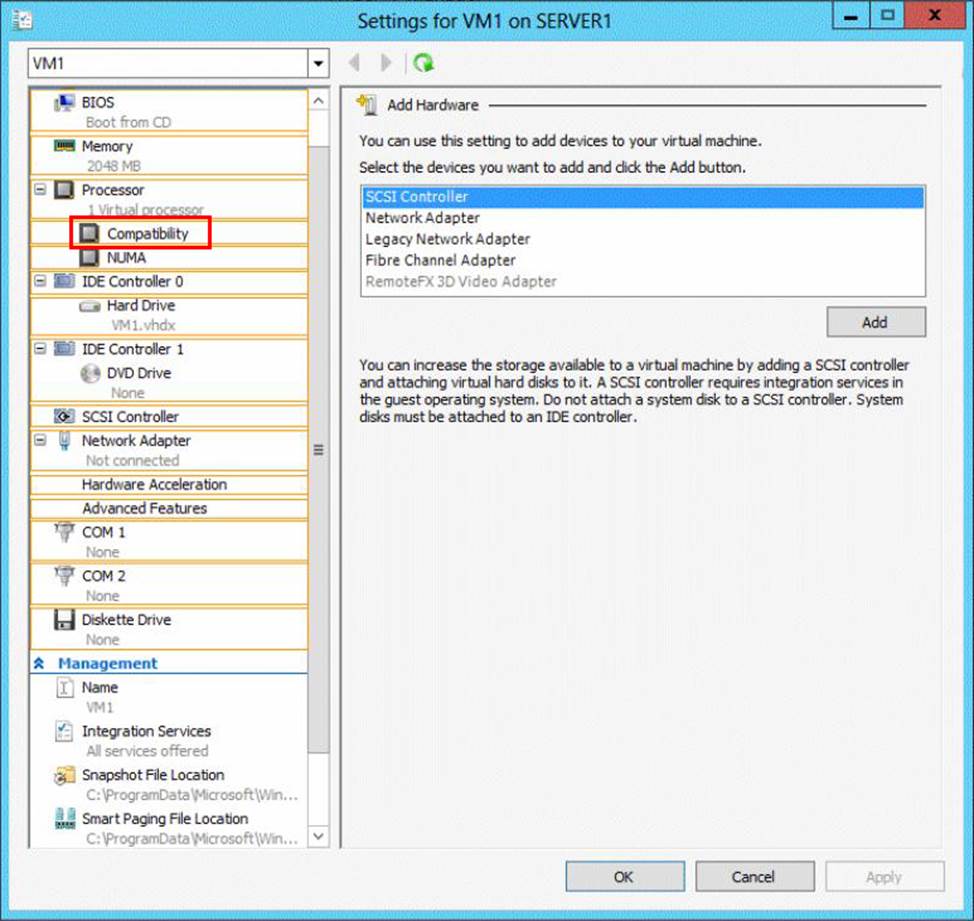

What should you configure on VM1? To answer, select the appropriate node in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Note:

* If the CPUs are from the same manufacturer but not from the same type, you may need to use Processor Compatibility.

(Incorrect) The network adapter is already disconnected.

DRAG DROP

Your network contains an Active Directory domain named contoso.com. The domain contains four member

servers named Server1, Server2, Servers, and Server4. All servers run Windows Server 2012 R2.

Server1 and Server2 are located in a site named Site1. Server3 and Server4 are located in a site named Site2. The servers are configured as nodes in a failover cluster named Cluster1. Cluster1 is configured to use the Node Majority quorum configuration. You need to ensure that Server1 is the only server in Site1 that can vote to maintain quorum.

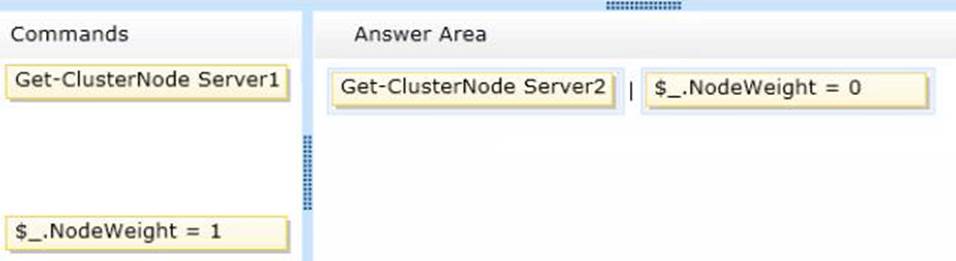

What should you run from Windows PowerShell? To answer, drag the appropriate commands to the correct location. Each command may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

We remove Server2 from quorum vote by setting it’s NodeWeight to 0.

NodeWeight settings are used during quorum voting to support disaster recovery and multi-subnet scenarios for AlwaysOn Availability Groups and SQL Server Failover Cluster Instances.

Example (Powershell)

The following example changes the NodeWeight setting to remove the quorum vote for the “AlwaysOnSrv1” node.

Import-Module FailoverClusters

$node = “AlwaysOnSrv1”

(Get-ClusterNode $node).NodeWeight = 0

Reference: Configure Cluster Quorum NodeWeight Settings

Your network contains an Active Directory domain named contoso.com. The domain contains two member servers named Server1 and Server2. All servers run Windows Server 2012 R2.

Server1 and Server2 have the Failover Clustering feature installed. The servers are configured as nodes in a failover cluster named Cluster1. Cluster1 contains a cluster disk resource.

A developer creates an application named App1. App1 is NOT a cluster-aware application. App1 runs as a service. App1 stores data on the cluster disk resource.

You need to ensure that App1 runs in Cluster1. The solution must minimize development effort.

Which cmdlet should you run?

Reveal Solution Hide Solution

HOTSPOT

Your network contains an Active Directory domain named contoso.com. You have a failover cluster named Cluster1 that contains two nodes named Server1 and Server2. Both servers run Windows Server 2012 R2 and have the Hyper-V server role installed. You plan to create two virtual machines that will run an application named App1. App1 will store data on a virtual hard drive named App1data.vhdx. App1data.vhdx will be shared by both virtual machines.

The network contains the following shared folders:

• An SMB file share named Share1 that is hosted on a Scale-Out File Server.

• An SMB file share named Share2 that is hosted on a standalone file server.

• An NFS share named Share3 that is hosted on a standalone file server.

You need to ensure that both virtual machines can use App1data.vhdx simultaneously.

What should you do? To answer, select the appropriate configurations in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* Simultaneous access to vhd can only be done by scale-out file server

* Create your VHDX data files to be shared as fixed-size or dynamically expanding, on the disk where you manually attached the Shared VHDX filter. Old VHD files are not allowed. Differencing disks are not allowed.

Reference: Windows Server 2012 R2 Storage: Step-by-step with Storage Spaces, SMB Scale-Out and Shared VHDX (Virtual)

HOTSPOT

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2. Server1 has the Active Directory Certificate Services server role installed and configured.

For all users, you are deploying smart cards for logon. You are using an enrollment agent to enroll the smart card certificates for the users.

You need to configure the Contoso Smartcard Logon certificate template to support the use of the enrollment agent.

Which setting should you modify? To answer, select the appropriate setting in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

/ In application policy drop-down list select Certificate Request Agent.

/ The Issuance Requirements Tab

* Application policy. This option specifies the application policy that must be included in the signing certificate used to sign the certificate request. It is enabled when Policy type required in signature is set to either Application policy or Both application and issuance policy.

Reference: Administering Certificate Templates

http://technet.microsoft.com/en-us/library/cc725621(v=WS.10) .aspx

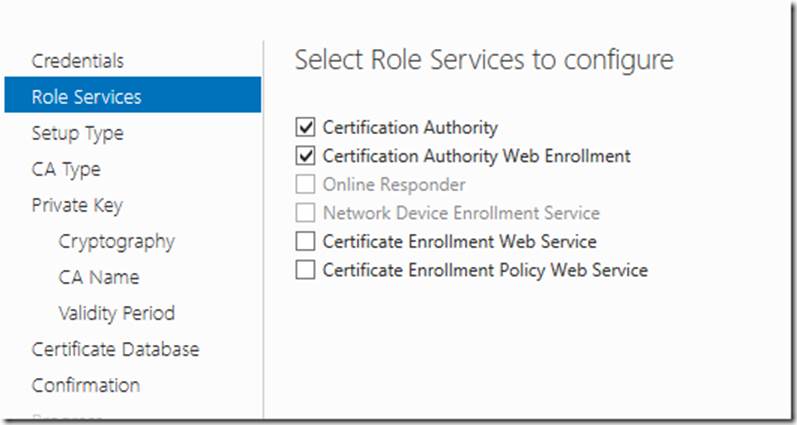

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2.

The system properties of Server1 are shown in the exhibit. (Click the Exhibit button.)

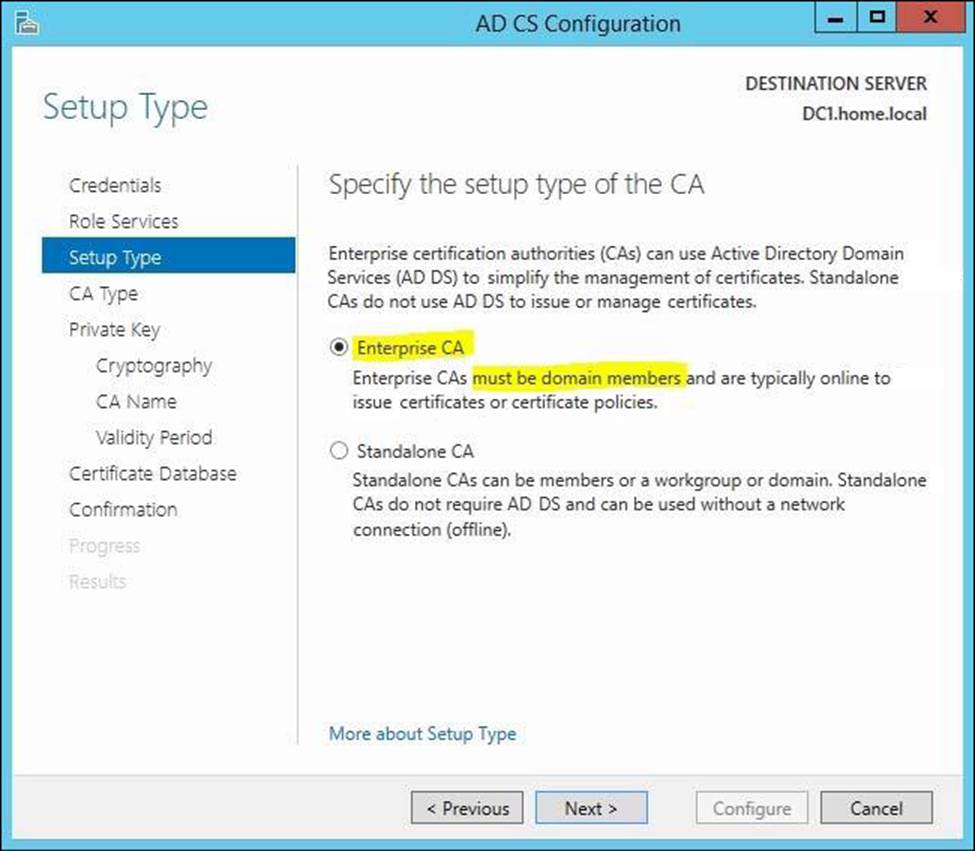

You need to configure Server1 as an enterprise subordinate certification authority (CA).

What should you do first?

Reveal Solution Hide Solution

Your network contains a perimeter network and an internal network. The internal network contains an Active Directory Federation Services (AD FS) 2.1 infrastructure. The infrastructure uses Active Directory as the attribute store.

You plan to deploy a federation server proxy to a server named Server2 in the perimeter network. You need to identify which value must be included in the certificate that is deployed to Server2.

What should you identify?

Reveal Solution Hide Solution

Your network contains a perimeter network and an internal network. The internal network contains an Active Directory Federation Services (AD FS) 2.1 infrastructure. The infrastructure uses Active Directory as the attribute store.

You plan to deploy a federation server proxy to a server named Server2 in the perimeter network. You need to identify which value must be included in the certificate that is deployed to Server2.

What should you identify?

Reveal Solution Hide Solution

Your network contains a perimeter network and an internal network. The internal network contains an Active Directory Federation Services (AD FS) 2.1 infrastructure. The infrastructure uses Active Directory as the attribute store.

You plan to deploy a federation server proxy to a server named Server2 in the perimeter network. You need to identify which value must be included in the certificate that is deployed to Server2.

What should you identify?

Reveal Solution Hide Solution

Your network contains a perimeter network and an internal network. The internal network contains an Active Directory Federation Services (AD FS) 2.1 infrastructure. The infrastructure uses Active Directory as the attribute store.

You plan to deploy a federation server proxy to a server named Server2 in the perimeter network. You need to identify which value must be included in the certificate that is deployed to Server2.

What should you identify?

Reveal Solution Hide Solution

Your network contains a perimeter network and an internal network. The internal network contains an Active Directory Federation Services (AD FS) 2.1 infrastructure. The infrastructure uses Active Directory as the attribute store.

You plan to deploy a federation server proxy to a server named Server2 in the perimeter network. You need to identify which value must be included in the certificate that is deployed to Server2.

What should you identify?

Reveal Solution Hide Solution

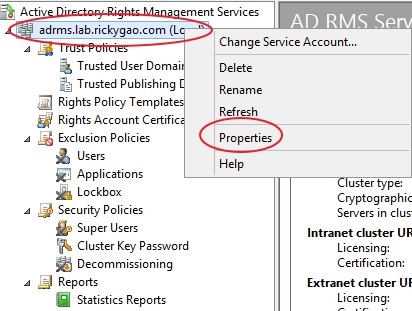

Your network contains an Active directory forest named contoso.com. The forest contains two child domains named east.contoso.com and west.contoso.com.

You install an Active Directory Rights Management Services (AD RMS) cluster in each child domain.

You discover that all of the users in the contoso.com forest are directed to the AD RMS cluster in east.contoso.com.

You need to ensure that the users in west.contoso.com are directed to the AD RMS cluster in west.contoso.com and that the users in east.contoso.com are directed to the AD RMS cluster in east.contoso.com.

What should you do?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2. From Server Manager, you install the Active Directory Certificate Services server role on Server1. A domain administrator named Admin1 logs on to Server1.

When Admin1 runs the Certification Authority console, Admin1 receive the following error message.

You need to ensure that when Admin1 opens the Certification Authority console on Server1, the error message does not appear.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com.

A previous administrator implemented a Proof of Concept installation of Active Directory Rights Management Services (AD RMS).

After the proof of concept was complete, the Active Directory Rights Management Services server role was removed.

You attempt to deploy AD RMS.

During the configuration of AD RMS, you receive an error message indicating that an existing AD RMS Service Connection Point (SCP) was found.

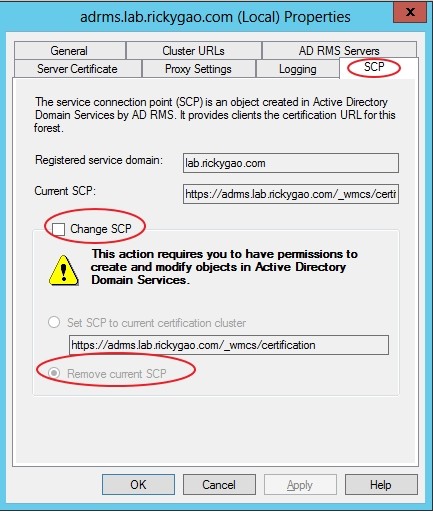

You need to remove the existing AD RMS SCP.

Which tool should you use?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a member server named Server1 that has the Active Directory Federation Services server role installed. All servers run Windows Server 2012.

You complete the Active Directory Federation Services Configuration Wizard on Server1.

You need to ensure that client devices on the internal network can use Workplace Join.

Which two actions should you perform on Server1? (Each correct answer presents part of the solution. Choose two.)

Reveal Solution Hide Solution

DRAG DROP

Your network contains an Active Directory domain named contoso.com.

You need to ensure that third-party devices can use Workplace Join to access domain resources on the Internet.

Which four actions should you perform in sequence? To answer, move the appropriate four actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Note:

* Checklist: Deploying a Federation Server Farm include:

(Box 1) Enroll a Secure Socket Layer (SSL) certificate for AD FS.

(Box 2) Install the AD FS role service.

(Box 3, box 4) Optional step: Configure a federation server with Device Registration Service (DRS).

Box 3: To enable Device Registration Service.

On your federation server, open a Windows PowerShell command window and type:

Enable-AdfsDeviceRegistration

Repeat this step on each federation farm node in your AD FS farm..

Box 4: Update the Web Application Proxy configuration

The Device Registration Service will be available through the Web Application Proxy once it is enabled on a federation server. You may need to complete this procedure to update the Web Application Proxy configuration if it was deployed prior to enabling the Device Registration Service.

* Workplace Join is made possible by the Device Registration Service (DRS) that is included with the Active Directory Federation Role in Windows Server 2012 R2. When a device is Workplace Joined, the DRS provisions a device object in Active Directory and sets a certificate on the consumer device that is used to represent the device identity. The DRS is meant to be both internal and external facing. Companies that deploy both DRS and the Web Application Proxy will be able to Workplace Join devices from any internet connected location.

Reference: Deploying a Federation Server Farm.

HOTSPOT

Your company has a primary data center and a disaster recovery data center. The network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2. Server1 is located in the primary data center.

Server1 has an enterprise root certification authority (CA) for contoso.com.

You deploy another server named Server2 to the disaster recovery data center.

You plan to configure Server2 as a secondary certificate revocation list (CRL) distribution point.

You need to configure Server2 as a CRL distribution point (CDP).

Which tab should you use to configure the required CDP entry? To answer, select the appropriate tab in

the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

To configure the CDP and AIA extensions on CA1

HOTSPOT

Your company has a primary data center and a disaster recovery data center. The network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2. Server1 is located in the primary data center.

Server1 has an enterprise root certification authority (CA) for contoso.com.

You deploy another server named Server2 to the disaster recovery data center.

You plan to configure Server2 as a secondary certificate revocation list (CRL) distribution point.

You need to configure Server2 as a CRL distribution point (CDP).

Which tab should you use to configure the required CDP entry? To answer, select the appropriate tab in

the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

To configure the CDP and AIA extensions on CA1

HOTSPOT

Your company has a primary data center and a disaster recovery data center. The network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2. Server1 is located in the primary data center.

Server1 has an enterprise root certification authority (CA) for contoso.com.

You deploy another server named Server2 to the disaster recovery data center.

You plan to configure Server2 as a secondary certificate revocation list (CRL) distribution point.

You need to configure Server2 as a CRL distribution point (CDP).

Which tab should you use to configure the required CDP entry? To answer, select the appropriate tab in

the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

To configure the CDP and AIA extensions on CA1

HOTSPOT

Your company has a primary data center and a disaster recovery data center. The network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2. Server1 is located in the primary data center.

Server1 has an enterprise root certification authority (CA) for contoso.com.

You deploy another server named Server2 to the disaster recovery data center.

You plan to configure Server2 as a secondary certificate revocation list (CRL) distribution point.

You need to configure Server2 as a CRL distribution point (CDP).

Which tab should you use to configure the required CDP entry? To answer, select the appropriate tab in

the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

To configure the CDP and AIA extensions on CA1

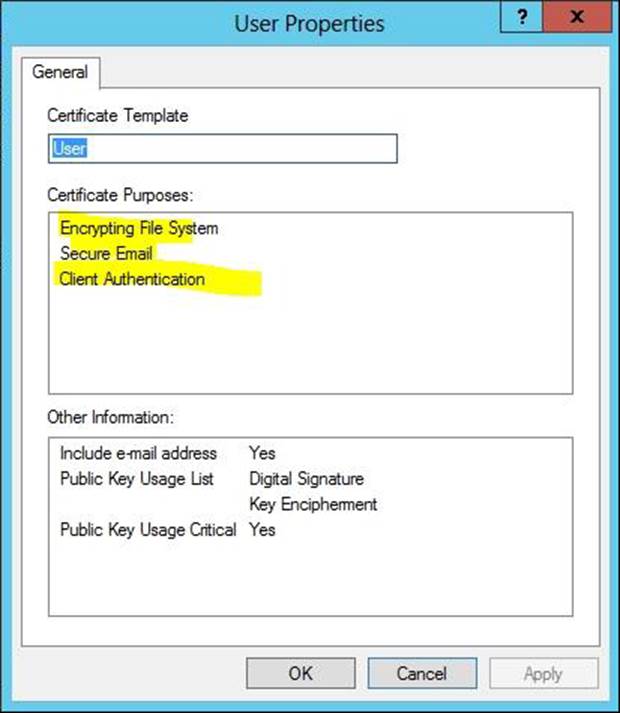

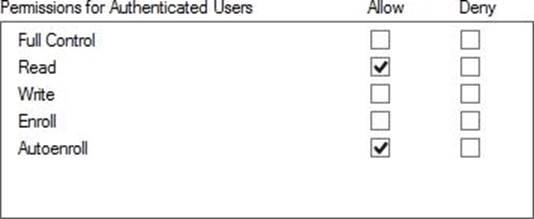

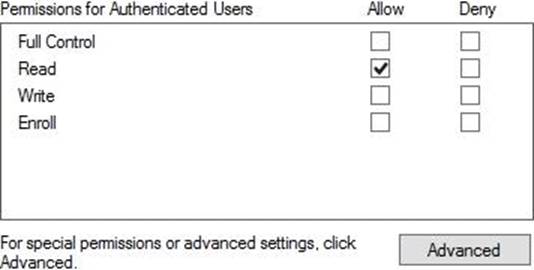

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2. Server1 has the Active Directory Certificate Services server role installed and is configured as an enterprise certification authority (CA).

You need to ensure that all of the users in the domain are issued a certificate that can be used for the following purposes:

• Email security

• Client authentication

• Encrypting File System (EFS)

Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server3 that runs Windows Server 2012 R2 and has the DHCP Server role installed.

DHCP is configured as shown in the exhibit. (Click the Exhibit button.)

Scope1, Scope2, and Scope3 are configured to assign the IP addresses of two DNS servers to DHCP clients. The remaining scopes are NOT configured to assign IP addresses of DNS servers to DHCP clients.

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DNS Server role installed. Server1 has a zone named contoso.com.

The zone is configured as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DNS Server role installed. Server1 has a zone named contoso.com.

The zone is configured as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DNS Server role installed. Server1 has a zone named contoso.com.

The zone is configured as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DNS Server role installed. Server1 has a zone named contoso.com.

The zone is configured as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DNS Server role installed. Server1 has a zone named contoso.com.

The zone is configured as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DNS Server role installed. Server1 has a zone named contoso.com.

The zone is configured as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that only Scope1, Scope3, and Scope5 assign the same DNS servers to DHCP clients. The solution must minimize administrative effort.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server

named Server1 that runs Windows Server 2012 R2 and has the DHCP Server role installed.

An administrator installs the IP Address Management (IPAM) Server feature on a server named Server2. The administrator configures IPAM by using Group Policy based provisioning and starts server discovery. You plan to create Group Policies for IPAM provisioning. You need to identify which Group Policy object (GPO) name prefix must be used for IPAM Group Policies.

What should you do on Server2?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2 and has the DHCP Server server role installed.

You need to create an IPv6 scope on Server1. The scope must use an address space that is reserved for private networks. The addresses must be routable.

Which IPV6 scope prefix should you use?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC1 that runs Windows Server 2012 R2. DC1 has the DNS Server role installed.

The network contains client computers that run either Linux, Windows 7, or Windows 8.1.

You have a standard primary zone named adatum.com as shown in the exhibit. (Click the Exhibit button.)

You plan to configure Name Protection on all of the DHCP servers. You need to configure the adatum.com zone to support Name Protection.

Which two configurations should you perform from DNS Manager? (Each correct answer presents part of

the solution. Choose two.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC1 that runs Windows Server 2012 R2. DC1 has the DNS Server role installed.

The network contains client computers that run either Linux, Windows 7, or Windows 8.1.

You have a standard primary zone named adatum.com as shown in the exhibit. (Click the Exhibit button.)

You plan to configure Name Protection on all of the DHCP servers. You need to configure the adatum.com zone to support Name Protection.

Which two configurations should you perform from DNS Manager? (Each correct answer presents part of

the solution. Choose two.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC1 that runs Windows Server 2012 R2. DC1 has the DNS Server role installed.

The network contains client computers that run either Linux, Windows 7, or Windows 8.1.

You have a standard primary zone named adatum.com as shown in the exhibit. (Click the Exhibit button.)

You plan to configure Name Protection on all of the DHCP servers. You need to configure the adatum.com zone to support Name Protection.

Which two configurations should you perform from DNS Manager? (Each correct answer presents part of

the solution. Choose two.)

Reveal Solution Hide Solution

HOTSPOT

Your network contains an Active Directory domain named contoso.com. The domain contains two servers named Server1 and Server2. All servers run Windows Server 2012 R2. You install the DHCP Server role on both servers.

On Server1, you have the DHCP scope configured as shown in the exhibit. (Click the Exhibit button.)

You need to configure the scope to be load-balanced across Server1 and Server2.

What Windows PowerShell cmdlet should you run on Server1? To answer, select the appropriate options in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* Add-DhcpServerv4Failover

The Add-DhcpServerv4Failover cmdlet adds a new IPv4 failover relationship to a Dynamic Host Configuration Protocol (DHCP) server service.

/ -PartnerServer<String>

Specifies the IPv4 address, or host name, of the partner DHCP server service with which the failover relationship is created.

/ -ScopeId<IPAddress[]>

Specifies the scope identifiers, in IPv4 address format, which are to be added to the failover relationship.

* Example:

Reference: Add-DhcpServerv4Failover

HOTSPOT

Your network contains an Active Directory domain named contoso.com. The domain contains two DHCP servers named Server1 and Server2. Both servers have multiple IPv4 scopes. Server1 and Server2 are used to assign IP addresses for the network IDs of 172.20.0.0/16 and 131.107.0.0/16.

You install the IP Address Management (IPAM) Server feature on a server named IPAM1 and configure IPAM1 to manage Server1 and Server2.

Some users from the 172.20.0.0 network report that they occasionally receive an IP address conflict error message.

You need to identify whether any scopes in the 172.20.0.0 network ID conflict with one another.

What Windows PowerShell cmdlet should you run? To answer, select the appropriate options in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Type the following command at a Windows PowerShell prompt and press ENTER:

PS C:> Get-IpamRange CAddressFamily IPv4 CAddressCategory Private|where-object {$_.Overlapping C

eq “True”} The previous command will display any overlapping IP address ranges, if they exist. Reference:

Walkthrough: Demonstrate IPAM in Windows Server 2012 R2.

Your network contains two DNS servers named DNS1 and DNS2 that run Windows Server 2012 R2. DNS1 has a primary zone named contoso.com. DNS2 has a secondary copy of the contoso.com zone. You need to log the zone transfer packets sent between DNS1 and DNS2.

What should you configure?

Reveal Solution Hide Solution

Your network contains an Active Directory forest named contoso.com.

Users frequently access the website of an external partner company. The URL of the website is http:// partners.adatum.com. The partner company informs you that it will perform maintenance on its Web server and that the IP

addresses of the Web server will change.

After the change is complete, the users on your internal network report that they fail to access the website.

However, some users who work from home report that they can access the website. You need to ensure that your DNS servers can resolve partners.adatum.com to the correct IP address

immediately.

What should you do?

Reveal Solution Hide Solution

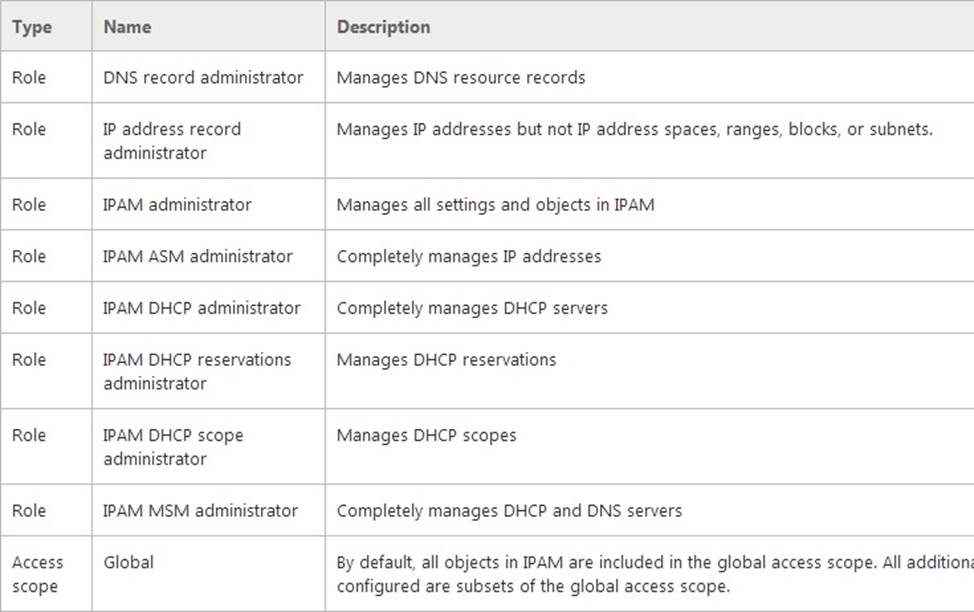

You have a server named Server1. You install the IP Address Management (IPAM) Server feature on Server1. You need to provide a user named User1 with the ability to set the access scope of all the DHCP servers that are managed by IPAM. The solution must use the principle of least privilege.

Which user role should you assign to User1?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC1 and a member server named Server1. Server1 has the IP Address Management (IPAM) Server feature installed. On Dc1, you configure Windows Firewall to allow all of the necessary inbound ports for IPAM.

On Server1, you open Server Manager as shown in the exhibit. (Click the Exhibit button.)

You need to ensure that you can use IPAM on Server1 to manage DNS on DC1.

What should you do?

Reveal Solution Hide Solution

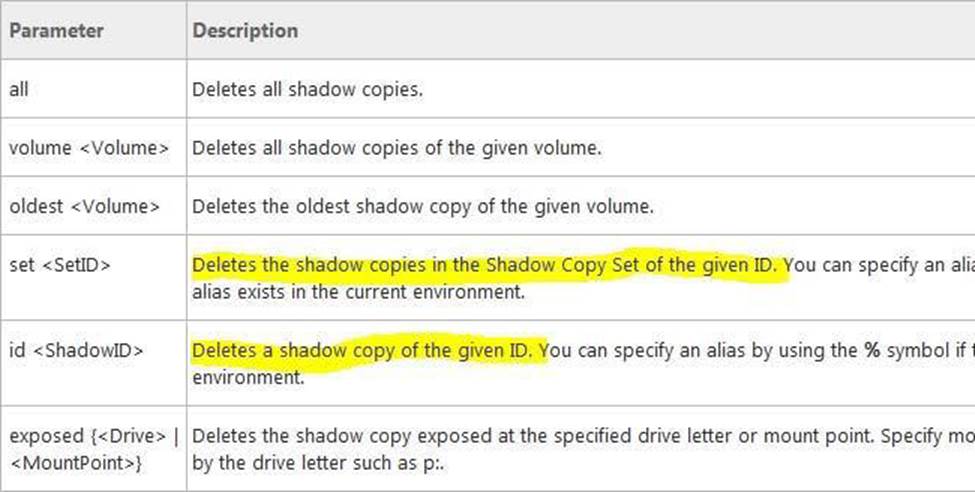

You have a server named SCI that runs a Server Core Installation of Windows Server 2012 R2. Shadow copies are enabled on all volumes.

You need to delete a specific shadow copy. The solution must minimize server downtime.

Which tool should you use?

Reveal Solution Hide Solution

You have 20 servers that run Windows Server 2012 R2.

You need to create a Windows PowerShell script that registers each server in Microsoft Azure Backup and sets an encryption passphrase.

Which two PowerShell cmdlets should you run in the script? (Each correct answer presents part of the solution. Choose two.)

Reveal Solution Hide Solution

You have 30 servers that run Windows Server 2012 R2.

All of the servers are backed up daily by using Windows Azure Backup.

You need to perform an immediate backup of all the servers to Windows Azure Backup.

Which Windows PowerShell cmdlets should you run on each server?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2 and is used for testing.

A developer at your company creates and installs an unsigned kernel-mode driver on Server1. The developer reports that Server1 will no longer start.

You need to ensure that the developer can test the new driver. The solution must minimize the amount of data loss.

Which Advanced Boot Option should you select?

Reveal Solution Hide Solution

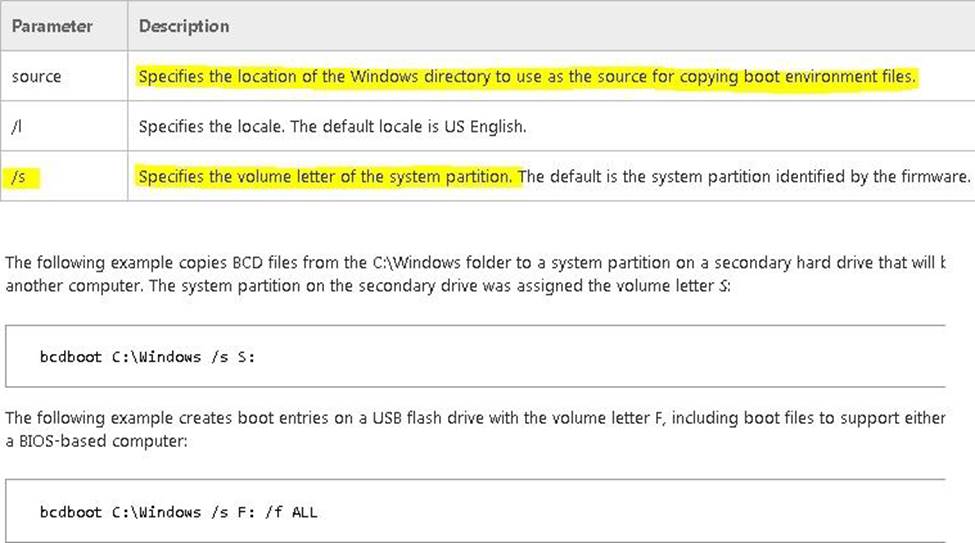

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2.

When you install a custom Application on Server1 and restart the server, you receive the following error message: "The Boot Configuration Data file is missing some required information.

File: BootBCD

Error code: 0x0000034."

You start Server1 by using Windows RE. You need to ensure that you can start Windows Server 2012 R2 on Server1.

Which tool should you use?

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2. Server1 is backed up by using Windows Server Backup.

The backup configuration is shown in the exhibit. (Click the Exhibit button.)

You discover that only the last copy of the backup is maintained. You need to ensure that multiple backup copies are maintained.

What should you do?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains four servers named Server1, Server2, Server3, and Server4 that run Windows Server 2012 R2.

All servers have the Hyper-V server role and the Failover Clustering feature installed.

You need to replicate virtual machines from Cluster1 to Cluster2.

Which three actions should you perform? (Each correct answer presents part of the solution. Choose three.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains four servers named Server1, Server2, Server3, and Server4 that run Windows Server 2012 R2.

All servers have the Hyper-V server role and the Failover Clustering feature installed.

You need to replicate virtual machines from Cluster1 to Cluster2.

Which three actions should you perform? (Each correct answer presents part of the solution. Choose three.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains four servers named Server1, Server2, Server3, and Server4 that run Windows Server 2012 R2.

All servers have the Hyper-V server role and the Failover Clustering feature installed.

You need to replicate virtual machines from Cluster1 to Cluster2.

Which three actions should you perform? (Each correct answer presents part of the solution. Choose three.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains four servers named Server1, Server2, Server3, and Server4 that run Windows Server 2012 R2.

All servers have the Hyper-V server role and the Failover Clustering feature installed.

You need to replicate virtual machines from Cluster1 to Cluster2.

Which three actions should you perform? (Each correct answer presents part of the solution. Choose three.)

Reveal Solution Hide Solution

You have a server named Server1 that runs Windows Server 2012 R2. Each day, Server1 is backed up fully to an external disk. On Server1, the disk that contains the operating system fails. You replace the failed disk. You need to perform a bare-metal recovery of Server1 by using the Windows Recovery Environment (Windows RE).

What should you do?

Reveal Solution Hide Solution

You have a virtual machine named VM1 that runs on a host named Host1. You configure VM1 to replicate to another host named Host2. Host2 is located in the same physical location as Host1.

You need to add an additional replica of VM1. The replica will be located in a different physical site.

What should you do?

Reveal Solution Hide Solution

Your network contains two servers named Server1 and Server2 that run Windows Server 2012 R2.

Both servers have the Hyper-V server role installed. Server1 and Server2 are located in different offices. The offices connect to each other by using a high-latency WAN link.

Server1 hosts a virtual machine named VM1.

You need to ensure that you can start VM1 on Server2 if Server1 fails. The solution must minimize hardware costs.

What should you do?

Reveal Solution Hide Solution

You have a Hyper-V host named Server1 that runs Windows Server 2012 R2. Server1 contains a virtual machine named VM1 that runs Windows Server 2012 R2. You fail to start VM1 and you suspect that the boot files on VM1 are corrupt. On Server1, you attach the virtual hard disk (VHD) of VM1 and you assign the VHD a drive letter of F. You need to repair the corrupt boot files on VM1.

What should you run?

Reveal Solution Hide Solution

DRAG DROP

Your network contains an Active Directory domain named contoso.com. The domain contains a file server named Server1. All servers run Windows Server 2012 R2.

All domain user accounts have the Division attribute automatically populated as part of the user provisioning process. The Support for Dynamic Access Control and Kerberos armoring policy is enabled for the domain.

You need to control access to the file shares on Server1 based on the values in the Division attribute and the Division resource property.

Which three actions should you perform in sequence?

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* First create a claim type for the property, then create a reference resource property that points back to the claim. Finally set the classification value on the folder.

* Configure the components and policy

DRAG DROP

Your network contains an Active Directory domain named contoso.com. The domain contains a file server named Server1. All servers run Windows Server 2012 R2.

All domain user accounts have the Division attribute automatically populated as part of the user provisioning process. The Support for Dynamic Access Control and Kerberos armoring policy is enabled for the domain.

You need to control access to the file shares on Server1 based on the values in the Division attribute and the Division resource property.

Which three actions should you perform in sequence?

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* First create a claim type for the property, then create a reference resource property that points back to the claim. Finally set the classification value on the folder.

* Configure the components and policy

DRAG DROP

Your network contains an Active Directory domain named contoso.com. The domain contains a file server named Server1. All servers run Windows Server 2012 R2.

All domain user accounts have the Division attribute automatically populated as part of the user provisioning process. The Support for Dynamic Access Control and Kerberos armoring policy is enabled for the domain.

You need to control access to the file shares on Server1 based on the values in the Division attribute and the Division resource property.

Which three actions should you perform in sequence?

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* First create a claim type for the property, then create a reference resource property that points back to the claim. Finally set the classification value on the folder.

* Configure the components and policy

DRAG DROP

Your network contains an Active Directory domain named contoso.com. The domain contains a file server named Server1. All servers run Windows Server 2012 R2.

All domain user accounts have the Division attribute automatically populated as part of the user provisioning process. The Support for Dynamic Access Control and Kerberos armoring policy is enabled for the domain.

You need to control access to the file shares on Server1 based on the values in the Division attribute and the Division resource property.

Which three actions should you perform in sequence?

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* First create a claim type for the property, then create a reference resource property that points back to the claim. Finally set the classification value on the folder.

* Configure the components and policy

You have a server named LON-DC1 that runs Windows Server 2012 R2.

An iSCSI virtual disk named VirtualiSCSI1.vhd exists on LON-DC1 as shown in the exhibit. (Click the Exhibit button.)

You create a new iSCSI virtual disk named VirtualiSCSI2.vhd by using the existing itgt iSCSI target. VirtualiSCSIl.vhd is removed from LON-DC1. You need to assign VirtualiSCSI2.vhd a logical unit value of 0.

What should you do?

Reveal Solution Hide Solution

HOTSPOT

You have a file server named Server1 that runs Windows Server 2012 R2. You need to ensure that you can use the NFS Share – Advanced option from the New Share Wizard in Server Manager.

Which two role services should you install? To answer, select the appropriate two role services in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

*File Server Resource Manager Role

File Server Resource Manager is a set of features that allow you to manage and classify data that is stored on file servers.

Note: NFS Share C Advanced

This advanced profile offers additional options to configure a NFS file share.

Set the folder owners for access-denied assistance

Configure default classification of data in the folder for management and access policies

Enable quotas

Reference: How to share a folder in Windows Server 2012.

DRAG DROP

Your network contains an Active Directory domain named contoso.com. All file servers in the domain run Windows Server 2012 R2. The computer accounts of the file servers are in an organizational unit (OU) named OU1. A Group Policy object (GPO) named GPO1 is linked to OU1. You plan to modify the NTFS permissions for many folders on the file servers by using central access policies. You need to identify any users who will be denied access to resources that they can currently access once the new permissions are implemented.

In which order should you Perform the five actions?

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* Configure a central access rule

* Configure a central access policy (CAP) (with help of central access rules)

* Deploy the central access policy (through GPO)

* Modify security settings

* Check the result

Reference: Deploy a Central Access Policy (Demonstration Steps)

http://technet.microsoft.com/en-us/library/hh846167.aspx

Your network contains 20 iSCSI storage appliances that will provide storage for 50 Hyper-V hosts running Windows Server 2012 R2.

You need to configure the storage for the Hyper-V hosts. The solution must minimize administrative effort.

What should you do first?

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. The domain contains a file server named Server1 that runs Windows Server 2012 R2. All client computers run Windows 8. You need to configure a custom Access Denied message that will be displayed to users when they are denied access to folders or files on Server1.

What should you configure?

Reveal Solution Hide Solution

DRAG DROP

You have a server that runs Windows Server 2012 R2. You create a new work folder named Share1.

You need to configure Share1 to meet the following requirements:

• Ensure that all synchronized copies of Share1 are encrypted.

• Ensure that clients synchronize to Share1 every 30 minutes.

• Ensure that Share1 inherits the NTFS permissions of the parent folder.

Which cmdlet should you use to achieve each requirement? To answer, drag the appropriate cmdlets to the correct requirements. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

* (box 1) Set-SyncShare

The Set-SyncShare cmdlet modifies the settings for a sync share.

/ parameter: -RequireEncryption<Boolean>

Indicates whether the sync server requests that the contents of Work Folders be encrypted on each PC and device that accesses the sync share.

* (box 2) Set-SyncServerSettings

Parameter: -MinimumChangeDetectionMins<UInt32>

Specifies the time, in minutes, before the Sync Share server detects changes on devices and syncs the client and server.

* (box 3): Example: Modify a sync share to enable inherited permissions

This command modifies settings on the share named Share01, and sets KeepParentFolderPermission to enable the share to inherit permissions from the parent folder.

Windows PowerShell

PS C:> Set-SyncShare Share01 -KeepParentFolderPermission

Reference: Set-SyncShare; Set-SyncServerSettings

HOTSPOT

Your network contains an Active Directory domain named contoso.com. All client computers run Windows 8 Enterprise. You have a remote site that only contains client computers. All of the client computer accounts are located in an organizational unit (OU) named Remote1. A Group Policy object (GPO) named GPO1 is linked to the Remote1 OU. You need to configure BranchCache for the remote site.

Which two settings should you configure in GPO1? To answer, select the two appropriate settings in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

BranchCache is disabled by default on client computers.

Take the following steps to enable BranchCache on client computers:

HOTSPOT

Your network contains an Active Directory domain named contoso.com. All client computers run Windows 8 Enterprise. You have a remote site that only contains client computers. All of the client computer accounts are located in an organizational unit (OU) named Remote1. A Group Policy object (GPO) named GPO1 is linked to the Remote1 OU. You need to configure BranchCache for the remote site.

Which two settings should you configure in GPO1? To answer, select the two appropriate settings in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

BranchCache is disabled by default on client computers.

Take the following steps to enable BranchCache on client computers:

HOTSPOT

Your network contains an Active Directory domain named contoso.com. All client computers run Windows 8 Enterprise. You have a remote site that only contains client computers. All of the client computer accounts are located in an organizational unit (OU) named Remote1. A Group Policy object (GPO) named GPO1 is linked to the Remote1 OU. You need to configure BranchCache for the remote site.

Which two settings should you configure in GPO1? To answer, select the two appropriate settings in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

BranchCache is disabled by default on client computers.

Take the following steps to enable BranchCache on client computers:

HOTSPOT

Your network contains an Active Directory domain named contoso.com. All client computers run Windows 8 Enterprise. You have a remote site that only contains client computers. All of the client computer accounts are located in an organizational unit (OU) named Remote1. A Group Policy object (GPO) named GPO1 is linked to the Remote1 OU. You need to configure BranchCache for the remote site.

Which two settings should you configure in GPO1? To answer, select the two appropriate settings in the answer area.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

BranchCache is disabled by default on client computers.

Take the following steps to enable BranchCache on client computers:

You have a server named Server1 that runs Windows Server 2012 R2.

The storage on Server1 is configured as shown in the following table.

You plan to implement Data Deduplication on Server1.

You need to identify on which drives you can enable Data Deduplication.

Which three drives should you identify? (Each correct answer presents part of the solution. Choose three.)

Reveal Solution Hide Solution

Your network contains an Active Directory domain named contoso.com. All servers run Windows Server 2012 R2.

You are creating a central access rule named TestFinance that will be used to audit members of the Authenticated Users group for access failure to shared folders in the finance department.

You need to ensure that access requests are unaffected when the rule is published.

What should you do?

Reveal Solution Hide Solution

You create a new virtual disk in a storage pool by using the New Virtual Disk Wizard. You discover that the new virtual disk has a write-back cache of 1 GB.

You need to ensure that the virtual disk has a write-back cache of 5 GB.

What should you do?

Reveal Solution Hide Solution
