Juniper JN0-662 Service Provider Routing and Switching, Professional (JNCIP-SP) Online Training
Juniper JN0-662 Online Training
The questions for JN0-662 were last updated at Dec 24,2024.
- Exam Code: JN0-662
- Exam Name: Service Provider Routing and Switching, Professional (JNCIP-SP)
- Certification Provider: Juniper
- Latest update: Dec 24,2024
Which two types of LSAs have a domain scope? (Choose two.)
- A . Type 7
- B . Type 2
- C . Type 10
- D . Type 5
Click the Exhibit button.
Referring to the exhibit, what must be added to the existing configuration to ensure that per-prefix load balancing occurs?
- A . multihop
- B . keep all
- C . multipath
- D . family inet unicast
You are asked to configure a new Layer 3 VPN.
In this scenario, which routing-instance type must be used?
- A . vpls
- B . evpn
- C . vrf
- D . 12vpn
Which authentication strategy authenticates IS-IS hello PDUs only?
- A . interface authentication
- B . area authentication
- C . domain authentication
- D . level authentication

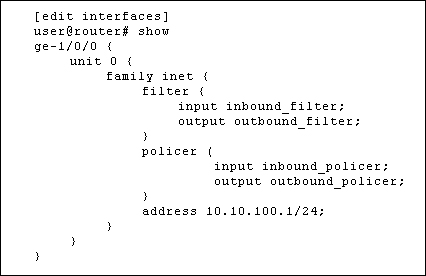

Click the Exhibit button.
Referring to the exhibit, in which order will ICMP traffic be processed by the configured filters and policers for interface ge-1/0/0?
- A . input filter, input policer, output policer, output filter
- B . input policer, input fitter, output policer, output filter
- C . input filter, input policer, output filter, output policer
- D . input policer, input filter, output filter, output policer
D
Explanation:
Reference: https://www.juniper.net/documentation/en_US/junos/topics/concept/policer-order-of-operationswith-firewall-filters.html

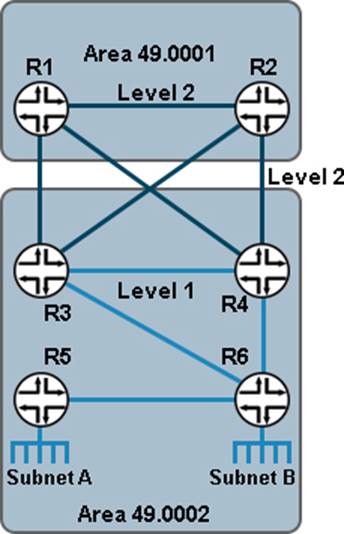

Click the Exhibit button.
R5 must advertise Subnet A into IS-IS so that Subnet A and Subnet B can communicate. Subnet B must be able to forward traffic to Subnet A and towards Area 49.0001. However, R5 should not be able to route traffic from Subnet A to Area 49.0001.
Referring to the exhibit, how would you solve this problem?
- A . Configure Level 2 on all links in Area 49.0002.
- B . Configure the set protocols isis ignore-attached-bitparameter on R5.
- C . Configure the set protocols isis overloadparameter on R6.
- D . Configure an export policy on R6 to reject all routes except Subnet B towards R5.
Which transport mechanism is required for Layer 3 VPNs?
- A . GRE
- B . VXLAN
- C . IPsec
- D . MPLS
Click the Exhibit button.
Referring to the exhibit, RR1-RR4 are route reflectors.
Which three routers would RR1 need to peer with if the no-client-reflectparameter has been configured? (Choose three.)
- A . R2
- B . R5
- C . RR4
- D . R6
- E . R1
Click the Exhibit button.
R1 and R2 are not forwarding the routes received from a remote PE to their customers.
Referring to the exhibit, which parameter must be added to the configuration to allow the routes to be forwarded?
- A . multipath multiple-as
- B . family inet-vpn
- C . multihop
- D . as-override
You are asked to configure PIM-SM in your network. Your implementation must allow for load sharing between redundant RPs and, should an RP failure occur, the RP failover time should be minimized.
Which two configuration tasks are required in this scenario? (Choose two.)
- A . Configure MSDP peering sessions between the routers designated as RPs.
- B . Configure the shared anycast address on the RPs as the primary address on the loopback interface.
- C . On the routers designated as RPs, configure the shared anycast address on the loopback interface.
- D . Configure at least two static RPs and bundle them in an RP redundancy group under [editprotocols pim].
