Which two features of Kubernetes are supported by the Contrail CNI? (Choose two.)
- A . black list rules
- B . network isolation
- C . service chaining
- D . pod traffic shaping
Exhibit.
Referring to the exhibit, which two statements are correct when deploying the OpenShift pod? (Choose two.)
- A . A podis created with the name "test1".
- B . Pods are reachable by pods in a different namespace.
- C . Pods are reachable only by pods in the same namespace.
- D . A pod is created with the name "test".
You are deploying Contrail Enterprise Multicloud in your environment. You must securely connect your private resources with publicly-hosted resources.
What must be included in this scenario?
- A . AppFormix
- B . Contrail Security
- C . service chaining
- D . Multicloud-Gateway
Exhibit.
You are using Contrail Command to configure AWS. You are unable to ping your VMs within the instance you created.
Referring to the exhibit, what is the problem?
- A . You must change the protocols allowed in the "Allow-all-inbound" rule to "ANY".
- B . Your subnets are in different availability zones.
- C . You must change the direction of the "Allow-all-inbound" rule to "Ingress".
- D . Your subnets for "Availability zone 1" and "Availability zone 2" must be the same.
Into which namespace are the Contrail system components deployed in an OpenShift cluster?
- A . contrail-system
- B . openshift-sdn
- C . networking
- D . default
Which Contrail daemon set is responsible for listening to the Kubernetes API messages and creating resources in the Contrail API database?
- A . contrail-controller-config
- B . contrail-configdb
- C . contrail-analytics-alarm
- D . contrail-Jcube-manager
What is a core component of an AWS cloud environment?
- A . a resource group
- B . a VPC
- C . a VNET
- D . a vRouter
You are deploying resources within Microsoft Azure integrated with Contrail.
Which set of components must be defined in this scenario?
- A . region, VPC, security groups, EC2 instance details
- B . region, VNET, security groups, EC2 instance details
- C . region, resource group, VPC, security groups, instance details
- D . region, resource group, VNET, security groups, instance details
Exhibit.
Your company uses Kubernetes as an orchestrator integrated with Contrail. You are asked to create the networks shown in the exhibit and enable communication between Pod 1 and Pod 2.
Which three steps must be performed in this scenario? (Choose three.)
- A . Create VN-A and VN-B.
- B . Apply a created network policy.
- C . Assign IP addresses to the pods.
- D . Update permissions in the security group. Create Namespace A and Namespace B.
Exhibit.
Referring to the exhibit, which role is the router device performing when implementing a PNF service chain?
- A . customer gateway
- B . service control gateway
- C . virtual private gateway
- D . multicloud gateway

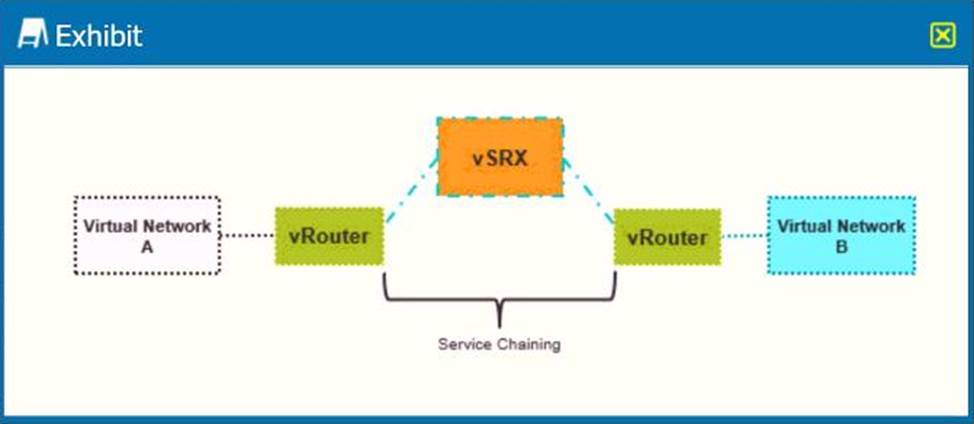

Exhibit.
Referring to the exhibit, which statement is true about virtual networks A and B so that the vSRX can be used as a service instance in a transparent service chain?
- A . Virtual networks A and B must have the same CIDR addressing.
- B . Virtual networks A and B must be running on different host servers.
- C . Virtual networks A and B must be running on the same host server.
- D . Virtual networks A and B must have different CIDR addressing.
An OpenShift cluster operator wants to verify the health of the cluster network infrastructure.
In this scenario, which method should the operator use to accomplish this task?
- A . Issue the oc get daemonset -n contrail-system command on the master node.
- B . Issue the contrail-status command on the master node.
- C . Issue the contrail-status command on the infrastructure node.
- D . Issue the oc get pods -n contrail-system command on the master node.

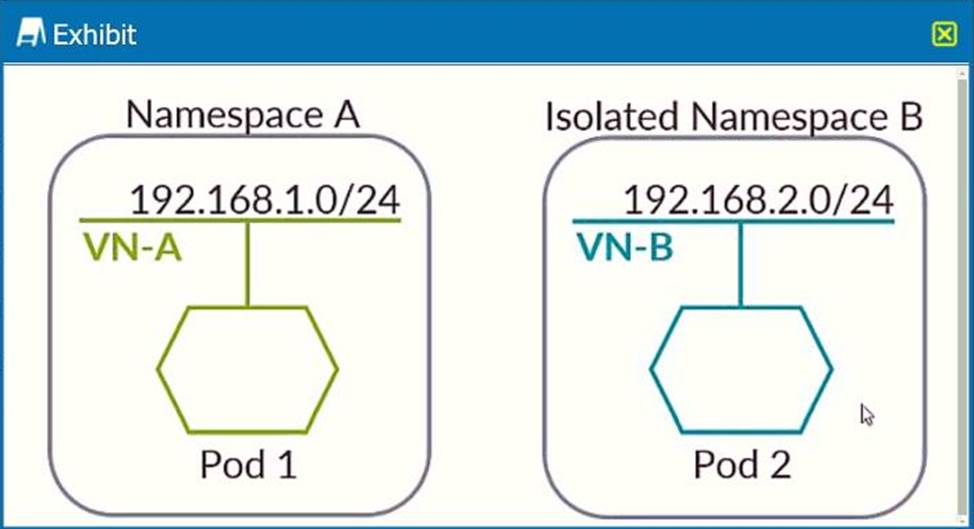

Exhibit.
Referring to the exhibit, which two statements about OpenShift namespace isolation with a Contrail network is true? (Choose two.)
- A . Pod 1 can communicate with Pod 2.
- B . Pod 1 cannot communicate with Pod 2.
- C . Pod 2 can communicate with Pod 1.
- D . Pod 2 cannot communicate with Pod 1.
Which two statements are correct when deploying or integrating OpenShift with Contrail Enterprise Multicloud? {Choose two.)
- A . Contrail Command for deployment is not supported.
- B . NFS for OpenShift logging is recommended.
- C . When using a load balancer, manually copy the htpasswd file into all of the master nodes.
- D . NTP is installed automatically and synchronized.
Exhibit.
Referring to the exhibit, which statement is correct about the configuration for the service chain?
- A . The service chain has an allowed address pair on the interfaces.
- B . The service chain is using a default setup.
- C . The service chain is set up for active/standby.
- D . The service chain is using a customized ECMP load balancer.
What are two methods to automate the creation of service chains using Contrail Enterprise Multicloud? (Choose two.)
- A . Heat templates
- B . Chef cookbooks
- C . Ansible playbooks
- D . Puppet manifests
Which two roles does Contrail Enterprise Multicloud place on IP Fabric devices in a centrally-routed environment? (Choose two.)
- A . Leaves are Layer 3 VXLAN gateways.
- B . Leaves are Layer 2 VXLAN gateways.
- C . Spines are Layer 2 VXLAN gateways.
- D . Spines are Layer 3 VXLAN gateways.
Contrail Virtual Network corresponds to which entity in VMware vCenter?
- A . distributed virtual switch
- B . standard virtual switch
- C . distributed port group
- D . standard port group

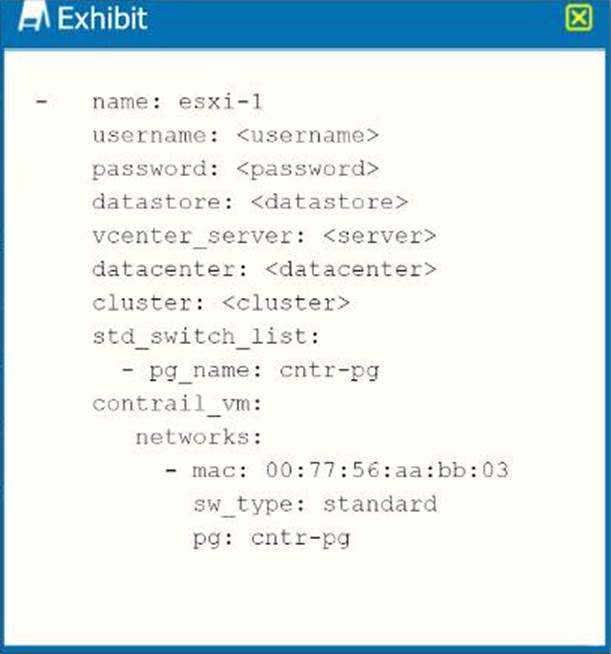

Exhibit.
Referring to the exhibit, which component will be used for the underlay connectivity of the ESXi host?
- A . a host unique vSwitch
- B . the vSwitchO
- C . the cntr-vswitch
- D . a distributed vSwitch
You are connecting your on-premises data center to the Azure cloud.
In this scenario, which connection gateway service is implemented within the Azure cloud by Contrail Enterprise Multicloud?
- A . virtual private gateway
- B . multicloud gateway
- C . virtual network gateway
- D . customer gateway
