HP HPE6-A69 Aruba Certified Switching Expert Written Exam Online Training
HP HPE6-A69 Online Training
The questions for HPE6-A69 were last updated at Dec 20,2024.
- Exam Code: HPE6-A69
- Exam Name: Aruba Certified Switching Expert Written Exam
- Certification Provider: HP
- Latest update: Dec 20,2024

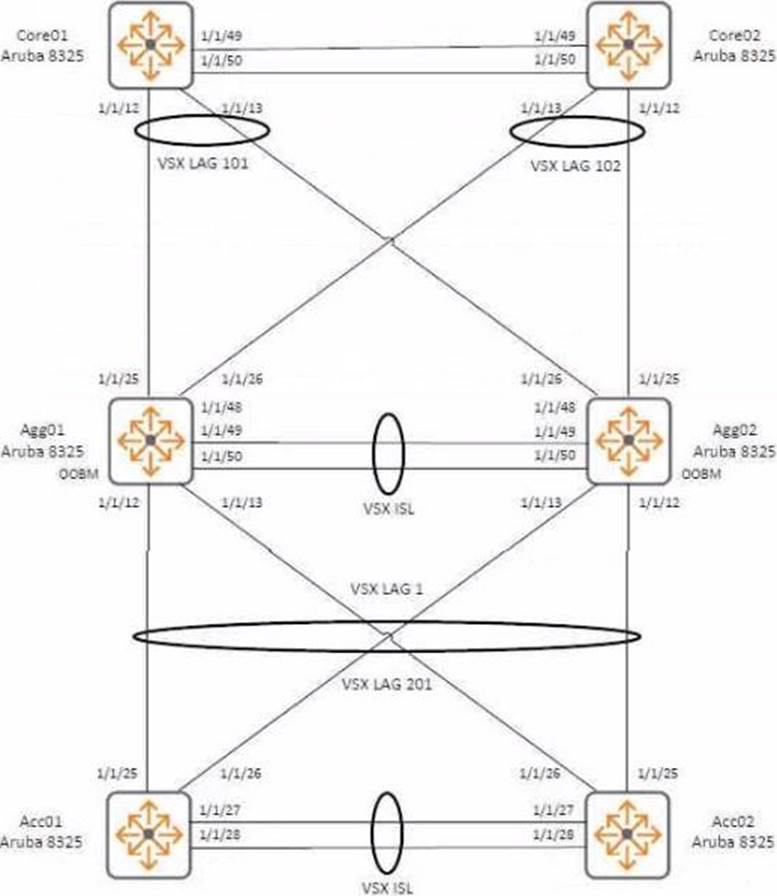

Refer to the exhibit.
You want to protect the aggregation layer if the VSXISL falls.
Where should you place a VSX keepalive link?
- A . On VSX LAG 1
- B . On a dedicated link created using port 1’1/48 of each aggregation switch
- C . On the OOBM ports of both aggregation switches
- D . On VSX LAG 101
The customer has a requirement for creating security filtering for IPv4 and IPv6 traffic passing through an ArubaOS-CX 6400 switch.
Which statement Is true about access-list on the selected switch model?
- A . IPv4 and IPv6 entries can be used in one ACL with separate rules
- B . Separate IPv4 and IPv6 ACLs need to be created for inbound and outbound traffic
- C . Only one inbound or outbound ACL can be bound to an interface.
- D . Routed interfaces can have only inbound ACLs

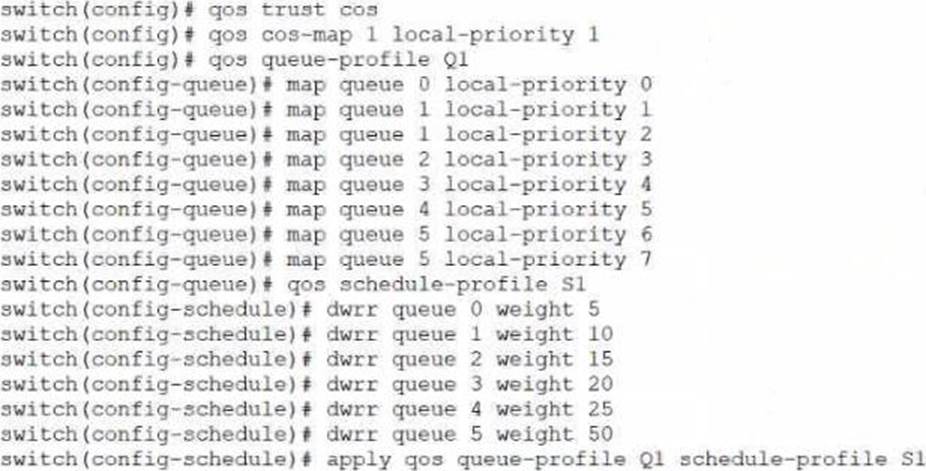

Refer to the exhibit.
Which statement is true?
- A . Q1 and S1 are applied to all interfaces mat do not have a QoS override applied
- B . To be effective, both Q1 and S1 still need to be applied to Interfaces
- C . No default queues are changed
- D . Q1 and S1 are applied to all interfaces.
An administrator is utilizing the orchestration capabilities of NetEdit.
What are the two plan types that can be created? Configuration management plan (Select two.)
- A . Firmware plan
- B . Firmware plan
- C . Deployment plan
- D . Configuration plan
When an ArubaOS-CX switch uses the temporary copy of the coring state database, how does NetEdit validate if the configuration is correct?
- A . Semantic validation
- B . Syntax validation
- C . Deploy validation
- D . Planned validation

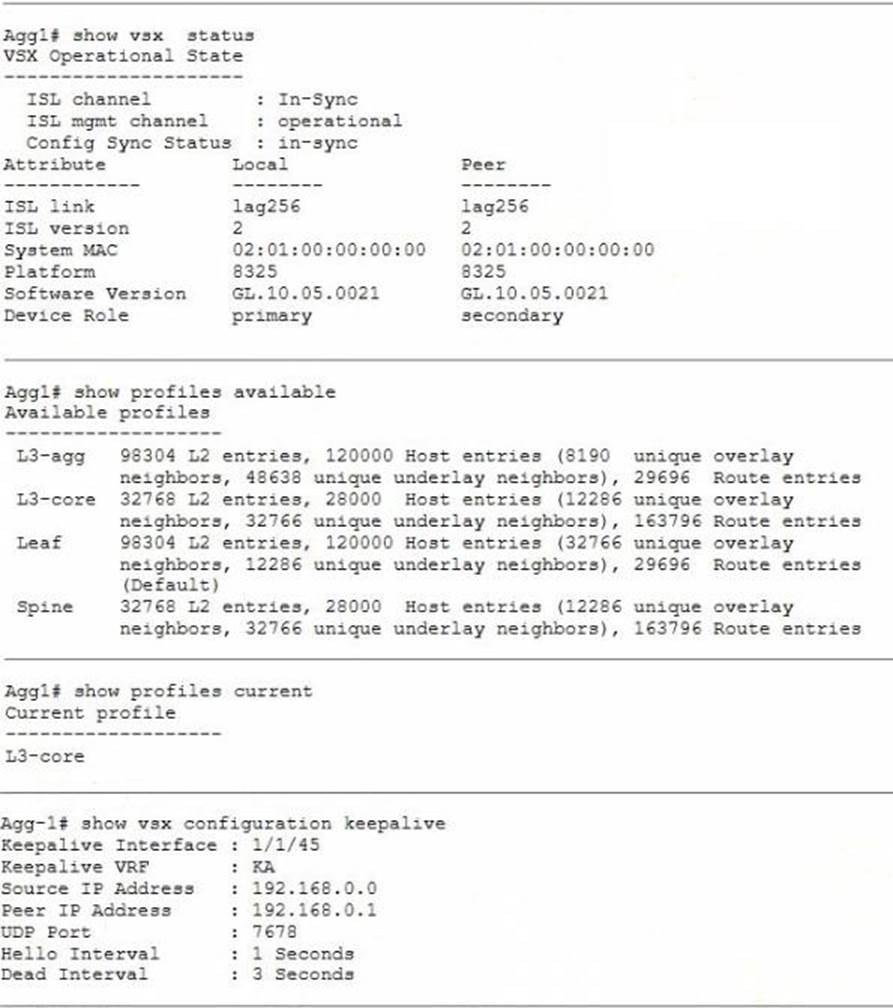

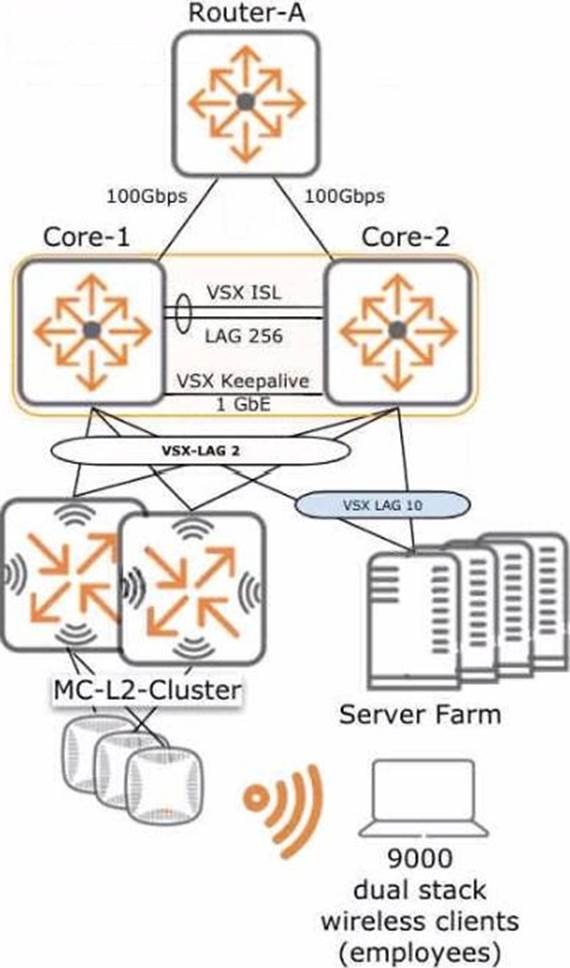

The customer is considering Implemented the following VSX configuration that will host an Aruba mobility cluster servicing 9000 dual stack employee devices.
The client’s default gateways will be hosted on the VSX stack. The customer is seeking advice about how to ensure ArubaOS-CX VSX best practices have been applied.
What advice can you offer the customer? (Select two)
- A . The ISL Bandwidth should be upgraded
- B . Agg-1 and Agg-2’s hardware forwarding table profile should be changed to "L3-agg”.
- C . The -system-mac’ of Agg-1 should be changed to an unused address from the unicast private address range
- D . The vsx linkup-delay timer is unnecessarily high; it should be reduced to prevent excessive delay of packet forwarding when a VSX peer joins an existing master.
- E . The Keepalive interface should be changed to interface LAG2 so there is redundancy through the mobility cluster.
- F . The keepalive subnet is misconfigured, it has an inappropriate address on Agg-1.
You have removed a member out of the ArubaOS-CX 6300 VSF configuration. The login to the removed member falls.
What is true about switch login recovery?
- A . The task requires physical access to the switch
- B . The zeroize task executes the zeroize.txt from the root of the CF card on the switch
- C . The zeroize task will remove all user passwords: the configuration remains on the switch
- D . The task can be executed remotely
Which statement is true regarding remote mirroring?
- A . The same source/destination address can be used in multiple sessions.
- B . Per session multiple destination addresses can be configured
- C . The ArubaOS-CX switch supports a maximum of two mirroring sessions
- D . When mirroring destination is tunnel, a DSCP value can be set on the tunnel
What are the requirements for managing a switch using Aruba NetEdit? (Select two)
- A . REST access-mode must be set to read-write.
- B . HTTPS service must be restricted to the management VRF
- C . The switch user account mat NetEdit uses should have a password.
- D . Telnet must be disabled on the switch
Which MAC address is valid for use as a VSX System-MAC address?
- A . AB:00:04:00:FF:00
- B . 0A:00:00.00.00
- C . FF:00:00:00:00:00
- D . 01:00:5E40:10.01
