How should you configure the app?

Case Study 1

Current environment

Windows Server 2016 virtual machine

The virtual machine (VM) runs BizTalk Server 2016.

The VM runs the following workflows:

– Ocean Transport C This workflow gathers and validates container information including container contents and arrival notices at various shipping ports.

– Inland Transport C This workflow gathers and validates trucking information including fuel usage, number of stops, and routes.

The VM supports the following REST API calls:

– Container API C This API provides container information including weight, contents, and other attributes.

– Location API C This API provides location information regarding shipping ports of call and tracking stops.

– Shipping REST API C This API provides shipping information for use and display on the shipping website.

Shipping Data

The application uses MongoDB JSON document storage database for all container and transport information.

Shipping Web Site

The site displays shipping container tracking information and container contents. The site is located at http://shipping.wideworldimporters.com/

Proposed solution

The on-premises shipping application must be moved to Azure. The VM has been migrated to a new Standard_D16s_v3 Azure VM by using Azure Site Recovery and must remain running in Azure to complete the BizTalk component migrations. You create a Standard_D16s_v3 Azure VM to host BizTalk Server.

The Azure architecture diagram for the proposed solution is shown below:

Requirements

Shipping Logic app

The Shipping Logic app must meet the following requirements:

– Support the ocean transport and inland transport workflows by using a Logic App.

– Support industry-standard protocol X12 message format for various messages including vessel content details and arrival notices.

– Secure resources to the corporate VNet and use dedicated storage resources with a fixed costing model.

– Maintain on-premises connectivity to support legacy applications and final BizTalk migrations.

Shipping Function app

Implement secure function endpoints by using app-level security and include Azure Active Directory (Azure AD).

REST APIs

The REST API’s that support the solution must meet the following requirements:

– Secure resources to the corporate VNet.

– Allow deployment to a testing location within Azure while not incurring additional costs.

– Automatically scale to double capacity during peak shipping times while not causing application downtime.

– Minimize costs when selecting an Azure payment model.

Shipping data

Data migration from on-premises to Azure must minimize costs and downtime.

Shipping website

Use Azure Content Delivery Network (CDN) and ensure maximum performance for dynamic content while minimizing latency and costs.

Issues

Windows Server 2016 VM

The VM shows high network latency, jitter, and high CPU utilization. The VM is critical and has not been backed up in the past. The VM must enable a quick restore from a 7-day snapshot to include in-place restore of disks in case of failure.

Shipping website and REST APIs

The following error message displays while you are testing the website:

Failed to load http://test-shippingapi.wideworldimporters.com/: No ‘Access-Control-Allow-Origin’ header is present on the requested resource. Origin ‘http://test.wideworldimporters.com/’ is therefore not allowed access.

Hotspot Question

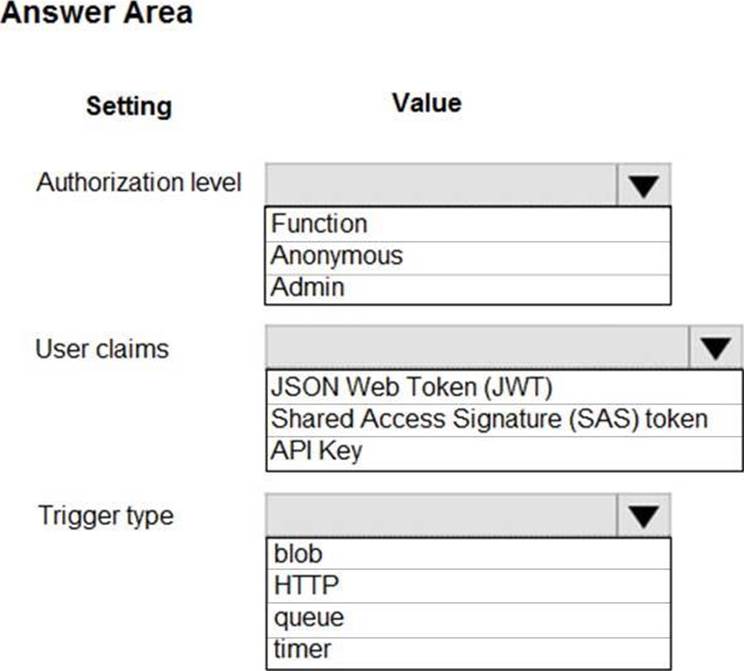

You need to secure the Shipping Function app.

How should you configure the app? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Scenario: Shipping Function app: Implement secure function endpoints by using app-level security and include Azure Active Directory (Azure AD).

Box 1: Function

Box 2: JSON based Token (JWT)

Azure AD uses JSON based tokens (JWTs) that contain claims

Box 3: HTTP

How a web app delegates sign-in to Azure AD and obtains a token

User authentication happens via the browser. The OpenID protocol uses standard HTTP protocol messages.

Reference: https://docs.microsoft.com/en-us/azure/active-directory/develop/authentication-scenarios
