Fortinet NSE8_811 Fortinet NSE 8 Written Exam Online Training
Fortinet NSE8_811 Online Training
The questions for NSE8_811 were last updated at Nov 19,2024.
- Exam Code: NSE8_811
- Exam Name: Fortinet NSE 8 Written Exam
- Certification Provider: Fortinet
- Latest update: Nov 19,2024

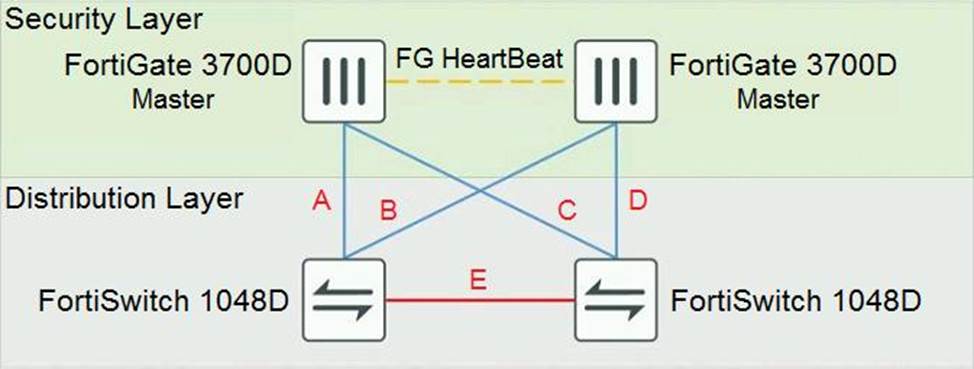

Refer to the exhibit.
The exhibit shows a full-mesh topology between FortiGate and FortiSwitch devices.
To deploy this configuration, two requirements must be met:
– 20 Gbps full duplex connectivity is available between each FortiGate and the FortiSwitch devices
– The FortiGate HA must be in AP mode
Referring to the exhibit, what are two actions that will fulfill the requirements? (Choose two.)
- A . Configure the master FortiGate with one LAG and FortiLink split interface disabled on ports connected to cables A and C and make sure the same ports are used for cables B and D on the slave.
- B . Configure the master FortiGate with one LAG and FortiLink split interface enabled on ports connected to cables A and C and make sure the same ports are used for cables B and D on the slave.
- C . Configure both FortiSwitch devices as peers with ICL over cable E, create one MCLAG on ports connected to cables A and C, and create another MCLAG on ports connected to cables B and D.
- D . Configure both FortiSwitch devices as peers with ISL over cable E, create one MCLAG on ports connected to cables A and C, and create another MCLAG on ports connected to cables B and D.
You want to manage a FortiGate with the FortiCloud service. The FortiGate shows up in your list of devices on the FortiCloud Web site, but all management functions are either missing or grayed out.
Which statement is correct in this scenario?
- A . The management tunnel mode on the managed FortiGate must be changed to normal.
- B . The managed FortiGate is running a version of FortiOS that is either too new or too old for FortiCloud.
- C . The managed FortiGate requires that a FortiCloud management license be purchased and applied.
- D . You must manually configure system central-managementon the FortiGate CLI and set the management type to fortiguard.

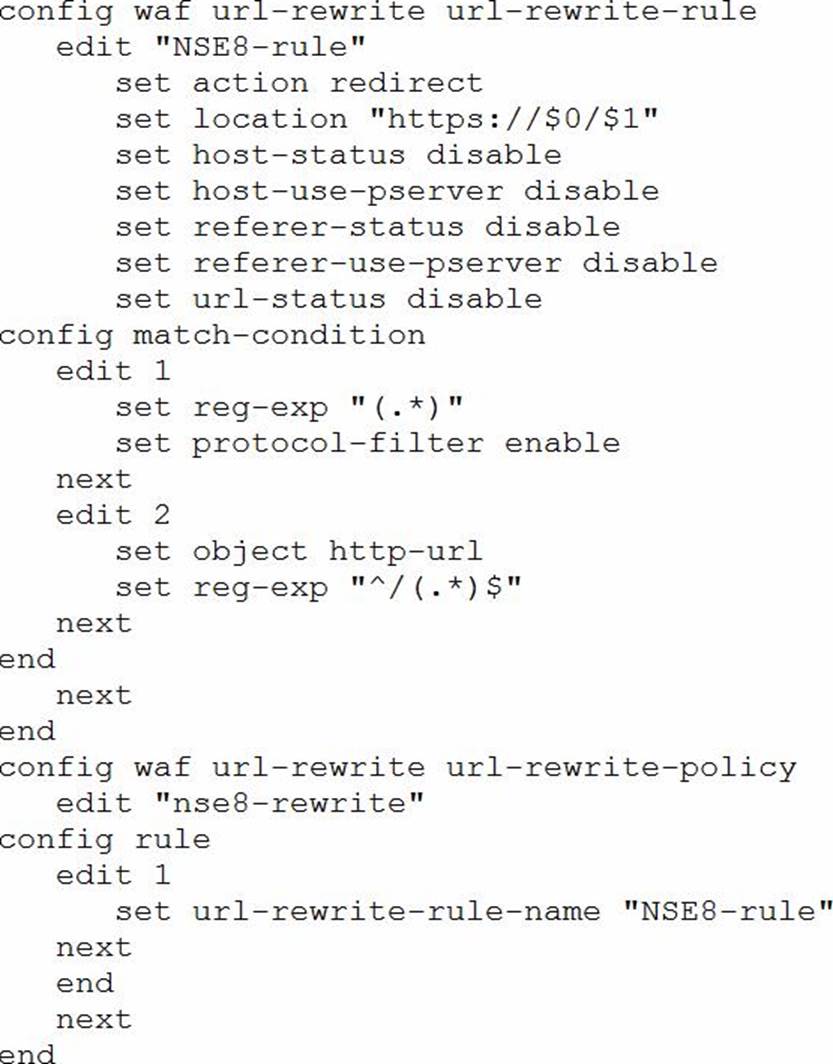

Refer to the exhibit.
The exhibit shows the steps for creating a URL rewrite policy on a FortiWeb.
Which statement represents the purpose of this policy?
- A . The policy redirects all HTTPS URLs to HTTP.
- B . The policy redirects all HTTP URLs to HTTPS.
- C . The policy redirects only HTTP URLs containing the ^/(.*)$ string to HTTPS.
- D . The policy redirects only HTTPS URLs containing the ^/(.*)$ string to HTTP.
You are asked to add a FortiDDoS to the network to combat detected slow connection attacks such as Slowloris.
Which prevention mode on FortiDDoS will protect you against this specific type of attack?
- A . asymmetric mode
- B . aggressive aging mode
- C . rate limiting mode
- D . blocking mode
You are building a FortiGate cluster which is stretched over two locations. The HA connections for the cluster are terminated on the local switches in the data centers. Once the FortiGate devices have booted, they do not form a cluster. The network operators inform you that CRC errors are present on the switches where the FortiGate devices are connected.
What should you do to solve this problem?
- A . Set the speed/duplex setting to 1 Gbps / Full Duplex.
- B . Replace the cables where the CRC errors occur.
- C . Place the HA interfaces in dedicated VLANs.
- D . Change the ethertype for the HA packets.
You want to access the JSON API on FortiManager to retrieve information on an object.
In this scenario, which two methods will satisfy the requirement? (Choose two.)
- A . Download the WSDL file from FortiManager administration GUI.
- B . Make a call with the curl utility on your workstation.
- C . Make a call with the SoapUI API tool on your workstation.
- D . Make a call with the Web browser on your workstation.
Refer to the exhibit.
You created a custom health-check for your FortiWeb deployment. Given the output shown in the exhibit, which statement is true?
- A . The FortiWeb must receive an RST packet from the server.
- B . The FortiWeb must receive an HTTP 200 response code from the server.
- C . The FortiWeb must match the hash value of the page index.html.
- D . The FortiWeb must receive an ICMP Echo Request from the server.
Refer to the exhibit.
You created an aggregate interface between a FortiGate and a switch consisting of two 1 Gbps links as shown in the exhibit. However, the maximum bandwidth never exceeds 1 Gbps and employees are reporting that the network is slow. After troubleshooting, you notice that only one member interface is being used. The configuration for the aggregate interface is shown in the exhibit.
In this scenario, which command will solve this problem?

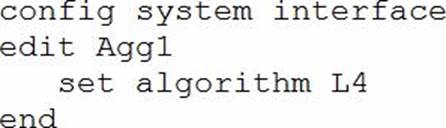

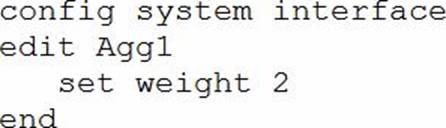

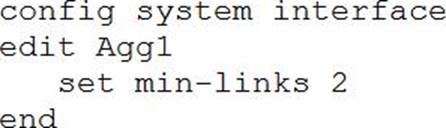

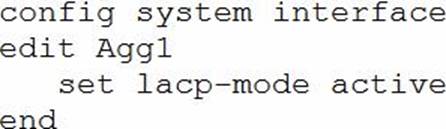

A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D

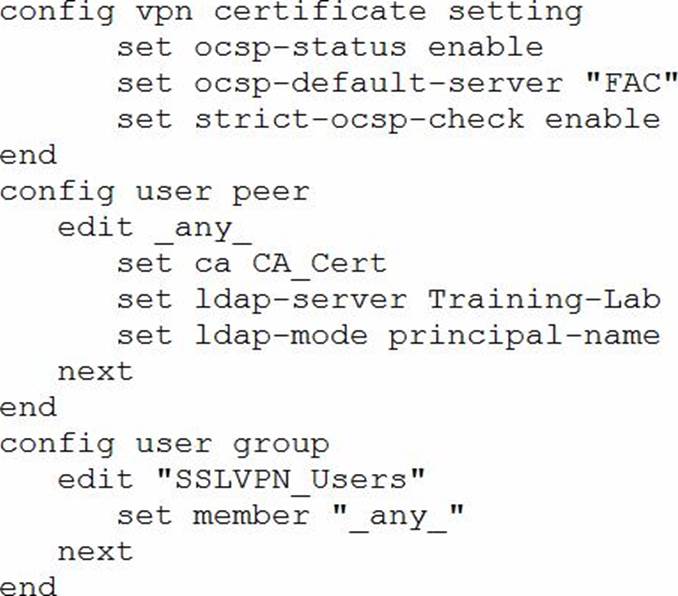

Refer to the exhibit.
A FortiGate device is configured to authenticate SSL VPN users using digital certificates. A partial FortiGate configuration is shown in the exhibit.
Referring to the exhibit, which two statements about this configuration are true? (Choose two.)
- A . The authentication will fail if the user certificate does not contain the user principal name (UPN) information.
- B . The authentication will fail if the user certificate does not contain the CA_Cert string in the CA field.
- C . The authentication will fail if the OCSP server is down.
- D . OCSP is used to verify that the user-signed certificate has not expired.

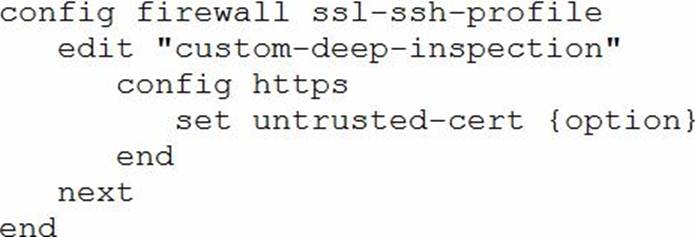

Consider the following FortiGate configuration:
Which command-line option for deep inspection SSL would have the FortiGate re-sign all untrusted self-signed certificates with the trusted Fortinet_CA_SSL certificate?
- A . block
- B . inspect
- C . allow
- D . ignore
