Question #21

You are automating configuration changes on one of the FortiGate VMS using Linux Red Hat Ansible.

How does Linux Red Hat Ansible connect to FortiGate to make the configuration change?

A . It uses a FortiGate internal or external IP address with TCP port 21
B . It uses SSH as a connection method to FortiOS.
C . It uses an API.
D . It uses YAML

Reveal Solution Hide Solution

Question #22

Refer to the exhibit

An administrator deployed an HA active-active load balance sandwich in Microsoft Azure. The setup requires configuration synchronization between devices-

What are two outcomes from the configured settings? (Choose two.)

A . FortiGate-VM instances are scaled out automatically according to predefined workload levels.
B . FortiGate A and FortiGate B are two independent devices.
C . By default, FortiGate uses FGCP
D . It does not synchronize the FortiGate hostname

Reveal Solution Hide Solution

Question #23

Refer to the exhibit

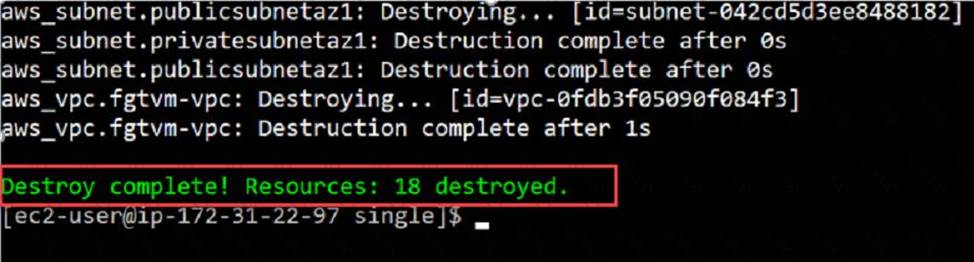

An administrator deployed a FortiGate-VM in a high availability (HA) (active/passive) architecture in Amazon Web Services (AWS) using Terraform for testing purposes. At the same time, the administrator deployed a single Linux server using AWS Marketplace

Which two options are available for the administrator to delete all the resources created in this test? (Choose two.)

A . Use the terraform destroy command
B . Use the terraform validate command.
C . Use the terraform destroy all command.
D . The administrator must manually delete the Linux server.

Reveal Solution Hide Solution

Question #24

You are tasked with deploying a FortiGate HA solution in Amazon Web Services (AWS) using Terraform.

What are two steps you must take to complete this deployment? (Choose two.)

A . Enable automation on the AWS portal.
B . Create an AWS Identity and Access Management (IAM) user With permissions.
C . Use CloudSheIl to install Terraform.
D . Create an AWS Active Directory user with permissions.

Reveal Solution Hide Solution

Question #25

Refer to the exhibit

Consider the active-active load balance sandwich scenario in Microsoft Azure.

What are two important facts in the active-active load balance sandwich scenario? (Choose two)

A . It uses the vdom-exception command to exclude the configuration from being synced
B . It is recommended to enable NAT on FortiGate policies.
C . It uses the FGCP protocol
D . It supports session synchronization for handling asynchronous traffic.

Reveal Solution Hide Solution

Correct Answer: BD
BD

Explanation:

B) It is recommended to enable NAT on FortiGate policies. This is because the Azure load balancer uses a hash-based algorithm to distribute traffic to the FortiGate instances, and it relies on the source and destination IP addresses and ports of the packets1. If NAT is not enabled, the source IP address of the packets will be the same as the load balancer’s frontend IP address, which will result in uneven distribution of traffic and possible asymmetric routing issues1. Therefore, it is recommended to enable NAT on the FortiGate policies to preserve the original source IP address of the packets and ensure optimal load balancing and routing1.

D. It supports session synchronization for handling asynchronous traffic. This means that the FortiGate instances can synchronize their session tables with each other, so that they can handle traffic that does not follow the same path as the initial packet of a session2. For example, if a TCP SYN packet is sent to FortiGate A, but the TCP SYN-ACK packet is sent to FortiGate B, FortiGate B can forward the packet to FortiGate A by looking up the session table2. This feature allows the FortiGate instances to handle asymmetric traffic that may occur due to the Azure load balancer’s hash-based algorithm or other factors. The other options are incorrect because:

It does not use the vdom-exception command to exclude the configuration from being synced. The vdom-exception command is used to exclude certain configuration settings from being synchronized between FortiGate devices in a cluster or a high availability group3. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, but they are standalone devices with standalone configuration synchronization enabled. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname.

It does not use the FGCP protocol. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

Question #26

Refer to the exhibit

An administrator is trying to deploy a FortiGate VM in Microsoft Azure using Terraform However, during the configuration, the Azure client secret is no longer visible in the Azure portal.

How would the administrator obtain the Azure client secret to configure on Terratorm?

A . The administrator must create a new Azure account
B . Log in to the Azure CLI with power user to obtain the client secret
C . The administrator can create a new client secret
D . The administrator must obtain the client secret through Azure Cloud Shell.

Reveal Solution Hide Solution

Question #27

What are two main features in Amazon Web Services (AWS) network access control lists (ACLs)? (Choose two.)

A . You cannot use Network ACL and Security Group at the same time.
B . The default network ACL is configured to allow all traffic
C . Network ACLs are stateless, and inbound and outbound rules are used for traffic filtering
D . Network ACLs are tied to an instance

Reveal Solution Hide Solution

Question #28

Refer to the exhibit

In your Amazon Web Services (AWS), you must allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet However, your HTTPS connection to the FortiGate VM in the Customer VPC is not successful.

Also, you must ensure that the Customer VPC FortiGate VM sends all the outbound Internet traffic through the Security VPC.

How do you correct this Issue with minimal configuration changes?

(Choose three.)

A . Add a route With your local internet public IP address as the destination and target transit gateway
B . Add route destination 0 0.0 0/0 to target the transit gateway
C . Add a route With your local internet public IP address as the destination and target internet gateway
D . Deploy an internet gateway, associate an EIP in the private subnet, edit route tables, and add a new route destination 0.0.0.0/0 to the target internet gateway
E . Deploy an internet gateway, associate an EIP in the public subnet, and attach the internet gateway to the Customer VPC,

Reveal Solution Hide Solution

Correct Answer: BDE
BDE

Explanation:

B) Add route destination 0.0.0.0/0 to target the transit gateway. This will ensure that the Customer VPC FortiGate VM sends all the outbound internet traffic through the Security VPC, where it can be inspected by the Security VPC FortiGate VMs1. The transit gateway is a network device that connects multiple VPCs and on-premises networks in a hub-and-spoke model2.

D) Deploy an internet gateway, associate an EIP in the private subnet, edit route tables, and add a new route destination 0.0.0.0/0 to the target internet gateway. This will allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, by creating a public route for the private subnet where the FortiGate VM is located3. An internet gateway is a service that enables communication between your VPC and the internet4. An EIP is a public IPv4 address that you can allocate to your AWS account and associate with your resources.

E. Deploy an internet gateway, associate an EIP in the public subnet, and attach the internet gateway to the Customer VPC. This will also allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, by creating a public route for the public subnet where the FortiGate VM is located3. This is an alternative solution to option D, depending on which subnet you want to use for the FortiGate VM.

The other options are incorrect because:

Adding a route with your local internet public IP address as the destination and target transit gateway will not allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, because it will only apply to traffic coming from your specific IP address, not from any other source on the internet1. Moreover, it will not ensure that the outbound internet traffic goes through the Security VPC, because it will only apply to traffic going to your specific IP address, not to any other destination on the internet1.

Adding a route with your local internet public IP address as the destination and target internet gateway will not allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, because it will bypass the Security VPC and send the traffic directly to the Customer VPC1. Moreover, it will not ensure that the outbound internet traffic goes through the Security VPC, because it will only apply to traffic going to your specific IP address, not to any other destination on the internet1.

Question #29

You must allow an SSH traffic rule in an Amazon Web Services (AWS) network access list (NACL) to allow SSH traffic to travel to a subnet for temporary testing purposes. When you review the current inbound network ACL rules, you notice that rule number 5 demes SSH and telnet traffic to the subnet.

What can you do to allow SSH traffic?

A . You must create a new allow SSH rule below rule number 5
B . You must create a new allow SSH rule above rule number 5-
C . You must create a new allow SSH rule anywhere in the network ACL rule base to allow SSH traffic.
D . You do not have to create any NACL rules because the default security group rule automatically allows SSH traffic to the subnet.

Reveal Solution Hide Solution

Question #30

Refer to Exhibit:

The exhibit shows the Connect Peers settings on Amazon Web Services (AWS) transit gateway attachments With two FortiGate VMS in a security VPC.

Which two statements are correct? (Choose two.)

A . The peer GRE address is the FortiGate external interface IP address.
B . The Transit Gateway GRE address is auto-generated
C . The BGP inside CIDR blocks can be any CIDR block with /29
D . The Peer GRE address is the FortiGate internal interface IP address

Reveal Solution Hide Solution
