Fortinet NSE7 NSE7 Enterprise Firewall – FortiOS 5.4 Online Training
Fortinet NSE7 Online Training
The questions for NSE7 were last updated at Jan 03,2025.
- Exam Code: NSE7
- Exam Name: NSE7 Enterprise Firewall - FortiOS 5.4
- Certification Provider: Fortinet
- Latest update: Jan 03,2025

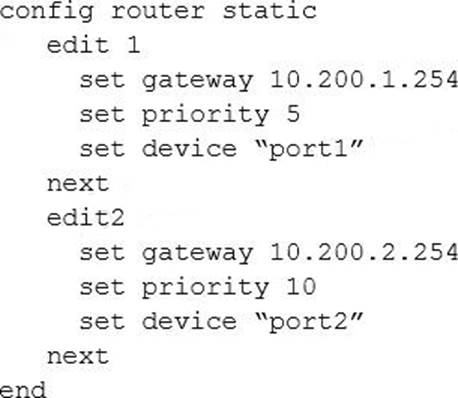

A FortiGate has two default routes:
All Internet traffic is currently using port1.
The exhibit shows partial
information for one sample session of Internet traffic from an internal user:
What would happen with the traffic matching the above session if the priority on the first default route (IDd1) were changed from 5 to 20?
- A . Session would remain in the session table and its traffic would keep using port1 as the outgoing interface.
- B . Session would remain in the session table and its traffic would start using port2 as the outgoing interface.
- C . Session would be deleted, so the client would need to start a new session.
- D . Session would remain in the session table and its traffic would be shared between port1 and port2.
What events are recorded in the crashlogs of a FortiGate device? (Choose two.)
- A . A process crash.
- B . Configuration changes.
- C . Changes in the status of any of the FortiGuard licenses.
- D . System entering to and leaving from the proxy conserve mode.

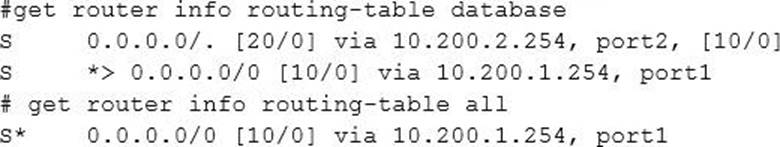

Examine the following partial outputs from two routing debug commands; then answer the question below:
Why the default route using port2 is not displayed in the output of the second command?
- A . It has a lower priority than the default route using port1.
- B . It has a higher priority than the default route using port1.
- C . It has a higher distance than the default route using port1.
- D . It is disabled in the FortiGate configuration.
A FortiGate is rebooting unexpectedly without any apparent reason.
What troubleshooting tools could an administrator use to get more information about the problem? (Choose two.)
- A . Firewall monitor.
- B . Policy monitor.
- C . Logs.
- D . Crashlogs.
An administrator has enabled HA session synchronization in a HA cluster with two members.
Which flag is added to a primary unit’s session to indicate that it has been synchronized to the secondary unit?
- A . redir.
- B . dirty.
- C . synced
- D . nds.

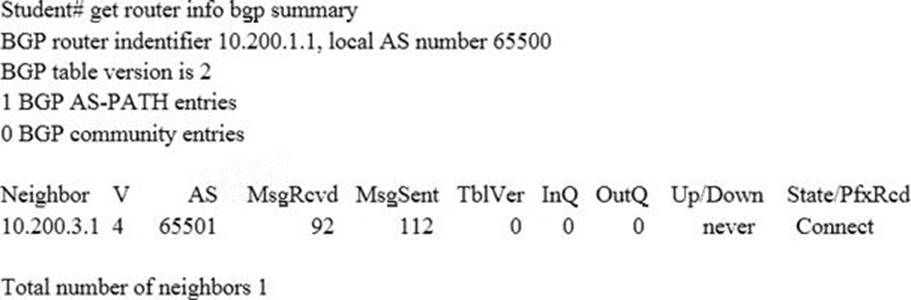

Examine the output of the ‘get router info bgp summary’ command shown in the exhibit; then answer the question below.
Which statement can explain why the state of the remote BGP peer 10.200.3.1 is Connect?
- A . The local peer is receiving the BGP keepalives from the remote peer but it has not received any BGP prefix yet.
- B . The TCP session for the BGP connection to 10.200.3.1 is down.
- C . The local peer has received the BGP prefixed from the remote peer.
- D . The local peer is receiving the BGP keepalives from the remote peer but it has not received the OpenConfirm yet.

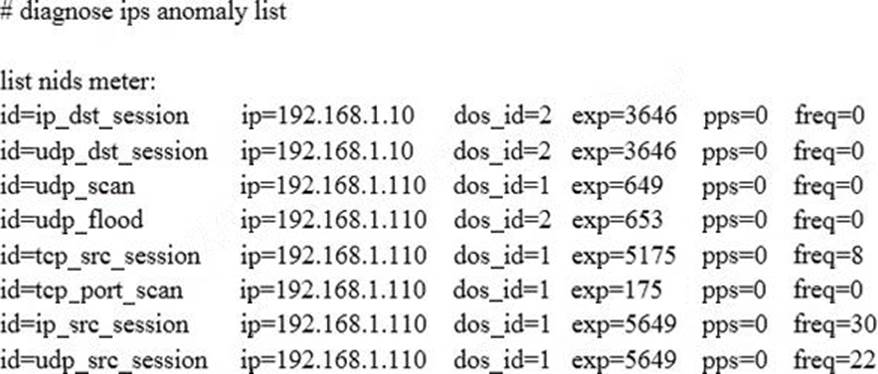

Examine the output of the ‘diagnose ips anomaly list’ command shown in the exhibit; then answer the question below.
Which IP addresses are included in the output of this command?
- A . Those whose traffic matches a DoS policy.
- B . Those whose traffic matches an IPS sensor.
- C . Those whose traffic exceeded a threshold of a matching DoS policy.
- D . Those whose traffic was detected as an anomaly by an IPS sensor.

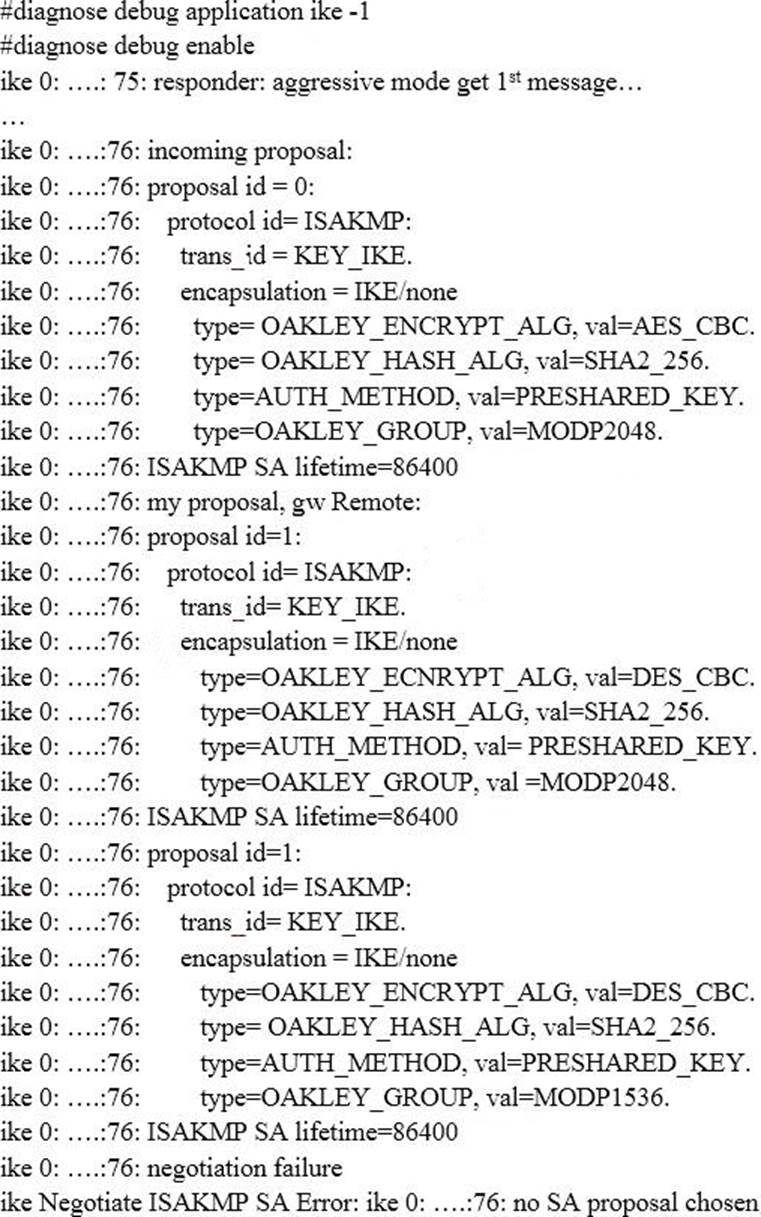

Examine the partial output from the IKE real time debug shown in the exhibit; then answer the question below.
Why didn’t the tunnel come up?
- A . IKE mode configuration is not enabled in the remote IPsec gateway.
- B . The remote gateway’s Phase-2 configuration does not match the local gateway’s phase-2 configuration.
- C . The remote gateway’s Phase-1 configuration does not match the local gateway’s phase-1 configuration.
- D . One IPsec gateway is using main mode, while the other IPsec gateway is using aggressive mode.

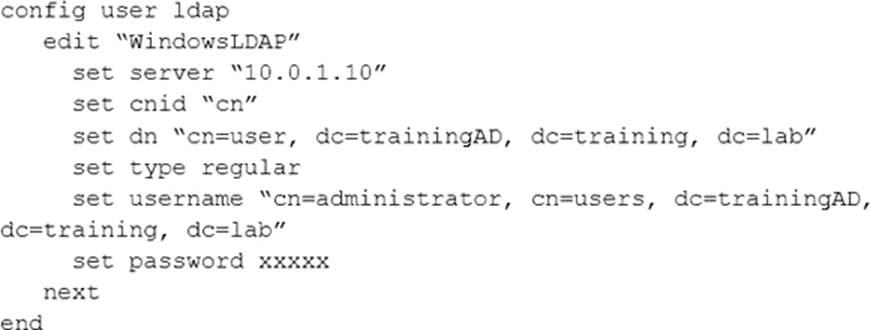

A FortiGate device has the following LDAP configuration:

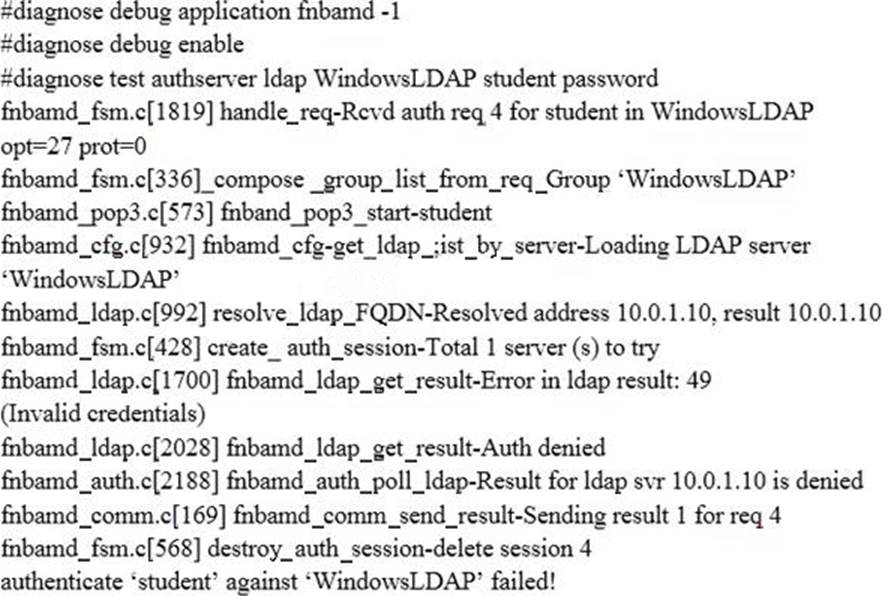

The LDAP user student cannot authenticate. The exhibit shows the output of the authentication real time debug while testing the student account:
Based on the above output, what FortiGate LDAP settings must the administer check? (Choose two.)
- A . cnid.
- B . username.
- C . password.
- D . dn.

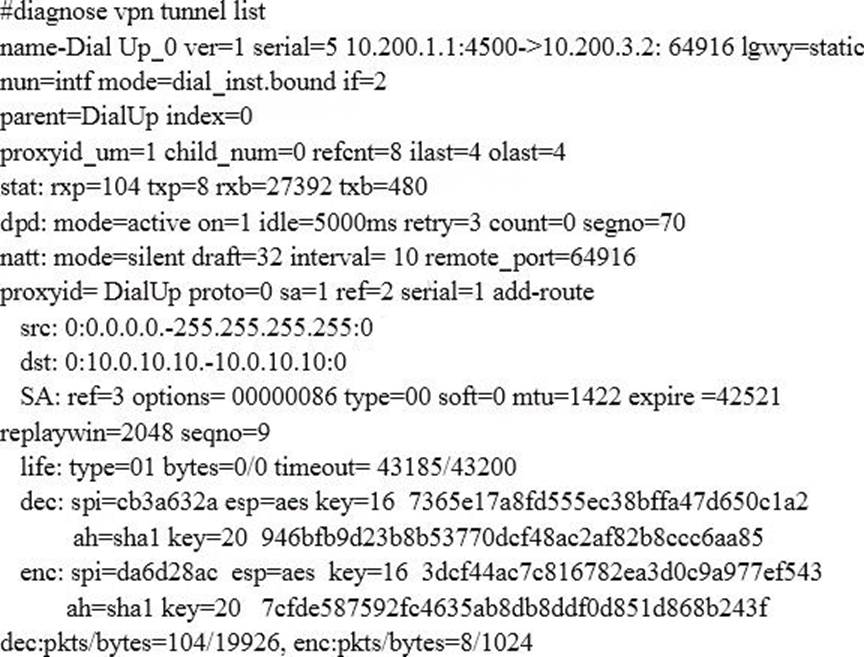

Examine the output from the ‘diagnose vpn tunnel list’ command shown in the exhibit; then answer the question below.
Which command can be used to sniffer the ESP traffic for the VPN DialUP_0?
- A . diagnose sniffer packet any ‘port 500’ B. diagnose sniffer packet any ‘esp’
- B . diagnose sniffer packet any ‘host 10.0.10.10’
- C . diagnose sniffer packet any ‘port 4500’
