- Exam Code: NSE7
- Exam Name: NSE7 Enterprise Firewall - FortiOS 5.4
- Certification Provider: Fortinet
- Latest update: Jan 02,2025

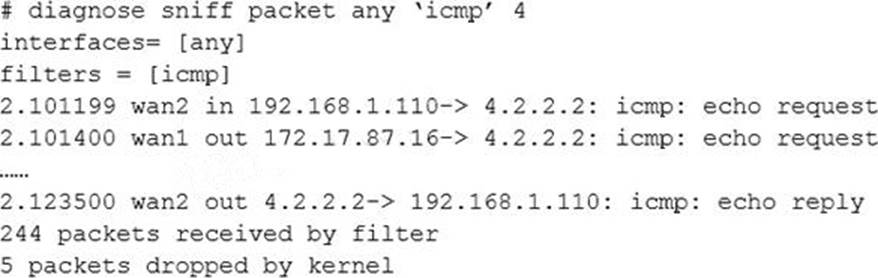

Examine the following partial output from a sniffer command; then answer the question below.
What is the meaning of the packets dropped counter at the end of the sniffer?
- A . Number of packets that didn’t match the sniffer filter.
- B . Number of total packets dropped by the FortiGate.
- C . Number of packets that matched the sniffer filter and were dropped by the FortiGate.
- D . Number of packets that matched the sniffer filter but could not be captured by the sniffer.
A FortiGate is configured as an explicit web proxy. Clients using this web proxy are reposting DNS errors when accessing any website.
The administrator executes the following debug commands and observes that the n-dns-timeout counter is increasing:
What should the administrator check to fix the problem?
- A . The connectivity between the FortiGate unit and the DNS server.
- B . The connectivity between the client workstations and the DNS server.
- C . That DNS traffic from client workstations is allowed by the explicit web proxy policies.
- D . That DNS service is enabled in the explicit web proxy interface.
Which real time debug should an administrator enable to troubleshoot RADIUS authentication problems?
- A . Diagnose debug application radius -1.
- B . Diagnose debug application fnbamd -1.
- C . Diagnose authd console Clog enable.
- D . Diagnose radius console Clog enable.

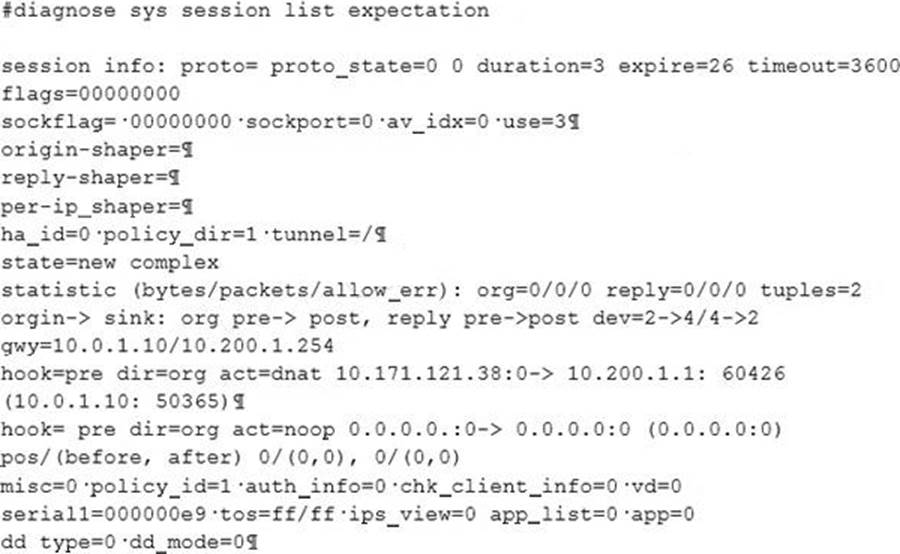

Examine the output of the ‘diagnose sys session list expectation’ command shown in the exhibit; than answer the question below.
Which statement is true regarding the session in the exhibit?
- A . It was created by the FortiGate kernel to allow push updates from FotiGuard.
- B . It is for management traffic terminating at the FortiGate.
- C . It is for traffic originated from the FortiGate.
- D . It was created by a session helper or ALG.
An administrator has configured a FortiGate device with two VDOMs: root and internal. The administrator has also created and inter-VDOM link that connects both VDOMs. The objective is to have each VDOM advertise some routes to the other VDOM via OSPF through the inter-VDOM link.
What OSPF configuration settings must match in both VDOMs to have the OSPF adjacency successfully forming? (Choose three.)
- A . Router ID.
- B . OSPF interface area.
- C . OSPF interface cost.
- D . OSPF interface MTU.
- E . Interface subnet mask.
An administrator has configured a dial-up IPsec VPN with one phase 2, extended authentication (XAuth) and IKE mode configuration.
The administrator has also enabled the IKE real time debug:
– diagnose debug application ike-1
– diagnose debug enable
In which order is each step and phase displayed in the debug output each time a new dial-up user is connecting to the VPN?
- A . Phase1; IKE mode configuration; XAuth; phase 2.
- B . Phase1; XAuth; IKE mode configuration; phase2.
- C . Phase1; XAuth; phase 2; IKE mode configuration.
- D . Phase1; IKE mode configuration; phase 2; XAuth.
Two independent FortiGate HA clusters are connected to the same broadcast domain. The administrator has reported that both clusters are using the same HA virtual MAC address. This creates a duplicated MAC address problem in the network.
What HA setting must be changed in one of the HA clusters to fix the problem?
- A . Group ID.
- B . Group name.
- C . Session pickup.
- D . Gratuitous ARPs.
When does a RADIUS server send an Access-Challenge packet?
- A . The server does not have the user credentials yet.
- B . The server requires more information from the user, such as the token code for two-factor authentication.
- C . The user credentials are wrong.
- D . The user account is not found in the server.
The logs in a FSSO collector agent (CA) are showing the following error:
failed to connect to registry: PIKA1026 (192.168.12.232)
What can be the reason for this error?
- A . The CA cannot resolve the name of the workstation.
- B . The FortiGate cannot resolve the name of the workstation.
- C . The remote registry service is not running in the workstation 192.168.12.232.
- D . The CA cannot reach the FortiGate with the IP address 192.168.12.232.

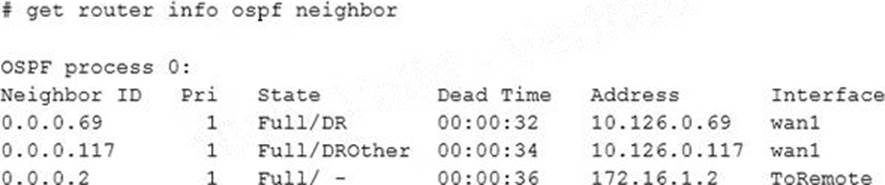

Examine the output of the ‘get router info ospf neighbor’ command shown in the exhibit; then answer the question below.
Which statements are true regarding the output in the exhibit? (Choose two.)
- A . The interface ToRemote is OSPF network type point-to-point.
- B . The OSPF router with the ID 0.0.0.2 is the designated router for the ToRemote network.
- C . The local FortiGate is the backup designated router for the wan1 network.
- D . The OSPF routers with the IDs 0.0.0.69 and 0.0.0.117 are both designated routers for the wan1 network.
