What is used to validate the storage configuration on a Dell EMC VxBlock System 740?
- A . Control Station
- B . NaviSecCLI
- C . SSH Client
- D . Unisphere for VMAX
In a Dell EMC VxBlock System, which protocol is used between the Fabric Interconnects and the Nexus switches in a segregated network for storage access?
- A . FCoE
- B . IP
- C . iSCSI
- D . FC
Which VxBlock System uses Dell EMC standard cabinets in addition to Panduit cabinets?
- A . VxBlock 340
- B . VxBlock 350
- C . VxBlock 540
- D . VxBlock 740
You are planning for a Dell EMC VxBlock deployment You have verified that the data center power connector is NEMA L6-30P
Which exhibit represents the correct power connector to use?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
Which operation is performed during the Logical Build process of a Dell EMC VxBlock System?
- A . Cable the components
- B . Verify the storage array physical drives
- C . Configure the IPI appliance
- D . Install the UCS chassis
DRAG DROP
What is the documented sequence of steps to power on the Dell EMC VxBlock management virtual machines in the AMP?
Based on performance best practices, what is the maximum number of hosts that should be connected to each FC port of a Dell EMC VxBlock System 540?
- A . 16
- B . 32
- C . 64
- D . 128
Which Dell EMC VNX component contains both storage processors and disks?
- A . SPE
- B . DAE
- C . DPE
- D . DME
DRAG DROP
Match the components with their appropriate Auto-Provisioning Groups for a Dell EMC VxBlock System 740 storage array.
Which management tool is used to validate that vMotion is functional on a Dell EMC VxBlock System?
- A . VMware NSX Manager
- B . Array Management Server
- C . Dell EMC Vision
- D . VMware vCenter
What should be validated to confirm that FAST VP Automated Data Movement is enabled on a Dell EMC VxBlock System 340?
- A . "Scheduled" is selected under Auto-Tiering
- B . "High" is selected under Data Relocation Rate
- C . "Manual" is selected under Auto-Tiering
- D . "Medium is selected under Data Relocation Rate
Which Dell EMC Vision component is used for creating connections to multiple VxBlock systems?
- A . Multi-System Pre-positioning
- B . Vision Shell
- C . Dashboard
- D . Multi-System Manager
In a Dell EMC XtremlO installation, what is the minimum number of IP addresses required for a single X-Brick system?
- A . 2
- B . 3
- C . 4
- D . 5
Before unpacking and moving the Dell EMC VxBlock System from the docking bay to the data center, you inspect the route the equipment is going to take.
Why is the route from the docking bay to the data center important?
- A . Remove any obstacles that might interfere with the movement
- B . Ensure the temperature and humidity of the route is kept the same as the data center
- C . Verify the shortest route is taken in order to minimize any damage to the system
- D . Confirm security authorization through the route
Which username is used to log into the Dell EMC Vision Dashboard?
- A . admin
- B . root
- C . sysadmin
- D . csadmin
In a Dell EMC VxBlock System 350. how is an NFS export mounted on an ESXi host?
- A . Raw Device Mapping is presented through the SAN
- B . Datastore is presented through the IP network
- C . iSCSI LUN is presented through the IP network
- D . Datastore is presented through the SAN
When deploying a Dell EMC VxBlock System 740, what on the array provides SAN connectivity for block data access?
- A . Data Mover
- B . Storage Processor
- C . Front-end Director
- D . Back-end Director
Which document is provided by the Dell EMC VxBlock Physical Build team to the Logical Build team to associate the end-to-end switches and cable types with the correct color coding?
- A . Logical Configuration Survey
- B . Cabinet and Power Worksheet
- C . Port Map Workbook
- D . Rack Elevation in the Solutions Abstract
You are preparing for a new VxBlock System deployment and implementation service.
Which activity is a joint responsibility of the customer and Dell EMC or Dell EMC Partner?
- A . VxBlock System implementation test planning
- B . Documentation finalization
- C . Customer configuration design review
- D . Logical configuration information gathering
When submitting the Logical Configuration Survey for a manufacturing build, which additional document is required for a Dell EMC VxBlock System 740?
- A . Disjointed Layer 2 Worksheet
- B . Logical Build Guide
- C . Configuration Reference Guide
- D . BIN File Request Form
A customer is considering a Dell EMC VxBlock System configuration as a technical refresh for their current Fibre Channel environment They are currently using VNX, Cisco UCS, and Microsoft Hyper-V
What is an important consideration for the migration to the new configuration?
- A . Disk transplant can be used as a forklift migration
- B . Current virtual machines need to be converted to VMware virtual machines
- C . Storage vMotion can be used from the current VNX to the new storage array
- D . Storage array migration must be completed first
Which document is used to handoff a Dell EMC VxBlock System from the Deployment and Implementation team to Customer Care?
- A . Configuration Reference Guide
- B . Logical Configuration Survey
- C . Vision RCM Compliance Report
- D . Deployment Audit Checklist
What is the expiration date of the Logical Configuration Survey?
- A . 1 week after the date of the next version update
- B . 1 week after the date published
- C . 1 week after the date saved
- D . 1 month after the date saved
DRAG DROP

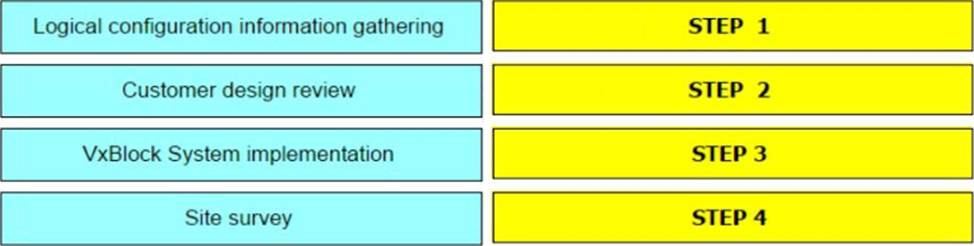

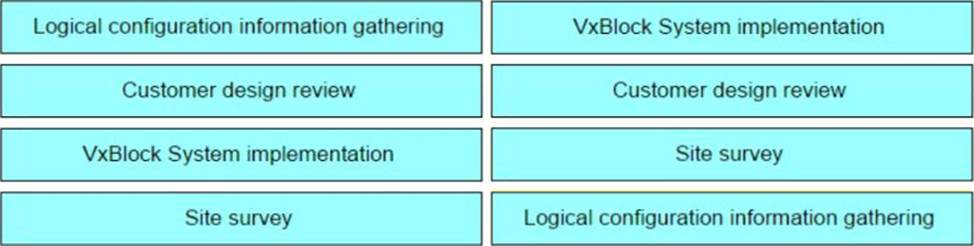

In a Dell EMC VxBlock System project, what is the correct sequence of activities?
Which components are Cisco UCS Fabric Interconnects connected to in a Dell EMC VxBlock System with a unified network for storage access?
- A . Cisco MDS switches and Cisco Nexus switches
- B . UCS Blade Servers and Storage Array ports
- C . UCS I/O Modules and Cisco MDS switches
- D . UCS I/O Modules and Cisco Nexus switches
What is the number of supported ports in a UCS I/O Module on a Dell EMC VxBlock System?
- A . 2
- B . 6
- C . 8
- D . 12
