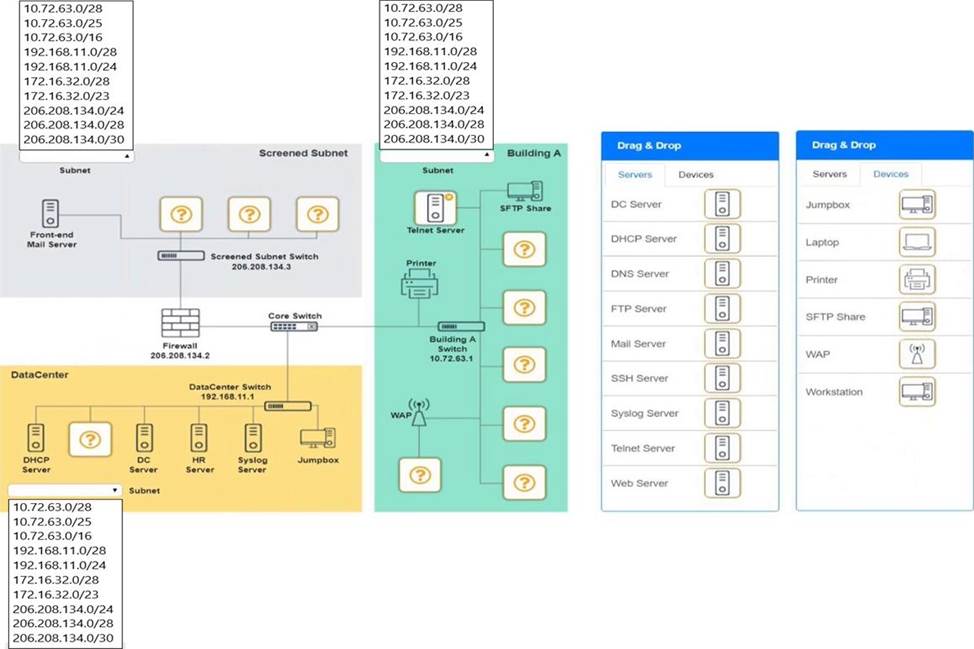

You are tasked with verifying the following requirements are met in order to ensure network security.

Requirements:

Datacenter

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide a dedicated server to resolve IP addresses and hostnames correctly and handle port 53 traffic

Building A

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide devices to support 5 additional different office users

Add an additional mobile user

Replace the Telnet server with a more secure solution

Screened subnet

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide a server to handle external 80/443 traffic

Provide a server to handle port 20/21 traffic

INSTRUCTIONS

Drag and drop objects onto the appropriate locations. Objects can be used multiple times and not all placeholders need to be filled.

Available objects are located in both the Servers and Devices tabs of the Drag & Drop menu.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

View Answer

Answer: See explanation below.

Explanation:

Screened Subnet devices C Web server, FTP server

Building A devices C SSH server top left, workstations on all 5 on the right, laptop on bottom left

DataCenter devices C DNS server.
