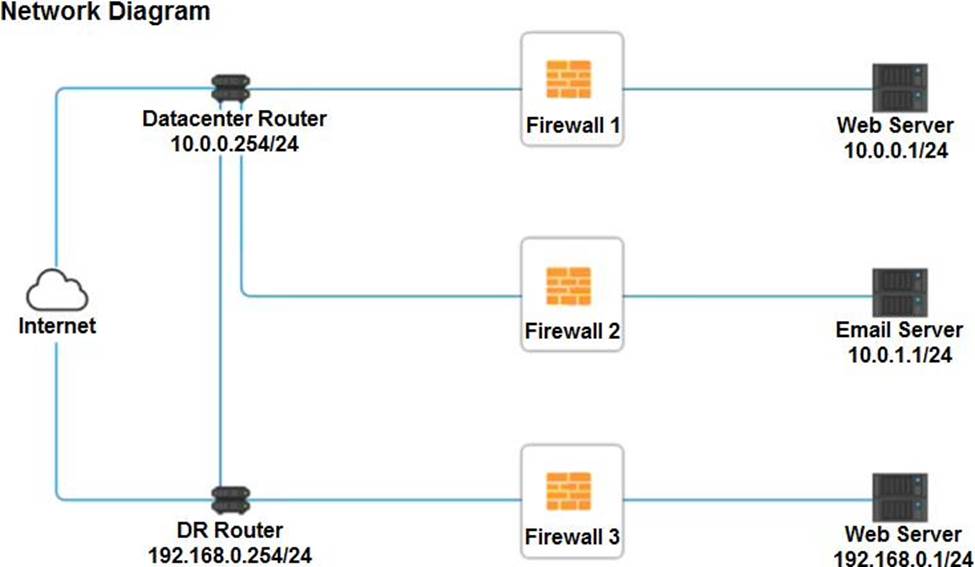

A company recently added a DR site and is redesigning the network. Users at the DR site are having issues browsing websites.

INSTRUCTIONS

Click on each firewall to do the following:

✑ Deny cleartext web traffic.

✑ Ensure secure management protocols are used. Please Resolve issues at the DR site.

The ruleset order cannot be modified due to outside constraints.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

View Answer

Answer: Firewall 1:

DNS Rule C ANY –> ANY –> DNS –> PERMIT

HTTPS Outbound C 10.0.0.1/24 –> ANY –> HTTPS –> PERMIT

Management C ANY –> ANY –> SSH –> PERMIT

HTTPS Inbound C ANY –> ANY –> HTTPS –> PERMIT

HTTP Inbound C ANY –> ANY –> HTTP –> DENY

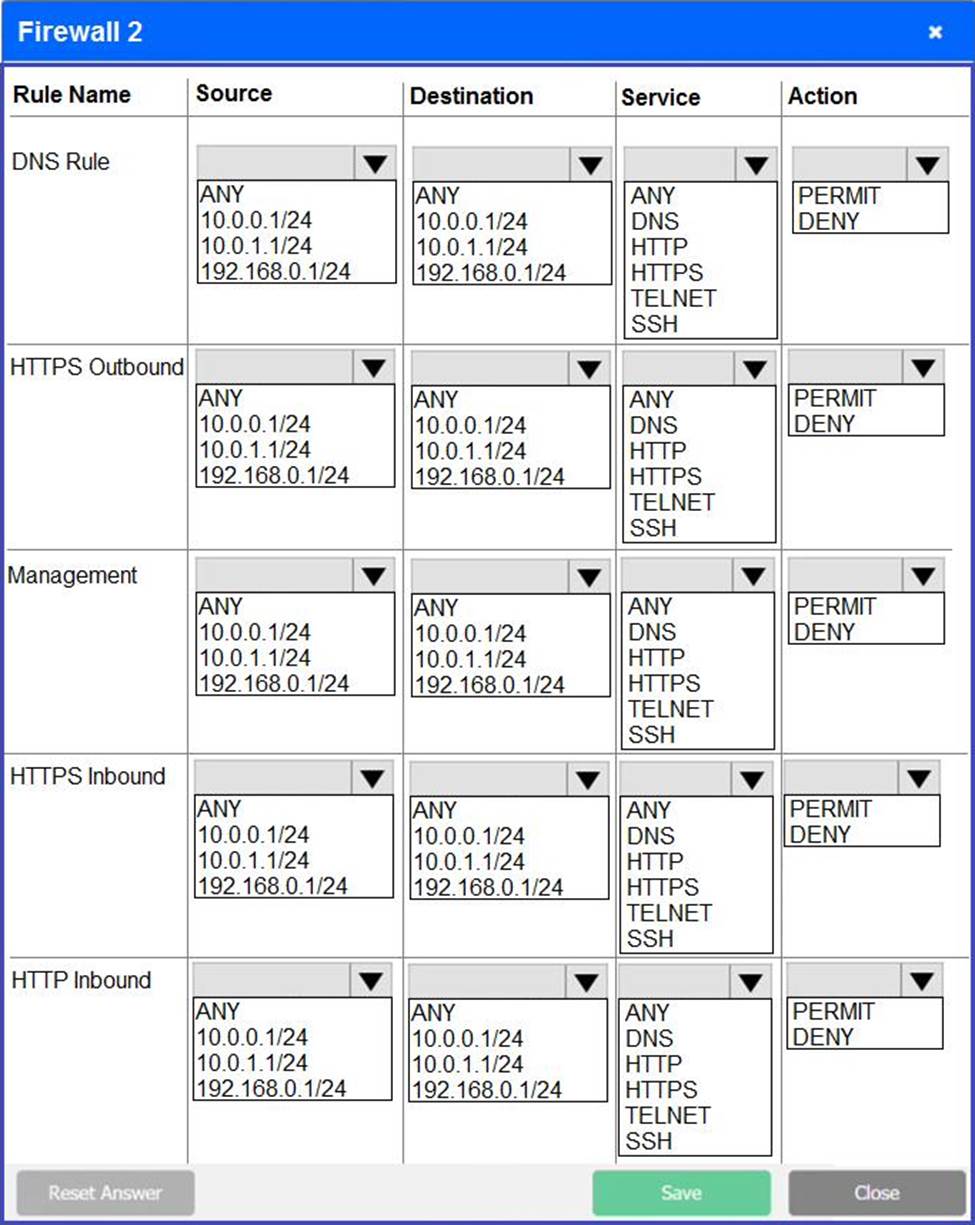

Firewall 2: No changes should be made to this firewall

Graphical user interface, application

Description automatically generated

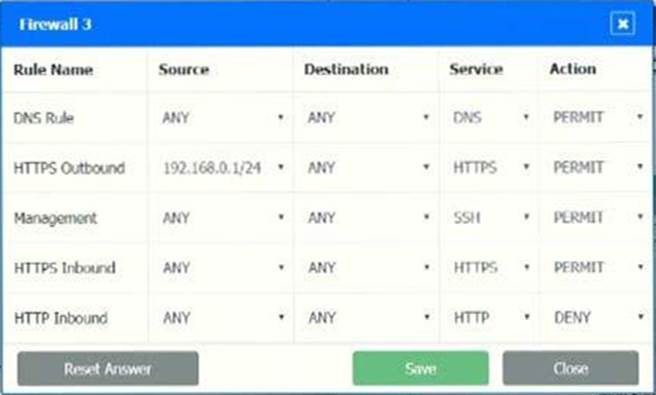

Firewall 3:

DNS Rule C ANY –> ANY –> DNS –> PERMIT

HTTPS Outbound C 192.168.0.1/24 –> ANY –> HTTPS –> PERMIT

Management C ANY –> ANY –> SSH –> PERMIT

HTTPS Inbound C ANY –> ANY –> HTTPS –> PERMIT

HTTP Inbound C ANY –> ANY –> HTTP –> DENY

Graphical user interface, application

Description automatically generated
