Testlet 1
Executive Summary
Project Overview
CGE is a global, diversified, upstream (exploration and production) oil and gas company headquartered in North America. CGE’s three main operating areas are North America, Europe, and Southeast Asia. CGE also has a portfolio of international exploration opportunities. CGE began in North America as a small, upstream oil and gas company. Through acquisitions, CGE grew quickly and acquired companies globally. This led to a decentralized IT model, both from systems and personnel perspectives. CGE currently utilizes several Citrix technologies to provide application virtualization to a global end-user base spread across several continents. Its current IT model for application virtualization is based on regional locations; each region hosts its own Citrix environment to support its local end-user base. CGE is moving toward a global IT model in which the entire application and desktop virtualization environment will be hosted in three data centers, each with a highly available NetScaler pair. CGE would like to provide dedicated desktops to some end-user groups to alleviate past issues with applications and performance. In addition, an Internet upgrade project is underway to eliminate slow connections at all sites. This will improve latency and bandwidth issues throughout the environments. CGE engaged Citrix Consulting to determine whether best practices are being followed in its existing Citrix environments; to provide a design document for a new, consolidated Citrix environment; and to point out risks that should be resolved before moving to this new environment. This deliverable represents the output of the requirements gathering phase and will be used as an input during the architectural design phase of this engagement. Through interactive meetings, Citrix Consulting obtained information regarding CGE’s existing Citrix XenApp environments and strategic goals. By reviewing this information, CGE can understand and methodically address those areas that represent the most profound risks, improve various facets of its current environments, and prepare for the future design phase of a consolidated environment.
Project Goals
During the course of the project, CGE and Citrix Consulting identified a number of project goals.
The following summarizes these goals:
– Perform a detailed assessment of the Citrix components supporting the existing Citrix environments, which include XenApp 6.x, XenServer, and NetScaler Gateway.
– Review relevant peripheral components that support the existing Citrix environments (for example, Active Directory, storage, SQL, networking) to determine if each can support current production workloads and a new Citrix environment.
– Identify operational and environmental improvements to better account for the environments’ growth.
Overview
CGE has locations spread across three primary regions―North America, Europe, and Southeast Asia― with its primary headquarters located in Houston. Sub regions exist within each region, each with its own Citrix infrastructure. Once power and cooling upgrades are complete, Houston will be the primary datacenter and London will be the secondary datacenter.
The following diagram details the locations and network connection types.
Business Layer Overview
Since CGE expanded quickly through acquisitions, corporate IT left infrastructure management up to the acquired companies. As a result, some regions have well-run Citrix environments, while others experience critical outages that simultaneously affect hundreds of end users.
CGE’s CIO, who has been with CGE for slightly less than a year, was hired to be the central point for IT across all regions. The CIO has engaged with the various business units to understand their processes and received various complaints about the stability of the existing Citrix infrastructures.
The CIO feels that the majority of Citrix infrastructure issues are due to a lack of centralized control and common platforms. Some regions have older versions of XenApp, while some are more current. As CGE moves forward, the CIO plans to use a single vendor for the entire solution, and wants to ensure that the new infrastructure is virtualized and fault tolerant.
End-User Layer Overview
CGE has 10,350 employees, approximately 4,700 of which access the Citrix environments daily. Peak logon times are Monday through Friday, from 8:00 a.m. C 10:00 a.m., based on local, regional time zones. Technicians and engineers are shift workers who rotate to accommodate a 24 hours a day, seven days a week schedule.
End user distribution is as follows:
The majority of end users connect using CGE-owned HP laptop and desktop devices. Over 90 percent of these devices are Windows 7-based, as CGE is in the process of completing a Windows XP to Windows 7
migration.
CGE has standardized all these devices on Citrix Online Plug-in for Windows12.1, and is in the process of testing Receiver for Windows 4.2. In the past, some end users have complained about slowness when typing, which may indicate issues with latency.
CGE also allows end users to connect using non-corporate-owned devices. Many end users connect from personal computers and mobile devices such as Apple iPads and iPhones. End users are instructed to download Citrix Receiver from either the Citrix website or the Android or Apple app stores.
End users can be grouped into six separate categories:
– Executives/Management C Regional upper- and mid-level management staff.
– Back Office C End users that provide functions such as accounting, administration, human resources, and finance.
– Research C End users focus mainly on discovering new energy fields and sources.
– Engineers C End users who work with technicians in a senior lead role for both technical and management functions. There is approximately one engineer for every five technicians.
– Technicians C Field workers who service the oil and gas equipment.
– Sales C Primary customer-facing group.

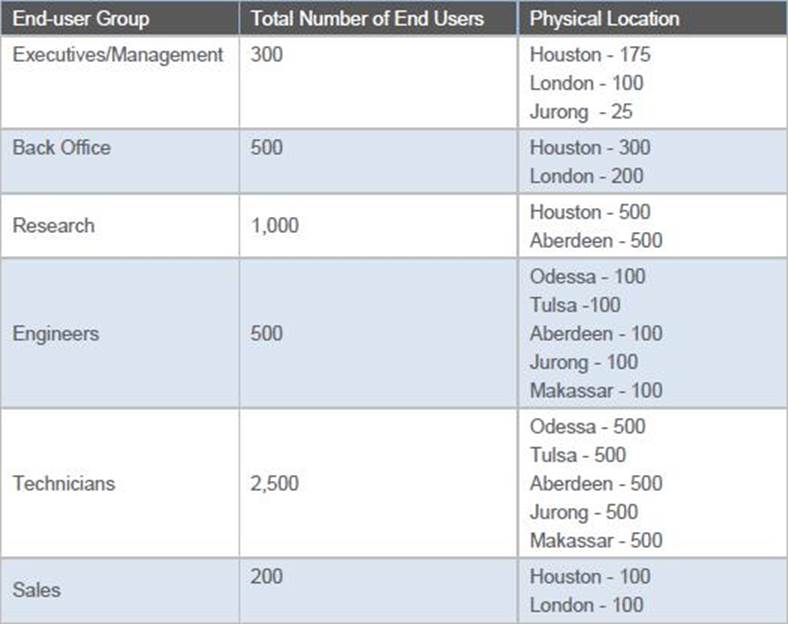

End-user groups and numbers are as follows:
The engineers, technicians, and research groups access Citrix applications primarily in an office-type environment, but may need to access these applications while in the gas and oil fields. In these scenarios, end users connect to Citrix using local Internet connections, ranging from a wireless access point to a tethered mobile device.
To prevent printer driver issues and sprawl, CGE tries to limit end users to their default printer when accessing Citrix. The IT department at CGE’s headquarters has mandated that only the Citrix Universal Print Driver be utilized. As each region manages its own Citrix infrastructure, this has been difficult to enforce.
Each end user’s home directory is mapped when accessing a Citrix session; the drive-mapping letter varies based on the end user’s region. End-user data is stored on different network device types and shares ranging from a Windows CIFS share to an NAS appliance. Corporate IT is unsure if end-user data is being backed up in all regions. CGE hopes to implement formal, corporate-wide standards in the new Citrix environment.
Access Layer Overview
Since each region has its own Citrix environment, end users are fairly isolated within their specific regions. In each region, NetScaler Gateway and Web Interface provide access for internal and external end users.
In some regions, Citrix Secure Gateway is still being utilized for external access. This is primarily due to a past budget constraint, but CGE hopes to provide a redundant and fault-tolerant Citrix access solution for all regions with the new environment. Confusion with the use of the appropriate URL also occurs for end users travelling among regions. A common access point that routes end users to their closest datacenter would most likely reduce this confusion.
As CGE is sensitive to the research that is being conducted toward the development of new energy types and methods, external access to the Citrix environment must be as secure as possible. Currently, internal and external end users employ single-factor authentication; however, the development of a two-factor authentication process is desired.
Access Controllers
Overview
The following table outlines the utilization of Web Interface, StoreFront, NetScaler Gateway, and Citrix Secure Gateway in the various Citrix environments.
Resource Layer
– Personalization Overview:
The following table outlines the current overall profile strategy:
Corporate IT would like to streamline the profile management solution. Numerous end users complain about slow logon and logoff times, and routine profile corruption is also a concern. It is common for IT to have to reset end-user profiles on a daily basis. CGE hopes to provide a stable end-user profile platform by implementing a standardized set of hardware to host profiles and by employing Citrix Profile Management.
Citrix policies vary from region to region, but corporate IT has tried to enforce the following policy settings (at a minimum):
Technicians and engineers require USB mapping for various field devices such as flow meters and sonar devices. Since the majority of the remaining end-user groups probably do not need USB mapping, this could be disabled for those groups in the new environment.
Corporate IT feels that most end users require only their default printer within a Citrix session. However, other end-user groups (primarily Back Office) need to access multiple printers with advanced printing functionality, such as stapling. In all cases, the need to limit native print drivers is critical.
– Applications Overview:
The majority of end users utilize published applications delivered through one of the regional XenApp farms. Some end-user groups require a full desktop instead of published applications. CGE mandates that no new software (agents) may be deployed in the current desktop infrastructure.
The following table provides additional details about the applications and desktops used throughout the Citrix environments.
Image Design Overview
The following table outlines current application specifics. All servers are Windows 2008 R2 running XenApp 6.5, and all are virtual machines. Applications are delivered based on grouping. For example, Office Suite is installed on a dedicated set of servers.
Control Layer
– Active Directory:
Infrastructure Services
Active Directory
As the solution integrates with Active Directory, resources must be easy to manage and maintain within the directory structure. The following details CGE’s typical organizational unit (OU) structure for the XenApp environments.
Overview
– Databases Overview:
Infrastructure Services
Databases Overview
CGE manages seven XenApp 6.5 farms―one for each region. A variety of SQL server versions host the farm databases. Some databases are located on a shared SQL cluster, while others are standalone.

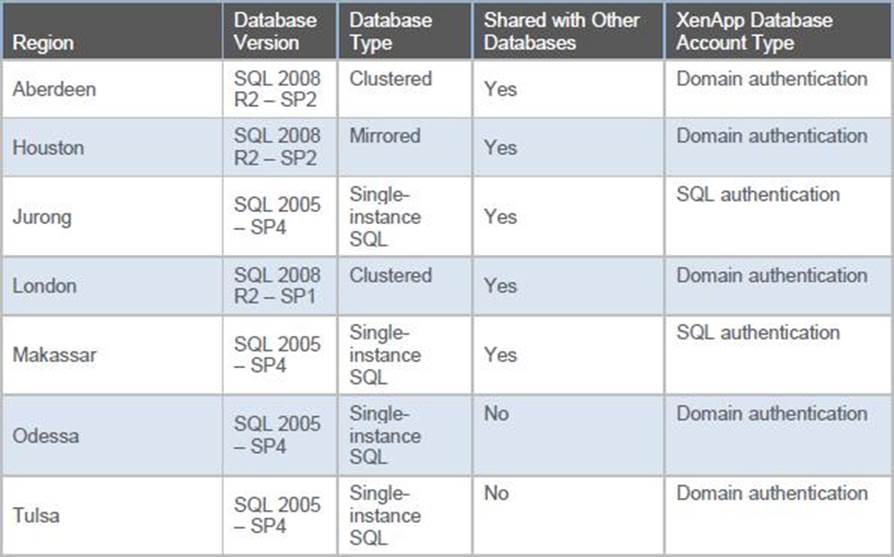

The following table provides an overview of each environment, the database location, and the database configuration.
– Licensing Overview:
Infrastructure Services
Licensing Overview

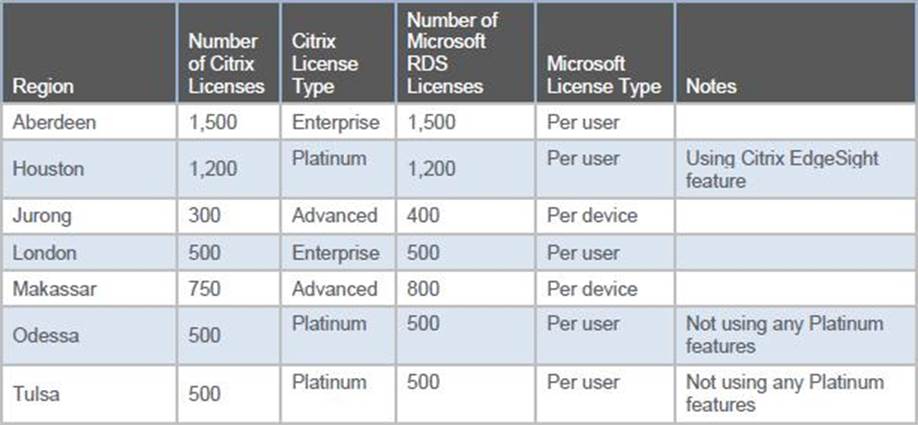

As each region currently manages its own Citrix infrastructure, licensing types vary from region to region. Some regions have more licenses than end users, while others sometimes reach their limit. Each region has its own Citrix and Microsoft license servers.
Corporate IT will be consolidating the Citrix and Microsoft licenses under a common corporate agreement in the new Citrix environment. This will allow for better cost control and appropriate distribution of licenses.
If needed, additional licenses will be procured to support the new Citrix solution. This may involve purchasing additional Microsoft and Citrix licenses to support a disaster recovery model. The following details the current Citrix and Microsoft license types.
XenApp Controllers Overview
All regions use virtualized XenApp 6.5 servers. Some regions currently use Provisioning Services 6.1, but CGE wants to simplify management processes by moving to Provisioning Services 7.6 in each region.
Although there are no test farms in the current Citrix environments, CGE would like to incorporate dedicated test environments in the new Citrix solution. These new test environments should utilize a minimum of storage. The following table details the XenApp environments for each region.
End users in some regions often complain about slow application enumeration and launch issues. Corporate IT hopes that these issues will be resolved with the new Citrix solution.
Hardware Layer
– Storage Overview:
Depending on the region, the physical hosts that provide hardware virtualization use a variety of local and SAN-based storage. Using local storage has prevented virtual machines from moving to another host in the event of a host failure, creating some regional capacity issues. Corporate IT is unsure if end-user data is being backed up in all regions.
CGE hopes to implement global formal standards in the new Citrix environment. A fault-tolerant solution is required for hardware virtualization and end-user data storage.
The following table describes the different storage types based on region:
– Networking Overview:
CGE utilizes regional private networks. Not all regions connect directly to each other. The network links range in size from 5 Mbps to 10 Mbps. The networks are congested at times among regions, causing large file copies to be scheduled during off hours to minimize disruption.
CGE currently has a project underway to increase the bandwidth among regions and reduce latency for the new Citrix environment. The following diagram details the links among the regions.
Each region has a separate Internet connection of varying capacity and utilizes its own local network connection for Internet traffic. Microsoft and routing policies are in place to direct Internet-bound traffic to use this local Internet connection. The goal was to reduce the amount traffic on the links among regions, saving bandwidth for interregional traffic. For external Citrix access, each region uses its local Internet connection. The NetScaler Gateways and Citrix Secure Gateways are placed in a demilitarized zone (DMZ). Appropriate firewall ports are configured to allow the Citrix traffic to navigate to the internal resources.
– Control Hosts Overview:
As CGE acquired several companies within a short period of time, it did not change any of the acquired companies’ infrastructures. This has resulted in regional inconsistency in hypervisor platforms and versions and with hardware vendors.
Corporate IT hopes to streamline the infrastructure to ensure corporate standards are followed. At a minimum, a standard hypervisor platform must be used to allow IT resources to train on a common hypervisor platform and to quickly assist in other regions when needed.
For the new Citrix solution, CGE has budgeted for the replacement of aging infrastructure equipment, where needed, including the hypervisor platform. Procurement of the best infrastructure components within this planned budget must be ensured.
Operations Layer
– Support Overview:
In the current configuration, each region is responsible for supporting its end users and infrastructure. This often leads to confusion for end users who travel, as well as the for the help desk members who work with these end users.
Corporate IT hopes to develop a centralized support structure from the end-user layer to the infrastructure layer. The CIO envisions a model that allows an end user to call one number for support. Regional staff will support the help desk 24 hours a day, seven days a week. If first-tier help desk support is unable to resolve the issue in a timely manner, a second-tier support team would be engaged.
In order to facilitate this troubleshooting model, the first-tier help desk and second-tier support teams would require access to the Citrix infrastructure. The CIO would prefer a centralized console for the help desk team, but it is not a requirement.
In the past, some regions had training budgets, while others did not. This has often resulted in lengthy resolution of issues due to improper training. To alleviate this, the CIO has mandated that the first-tier help desk and second-tier support teams be properly trained in the products being implemented in the new Citrix solution.
– Testing and Change Control Overview:
An analysis revealed that none of the regions have a proper test environment. At best, some regions have a few test XenApp servers in their production farms that are used for testing. In addition, the procedures for implementing changes to the systems vary from region to region. Some regions have a documented change control process, while others install changes as application owners or end users request them. This has resulted in overall poor performance of the Citrix environments and has caused outages in some regions. The CIO has mandated that in the new Citrix solution, a change control board must approve changes, and a separate test environment must be deployed.
– Operations Overview:

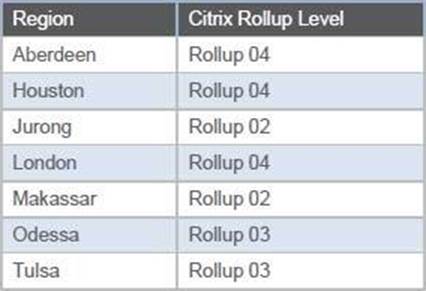

Citrix Rollups and hotfixes are applied sporadically throughout the Citrix farms. The following table details the implementation of Citrix Rollups.
Backups of the Aberdeen, Houston, and London SQL databases are conducted daily via SQL. A nightly backup of the Windows server ensures that the local SQL backup is captured. However, the restoration process has not been tested. The remaining locations lack SQL administrators, so it is unclear if SQL backups are being performed.
The CIO recognizes this gap and is taking steps to ensure that all Citrix databases are routinely backed up. For the short term, the SQL administrators in the Houston location will assume responsibility for the SQL backups in the locations that lack SQL administrators. Since each region has operated independently, no central disaster recovery plan exists. Corporate IT hopes to provide a seamless disaster recovery solution for all locations and believes that it may be possible to utilize regional resources with minimal overhead. Corporate IT feels that it is likely that, in the event of a disaster, only a subset of a region’s end users would require a disaster recovery solution, and believes that approximately 50 percent of regional end users would be a good starting point.
– Monitoring Overview:
The Houston location is the only location using EdgeSight. Corporate IT uses EdgeSight for license trending and occasional end-user troubleshooting. Interviews with the IT staff using EdgeSight revealed that EdgeSight could probably be better utilized. The help desk staff has tried using EdgeSight, but has felt overwhelmed and would prefer a much simpler interface to troubleshoot end-user issues.
CGE recently purchased Tivoli, an antivirus program, and is in the process of rolling it out to all locations. Corporate IT has requested from Citrix Consulting any specific monitoring metrics and alerts related to the Citrix environment. CGE realizes that effective monitoring will allow them to be proactive in addressing issues before they cause critical outages.
The following is CGE’s current antivirus policy:
– Periodic scanning of servers must be conducted at 1:00 a.m., local time, each morning.
– All workstations and servers must have antivirus software installed, and real-time scanning must be enabled.
– Periodic updating of antivirus software is required. Currently, antivirus updates are automatically delivered at 8:00 a.m., 1:00 p.m., 4:00 p.m., and 11:00 p.m., local time.
– Only vendor-required exclusions may be used, and all exclusions must be configured for both real-time and periodic scans.
– Real-time antivirus scanning must be configured to scan files when they are accessed and written.
– All servers must be configured to scan their local drives, and all remote network drive scanning must be disabled. Corporate IT has shared several Citrix articles relating to Citrix product antivirus exclusions with the regions. It is unclear if the regions have implemented these exclusions.
Which component of the CGE environment should be updated before implementing a XenDesktop virtual desktop solution in the Houston datacenter?
- A . Server infrastructure
- B . Network connectivity
- C . Storage infrastructure
- D . Power and cooling infrastructure
A Citrix Architect decides that pooled desktops is the appropriate delivery model for CGE’s Engineers end-user group.
Which two reasons explain the architect’s delivery model decision? (Choose two.)
- A . The CAD application is updated frequently.
- B . It allows engineers to install their own applications.
- C . It isolates CPU and memory resources to single instances.
- D . The instability of the CAD application impacts several end users.
Which tool should a Citrix Architect use to document CGE’s existing printer models?
- A . Print Migrator
- B . Stress Printer
- C . Print Detective
- D . Print Management
Scenario: A Citrix Architect recommends upgrading CGE’s Provisioning Services 6.1 environment to Provisioning Services 7.6. Currently, vDisks in Provisioning Services 6.1 are configured with the write cache location on the target device hard drive.
Which two applications will show increased application performance due to the upgrade to Provisioning Services 7.6? (Choose two.)
- A . SAP
- B . Salesforce
- C . OpenGL (CAD)
- D . Proprietary Energy App
Which risk could lead to a lengthy farm outage in the event of a corrupt SQL data store?
- A . SQL server backups are encrypted
- B . An untested SQL backup and restoration process
- C . SQL servers that are NOT running on the same service packs
- D . The use of SQL Mirroring instead of SQL AlwaysOn Availability Groups
Which option requires the fewest components to implement a fault-tolerant, load-balanced solution for end-user access at each datacenter?
- A . Two StoreFront servers in a single StoreFront server group.
- B . Two NetScalers in a high availability pair, with load balancing pointing to a single StoreFront server.
- C . Three NetScalers in a cluster, with load balancing pointing to two StoreFront servers belonging to the same StoreFront server group.
- D . Two NetScalers in a high availability pair, with load balancing pointing to two StoreFront servers belonging to the same StoreFront server group.
Which reason explains why a Citrix Architect would identify the SQL environment as a cause of potential issues in CGE’s current deployment?
- A . Use of SQL authentication
- B . Lack of backup and restoration procedures
- C . Lack of identical servers in different datacenters
- D . Network bandwidth between congested datacenters
Which two current licensing issues should a Citrix Architect resolve in CGE’s new virtualization design? (Choose two.)
- A . There are more RDS CALs than Citrix licenses.
- B . The Citrix and RDS licenses share the same server.
- C . There are many different license servers in the environment.
- D . There is a mixture of Enterprise, Platinum, and Advanced Citrix licenses in use.
Which end-user group does a Citrix Architect need to consider when designing a remote access solution for CGE?
- A . Sales
- B . Back Office
- C . Technicians
- D . Executives/Management
After careful review of the end users and applications in CGE’s environment, a Citrix Architect has chosen several different FlexCast models for application and desktop delivery.
What are two reasons why the architect would recommend ‘VDI: pooled with PvD’ as an appropriate delivery model for the Desktop – Research application? (Choose two.)
- A . It allows the end users to install custom software.
- B . It gives the end users full rights over the system drive.
- C . It requires less storage space than dedicated desktops.
- D . It allows for high availability in a disaster recovery scenario.
A Citrix Architect plans to update the virtual environment in CGE’s Jurong datacenter.
Which constraint should the architect address to satisfy CGE’s stated business needs?
- A . Lack of shared storage
- B . 1 Gb network infrastructure
- C . Datacenter power and cooling
- D . Mixed-server hardware landscape
Which two factors should a Citrix Architect consider with regard to CGE’s Back Office end-user group? (Choose two.)
- A . Their need for a special application set
- B . Their need to access additional printers
- C . Their need to install their own applications
- D . Their need to use non-corporate-owned devices
What should a Citrix Architect do to simplify printer driver management for CGE’s Back Office end-user group?
- A . Use the Citrix Universal Print Server.
- B . Enforce the use of the Citrix Universal Printer Driver.
- C . Manually install printer drivers on the XenApp servers.
- D . Modify the printer driver format of the Citrix Universal Printer Driver.
A Citrix Architect recommends that the SAP and Office Suite images be consolidated into a single image.
Which two factors helped guide the architect’s recommendation? (Choose two.)
- A . A reduction in Hotfix testing time
- B . CGE’s planned upgrade to Microsoft Office 2013
- C . The use of both applications by all CGE end users
- D . End-user complaints about slow application launch times
Which two issues could CGE’s current home directory storage strategy cause? (Choose two.)
- A . Slow logons
- B . Unverified data backups
- C . High IOPS on the storage appliance
- D . High CPU usage on the XenApp servers
Testlet 1
Executive Summary
Project Overview
CGE is a global, diversified, upstream (exploration and production) oil and gas company headquartered in North America. CGE’s three main operating areas are North America, Europe, and Southeast Asia. CGE also has a portfolio of international exploration opportunities. CGE began in North America as a small, upstream oil and gas company. Through acquisitions, CGE grew quickly and acquired companies globally. This led to a decentralized IT model, both from systems and personnel perspectives.
CGE currently utilizes several Citrix technologies to provide application virtualization to a global end-user base spread across several continents. Its current IT model for application virtualization is based on regional locations; each region hosts its own Citrix environment to support its local end-user base. CGE is moving toward a global IT model in which the entire application and desktop virtualization environment will be hosted in three data centers, each with a highly available NetScaler pair.
CGE would like to provide dedicated desktops to some end-user groups to alleviate past issues with applications and performance. In addition, an Internet upgrade project is underway to eliminate slow connections at all sites. This will improve latency and bandwidth issues throughout the environments.
CGE engaged Citrix Consulting to determine whether best practices are being followed in its existing Citrix environments; to provide a design document for a new, consolidated Citrix environment; and to point out risks that should be resolved before moving to this new environment. This deliverable represents the output of the requirements gathering phase and will be used as an input during the architectural design phase of this engagement.
Through interactive meetings, Citrix Consulting obtained information regarding CGE’s existing Citrix XenApp environments and strategic goals. By reviewing this information, CGE can understand and methodically address those areas that represent the most profound risks, improve various facets of its current environments, and prepare for the future design phase of a consolidated environment.
Project Goals
During the course of the project, CGE and Citrix Consulting identified a number of project goals.
The following summarizes these goals:
– Perform a detailed assessment of the Citrix components supporting the existing Citrix environments, which include XenApp 6.x, XenServer, and NetScaler Gateway.
– Review relevant peripheral components that support the existing Citrix environments (for example, Active Directory, storage, SQL, networking) to determine if each can support current production workloads and a new Citrix environment.
– Identify operational and environmental improvements to better account for the environments’ growth.
Overview
CGE has locations spread across three primary regions―North America, Europe, and Southeast Asia― with its primary headquarters located in Houston. Sub regions exist within each region, each with its own Citrix infrastructure. Once power and cooling upgrades are complete, Houston will be the primary datacenter and London will be the secondary datacenter.
The following diagram details the locations and network connection types.
Business Layer Overview
Since CGE expanded quickly through acquisitions, corporate IT left infrastructure management up to the acquired companies. As a result, some regions have well-run Citrix environments, while others experience critical outages that simultaneously affect hundreds of end users. CGE’s CIO, who has been with CGE for slightly less than a year, was hired to be the central point for IT across all regions. The CIO has engaged with the various business units to understand their processes and received various complaints about the stability of the existing Citrix infrastructures.
The CIO feels that the majority of Citrix infrastructure issues are due to a lack of centralized control and common platforms. Some regions have older versions of XenApp, while some are more current. As CGE moves forward, the CIO plans to use a single vendor for the entire solution, and wants to ensure that the new infrastructure is virtualized and fault tolerant.
End-User Layer Overview
CGE has 10,350 employees, approximately 4,700 of which access the Citrix environments daily. Peak logon times are Monday through Friday, from 8:00 a.m. C 10:00 a.m., based on local, regional time zones. Technicians and engineers are shift workers who rotate to accommodate a 24 hours a day, seven days a week schedule.
End user distribution is as follows:
The majority of end users connect using CGE-owned HP laptop and desktop devices. Over 90 percent of these devices are Windows 7-based, as CGE is in the process of completing a Windows XP to Windows 7 migration.
CGE has standardized all these devices on Citrix Online Plug-in for Windows12.1, and is in the process of testing Receiver for Windows 4.2. In the past, some end users have complained about slowness when typing, which may indicate issues with latency.
CGE also allows end users to connect using non-corporate-owned devices. Many end users connect from personal computers and mobile devices such as Apple iPads and iPhones. End users are instructed to download Citrix Receiver from either the Citrix website or the Android or Apple app stores.
End users can be grouped into six separate categories:
– Executives/Management C Regional upper- and mid-level management staff.
– Back Office C End users that provide functions such as accounting, administration, human resources, and finance.
– Research C End users focus mainly on discovering new energy fields and sources.
– Engineers C End users who work with technicians in a senior lead role for both technical and management functions. There is approximately one engineer for every five technicians.
– Technicians C Field workers who service the oil and gas equipment.
– Sales C Primary customer-facing group.
End-user groups and numbers are as follows:
The engineers, technicians, and research groups access Citrix applications primarily in an office-type environment, but may need to access these applications while in the gas and oil fields. In these scenarios, end users connect to Citrix using local Internet connections, ranging from a wireless access point to a tethered mobile device.
To prevent printer driver issues and sprawl, CGE tries to limit end users to their default printer when accessing Citrix. The IT department at CGE’s headquarters has mandated that only the Citrix Universal Print Driver be utilized. As each region manages its own Citrix infrastructure, this has been difficult to enforce.
Each end user’s home directory is mapped when accessing a Citrix session; the drive-mapping letter varies based on the end user’s region. End-user data is stored on different network device types and shares ranging from a Windows CIFS share to an NAS appliance. Corporate IT is unsure if end-user data is being backed up in all regions. CGE hopes to implement formal, corporate-wide standards in the new Citrix environment.
Access Layer Overview
Since each region has its own Citrix environment, end users are fairly isolated within their specific regions. In each region, NetScaler Gateway and Web Interface provide access for internal and external end users.
In some regions, Citrix Secure Gateway is still being utilized for external access. This is primarily due to a past budget constraint, but CGE hopes to provide a redundant and fault-tolerant Citrix access solution for all regions with the new environment. Confusion with the use of the appropriate URL also occurs for end users travelling among regions. A common access point that routes end users to their closest datacenter would most likely reduce this confusion.
As CGE is sensitive to the research that is being conducted toward the development of new energy types and methods, external access to the Citrix environment must be as secure as possible. Currently, internal and external end users employ single-factor authentication; however, the development of a two-factor authentication process is desired.
Access Controllers
Overview
The following table outlines the utilization of Web Interface, StoreFront, NetScaler Gateway, and Citrix Secure Gateway in the various Citrix environments.
Resource Layer
– Personalization Overview:
The following table outlines the current overall profile strategy:
Corporate IT would like to streamline the profile management solution. Numerous end users complain
about slow logon and logoff times, and routine profile corruption is also a concern. It is common for IT to have to reset end-user profiles on a daily basis. CGE hopes to provide a stable end-user profile platform by implementing a standardized set of hardware to host profiles and by employing Citrix Profile Management.
Citrix policies vary from region to region, but corporate IT has tried to enforce the following policy settings (at a minimum):
Technicians and engineers require USB mapping for various field devices such as flow meters and sonar devices. Since the majority of the remaining end-user groups probably do not need USB mapping, this could be disabled for those groups in the new environment.
Corporate IT feels that most end users require only their default printer within a Citrix session. However, other end-user groups (primarily Back Office) need to access multiple printers with advanced printing functionality, such as stapling. In all cases, the need to limit native print drivers is critical.
– Applications Overview:
The majority of end users utilize published applications delivered through one of the regional XenApp farms. Some end-user groups require a full desktop instead of published applications. CGE mandates that no new software (agents) may be deployed in the current desktop infrastructure. The following table provides additional details about the applications and desktops used throughout the Citrix environments.
– Image Design Overview:
The following table outlines current application specifics. All servers are Windows 2008 R2 running XenApp 6.5, and all are virtual machines. Applications are delivered based on grouping. For example, Office Suite is installed on a dedicated set of servers.
Control Layer
– Infrastructure Services:
Active Directory
As the solution integrates with Active Directory, resources must be easy to manage and maintain within the directory structure. The following details CGE’s typical organizational unit (OU) structure for the XenApp environments.
Overview
Databases Overview
CGE manages seven XenApp 6.5 farms―one for each region. A variety of SQL server versions host the farm databases. Some databases are located on a shared SQL cluster, while others are standalone.
The following table provides an overview of each environment, the database location, and the database configuration.
Licensing Overview
As each region currently manages its own Citrix infrastructure, licensing types vary from region to region. Some regions have more licenses than end users, while others sometimes reach their limit. Each region has its own Citrix and Microsoft license servers. Corporate IT will be consolidating the Citrix and Microsoft licenses under a common corporate agreement in the new Citrix environment. This will allow for better cost control and appropriate distribution of licenses.
If needed, additional licenses will be procured to support the new Citrix solution. This may involve purchasing additional Microsoft and Citrix licenses to support a disaster recovery model.
The following details the current Citrix and Microsoft license types.
– XenApp Controllers Overview:
All regions use virtualized XenApp 6.5 servers. Some regions currently use Provisioning Services 6.1, but CGE wants to simplify management processes by moving to Provisioning Services 7.6 in each region. Although there are no test farms in the current Citrix environments, CGE would like to incorporate dedicated test environments in the new Citrix solution. These new test environments should utilize a minimum of storage. The following table details the XenApp environments for each region.
End users in some regions often complain about slow application enumeration and launch issues. Corporate IT hopes that these issues will be resolved with the new Citrix solution.
Hardware Layer
– Storage Overview:
Depending on the region, the physical hosts that provide hardware virtualization use a variety of local and SAN-based storage. Using local storage has prevented virtual machines from moving to another host in the event of a host failure, creating some regional capacity issues. Corporate IT is unsure if end-user data is being backed up in all regions.
CGE hopes to implement global formal standards in the new Citrix environment. A fault-tolerant solution is required for hardware virtualization and end-user data storage.
The following table describes the different storage types based on region:
– Networking Overview:
CGE utilizes regional private networks. Not all regions connect directly to each other. The network links range in size from 5 Mbps to 10 Mbps. The networks are congested at times among regions, causing large file copies to be scheduled during off hours to minimize disruption. CGE currently has a project underway to increase the bandwidth among regions and reduce latency for the new Citrix environment. The following diagram details the links among the regions.
Each region has a separate Internet connection of varying capacity and utilizes its own local network connection for Internet traffic. Microsoft and routing policies are in place to direct Internet-bound traffic to use this local Internet connection. The goal was to reduce the amount traffic on the links among regions, saving bandwidth for interregional traffic.
For external Citrix access, each region uses its local Internet connection. The NetScaler Gateways and Citrix Secure Gateways are placed in a demilitarized zone (DMZ). Appropriate firewall ports are configured to allow the Citrix traffic to navigate to the internal resources.
– Control Hosts Overview:
As CGE acquired several companies within a short period of time, it did not change any of the acquired companies’ infrastructures. This has resulted in regional inconsistency in hypervisor platforms and versions and with hardware vendors. Corporate IT hopes to streamline the infrastructure to ensure corporate standards are followed. At a
minimum, a standard hypervisor platform must be used to allow IT resources to train on a common hypervisor platform and to quickly assist in other regions when needed. For the new Citrix solution, CGE has budgeted for the replacement of aging infrastructure equipment, where needed, including the hypervisor platform. Procurement of the best infrastructure components within this planned budget must be ensured.
Operations Layer
– Support Overview:
In the current configuration, each region is responsible for supporting its end users and infrastructure. This often leads to confusion for end users who travel, as well as the for the help desk members who work with these end users. Corporate IT hopes to develop a centralized support structure from the end-user layer to the infrastructure layer. The CIO envisions a model that allows an end user to call one number for support. Regional staff will support the help desk 24 hours a day, seven days a week. If first-tier help desk support is unable to resolve the issue in a timely manner, a second-tier support team would be engaged. In order to facilitate this troubleshooting model, the first-tier help desk and second-tier support teams would require access to the Citrix infrastructure. The CIO would prefer a centralized console for the help desk team, but it is not a requirement. In the past, some regions had training budgets, while others did not. This has often resulted in lengthy resolution of issues due to improper training. To alleviate this, the CIO has mandated that the first-tier help desk and second-tier support teams be properly trained in the products being implemented in the new Citrix solution.
– Testing and Change Control Overview:
An analysis revealed that none of the regions have a proper test environment. At best, some regions have a few test XenApp servers in their production farms that are used for testing. In addition, the procedures for implementing changes to the systems vary from region to region. Some regions have a documented change control process, while others install changes as application owners or end users request them. This has resulted in overall poor performance of the Citrix environments and has caused outages in some regions. The CIO has mandated that in the new Citrix solution, a change control board must approve changes, and a separate test environment must be deployed.
– Operations Overview:
Citrix Rollups and hotfixes are applied sporadically throughout the Citrix farms. The following table details the implementation of Citrix Rollups.
Backups of the Aberdeen, Houston, and London SQL databases are conducted daily via SQL. A nightly backup of the Windows server ensures that the local SQL backup is captured. However, the restoration process has not been tested. The remaining locations lack SQL administrators, so it is unclear if SQL backups are being performed.
The CIO recognizes this gap and is taking steps to ensure that all Citrix databases are routinely backed up. For the short term, the SQL administrators in the Houston location will assume responsibility for the SQL backups in the locations that lack SQL administrators.
Since each region has operated independently, no central disaster recovery plan exists. Corporate IT hopes to provide a seamless disaster recovery solution for all locations and believes that it may be possible to utilize regional resources with minimal overhead. Corporate IT feels that it is likely that, in the event of a disaster, only a subset of a region’s end users would require a disaster recovery solution, and believes that approximately 50 percent of regional end users would be a good starting point.
– Monitoring Overview:
The Houston location is the only location using EdgeSight. Corporate IT uses EdgeSight for license trending and occasional end-user troubleshooting. Interviews with the IT staff using EdgeSight revealed that EdgeSight could probably be better utilized. The help desk staff has tried using EdgeSight, but has felt overwhelmed and would prefer a much simpler interface to troubleshoot end-user issues.
CGE recently purchased Tivoli, an antivirus program, and is in the process of rolling it out to all locations. Corporate IT has requested from Citrix Consulting any specific monitoring metrics and alerts related to the Citrix environment. CGE realizes that effective monitoring will allow them to be proactive in addressing issues before they cause critical outages.
The following is CGE’s current antivirus policy:
– Periodic scanning of servers must be conducted at 1:00 a.m., local time, each morning.
– All workstations and servers must have antivirus software installed, and real-time scanning must be enabled.
– Periodic updating of antivirus software is required. Currently, antivirus updates are automatically delivered at 8:00 a.m., 1:00 p.m., 4:00 p.m., and 11:00 p.m., local time.
– Only vendor-required exclusions may be used, and all exclusions must be configured for both real-time and periodic scans.
– Real-time antivirus scanning must be configured to scan files when they are accessed and written.
– All servers must be configured to scan their local drives, and all remote network drive scanning must be disabled. Corporate IT has shared several Citrix articles relating to Citrix product antivirus exclusions with the regions. It is unclear if the regions have implemented these exclusions.
Which two risks exist in the access layer of the CGE environment? (Choose two.)
- A . Secure Gateway is used by some sites.
- B . Single-factor authentication is in use for external end users.
- C . Receiver for mobile devices is installed from third-party stores.
- D . End-user connections from non-corporate-owned devices are allowed.
Which two issues should a Citrix Architect address for end users? (Choose two.)
- A . Profile corruption
- B . Slow logon and logoff times
- C . Connections from non-corporate-owned devices
- D . Single-factor authentication for internal end users
Scenario: A Citrix Architect is estimating the required minimum bandwidth needed for CGE’s Aberdeen Engineers end-user group. To calculate this, the architect uses the Citrix published minimum figure for HDX 3D Pro bandwidth usage.
What is the minimum bandwidth required to support the Engineers end-user group located in Aberdeen?
- A . 50 Mb/s
- B . 150 Mb/s
- C . 300 Mb/s
- D . 600 Mb/s
Which two FlexCast models should a Citrix Architect consider for the Research end-user group? (Choose two.)
- A . Remote PC Access
- B . Hosted Shared
- C . Streamed VHD
- D . On-Demand Apps
- E . Hosted VDI: Static Persistent
Testlet 1
Executive Summary
Project Overview
CGE is a global, diversified, upstream (exploration and production) oil and gas company headquartered in North America. CGE’s three main operating areas are North America, Europe, and Southeast Asia. CGE also has a portfolio of international exploration opportunities. CGE began in North America as a small, upstream oil and gas company. Through acquisitions, CGE grew quickly and acquired companies globally. This led to a decentralized IT model, both from systems and personnel perspectives. CGE currently utilizes several Citrix technologies to provide application virtualization to a global end-user base spread across several continents. Its current IT model for application virtualization is based on regional locations; each region hosts its own Citrix environment to support its local end-user base. CGE is moving toward a global IT model in which the entire application and desktop virtualization environment will be hosted in three data centers, each with a highly available NetScaler pair. CGE would like to provide dedicated desktops to some end-user groups to alleviate past issues with applications and performance. In addition, an Internet upgrade project is underway to eliminate slow connections at all sites. This will improve latency and bandwidth issues throughout the environments. CGE engaged Citrix Consulting to determine whether best practices are being followed in its existing Citrix environments; to provide a design document for a new, consolidated Citrix environment; and to point out risks that should be resolved before moving to this new environment. This deliverable represents the output of the requirements gathering phase and will be used as an input during the architectural design phase of this engagement. Through interactive meetings, Citrix Consulting obtained information regarding CGE’s existing Citrix XenApp environments and strategic goals. By reviewing this information, CGE can understand and methodically address those areas that represent the most profound risks, improve various facets of its current environments, and prepare for the future design phase of a consolidated environment.
Project Goals
During the course of the project, CGE and Citrix Consulting identified a number of project goals.
The following summarizes these goals:
– Perform a detailed assessment of the Citrix components supporting the existing Citrix environments, which include XenApp 6.x, XenServer, and NetScaler Gateway.
– Review relevant peripheral components that support the existing Citrix environments (for example, Active Directory, storage, SQL, networking) to determine if each can support current production workloads and a new Citrix environment.
– Identify operational and environmental improvements to better account for the environments’ growth.
Overview
CGE has locations spread across three primary regions―North America, Europe, and Southeast Asia― with its primary headquarters located in Houston. Sub regions exist within each region, each with its own Citrix infrastructure. Once power and cooling upgrades are complete, Houston will be the primary datacenter and London will be the secondary datacenter.
The following diagram details the locations and network connection types.
Business Layer Overview
Since CGE expanded quickly through acquisitions, corporate IT left infrastructure management up to the acquired companies. As a result, some regions have well-run Citrix environments, while others experience critical outages that simultaneously affect hundreds of end users.
CGE’s CIO, who has been with CGE for slightly less than a year, was hired to be the central point for IT across all regions. The CIO has engaged with the various business units to understand their processes and received various complaints about the stability of the existing Citrix infrastructures.
The CIO feels that the majority of Citrix infrastructure issues are due to a lack of centralized control and common platforms. Some regions have older versions of XenApp, while some are more current. As CGE moves forward, the CIO plans to use a single vendor for the entire solution, and wants to ensure that the new infrastructure is virtualized and fault tolerant.
End-User Layer Overview
CGE has 10,350 employees, approximately 4,700 of which access the Citrix environments daily. Peak logon times are Monday through Friday, from 8:00 a.m. C 10:00 a.m., based on local, regional time zones. Technicians and engineers are shift workers who rotate to accommodate a 24 hours a day, seven days a week schedule.
End user distribution is as follows:
The majority of end users connect using CGE-owned HP laptop and desktop devices. Over 90 percent of these devices are Windows 7-based, as CGE is in the process of completing a Windows XP to Windows 7
migration.
CGE has standardized all these devices on Citrix Online Plug-in for Windows12.1, and is in the process of testing Receiver for Windows 4.2. In the past, some end users have complained about slowness when typing, which may indicate issues with latency.
CGE also allows end users to connect using non-corporate-owned devices. Many end users connect from personal computers and mobile devices such as Apple iPads and iPhones. End users are instructed to download Citrix Receiver from either the Citrix website or the Android or Apple app stores.
End users can be grouped into six separate categories:
– Executives/Management C Regional upper- and mid-level management staff.
– Back Office C End users that provide functions such as accounting, administration, human resources, and finance.
– Research C End users focus mainly on discovering new energy fields and sources.
– Engineers C End users who work with technicians in a senior lead role for both technical and management functions. There is approximately one engineer for every five technicians.
– Technicians C Field workers who service the oil and gas equipment.
– Sales C Primary customer-facing group.
End-user groups and numbers are as follows:
The engineers, technicians, and research groups access Citrix applications primarily in an office-type environment, but may need to access these applications while in the gas and oil fields. In these scenarios, end users connect to Citrix using local Internet connections, ranging from a wireless access point to a tethered mobile device.
To prevent printer driver issues and sprawl, CGE tries to limit end users to their default printer when accessing Citrix. The IT department at CGE’s headquarters has mandated that only the Citrix Universal Print Driver be utilized. As each region manages its own Citrix infrastructure, this has been difficult to enforce.
Each end user’s home directory is mapped when accessing a Citrix session; the drive-mapping letter varies based on the end user’s region. End-user data is stored on different network device types and shares ranging from a Windows CIFS share to an NAS appliance. Corporate IT is unsure if end-user data is being backed up in all regions. CGE hopes to implement formal, corporate-wide standards in the new Citrix environment.
Access Layer Overview
Since each region has its own Citrix environment, end users are fairly isolated within their specific regions. In each region, NetScaler Gateway and Web Interface provide access for internal and external end users.
In some regions, Citrix Secure Gateway is still being utilized for external access. This is primarily due to a past budget constraint, but CGE hopes to provide a redundant and fault-tolerant Citrix access solution for all regions with the new environment. Confusion with the use of the appropriate URL also occurs for end users travelling among regions. A common access point that routes end users to their closest datacenter would most likely reduce this confusion.
As CGE is sensitive to the research that is being conducted toward the development of new energy types and methods, external access to the Citrix environment must be as secure as possible. Currently, internal and external end users employ single-factor authentication; however, the development of a two-factor authentication process is desired.
Access Controllers
Overview
The following table outlines the utilization of Web Interface, StoreFront, NetScaler Gateway, and Citrix Secure Gateway in the various Citrix environments.
Resource Layer
– Personalization Overview:
The following table outlines the current overall profile strategy:
Corporate IT would like to streamline the profile management solution. Numerous end users complain about slow logon and logoff times, and routine profile corruption is also a concern. It is common for IT to have to reset end-user profiles on a daily basis. CGE hopes to provide a stable end-user profile platform by implementing a standardized set of hardware to host profiles and by employing Citrix Profile Management.
Citrix policies vary from region to region, but corporate IT has tried to enforce the following policy settings (at a minimum):
Technicians and engineers require USB mapping for various field devices such as flow meters and sonar devices. Since the majority of the remaining end-user groups probably do not need USB mapping, this could be disabled for those groups in the new environment.
Corporate IT feels that most end users require only their default printer within a Citrix session. However, other end-user groups (primarily Back Office) need to access multiple printers with advanced printing functionality, such as stapling. In all cases, the need to limit native print drivers is critical.
– Applications Overview:
The majority of end users utilize published applications delivered through one of the regional XenApp farms. Some end-user groups require a full desktop instead of published applications. CGE mandates that no new software (agents) may be deployed in the current desktop infrastructure.
The following table provides additional details about the applications and desktops used throughout the Citrix environments.
Image Design Overview
The following table outlines current application specifics. All servers are Windows 2008 R2 running XenApp 6.5, and all are virtual machines. Applications are delivered based on grouping. For example, Office Suite is installed on a dedicated set of servers.
Control Layer
– Active Directory:
Infrastructure Services
Active Directory
As the solution integrates with Active Directory, resources must be easy to manage and maintain within the directory structure. The following details CGE’s typical organizational unit (OU) structure for the XenApp environments.
Overview
– Databases Overview:
Infrastructure Services
Databases Overview
CGE manages seven XenApp 6.5 farms―one for each region. A variety of SQL server versions host the farm databases. Some databases are located on a shared SQL cluster, while others are standalone.
The following table provides an overview of each environment, the database location, and the database configuration.
– Licensing Overview:
Infrastructure Services
Licensing Overview
As each region currently manages its own Citrix infrastructure, licensing types vary from region to region. Some regions have more licenses than end users, while others sometimes reach their limit. Each region has its own Citrix and Microsoft license servers.
Corporate IT will be consolidating the Citrix and Microsoft licenses under a common corporate agreement in the new Citrix environment. This will allow for better cost control and appropriate distribution of licenses.
If needed, additional licenses will be procured to support the new Citrix solution. This may involve purchasing additional Microsoft and Citrix licenses to support a disaster recovery model. The following details the current Citrix and Microsoft license types.
XenApp Controllers Overview
All regions use virtualized XenApp 6.5 servers. Some regions currently use Provisioning Services 6.1, but CGE wants to simplify management processes by moving to Provisioning Services 7.6 in each region.
Although there are no test farms in the current Citrix environments, CGE would like to incorporate dedicated test environments in the new Citrix solution. These new test environments should utilize a minimum of storage. The following table details the XenApp environments for each region.
End users in some regions often complain about slow application enumeration and launch issues. Corporate IT hopes that these issues will be resolved with the new Citrix solution.
Hardware Layer
– Storage Overview:
Depending on the region, the physical hosts that provide hardware virtualization use a variety of local and SAN-based storage. Using local storage has prevented virtual machines from moving to another host in the event of a host failure, creating some regional capacity issues. Corporate IT is unsure if end-user data is being backed up in all regions.
CGE hopes to implement global formal standards in the new Citrix environment. A fault-tolerant solution is required for hardware virtualization and end-user data storage.
The following table describes the different storage types based on region:
– Networking Overview:
CGE utilizes regional private networks. Not all regions connect directly to each other. The network links range in size from 5 Mbps to 10 Mbps. The networks are congested at times among regions, causing large file copies to be scheduled during off hours to minimize disruption.
CGE currently has a project underway to increase the bandwidth among regions and reduce latency for the new Citrix environment. The following diagram details the links among the regions.
Each region has a separate Internet connection of varying capacity and utilizes its own local network connection for Internet traffic. Microsoft and routing policies are in place to direct Internet-bound traffic to use this local Internet connection. The goal was to reduce the amount traffic on the links among regions, saving bandwidth for interregional traffic. For external Citrix access, each region uses its local Internet connection. The NetScaler Gateways and Citrix Secure Gateways are placed in a demilitarized zone (DMZ). Appropriate firewall ports are configured to allow the Citrix traffic to navigate to the internal resources.
– Control Hosts Overview:
As CGE acquired several companies within a short period of time, it did not change any of the acquired companies’ infrastructures. This has resulted in regional inconsistency in hypervisor platforms and versions and with hardware vendors.
Corporate IT hopes to streamline the infrastructure to ensure corporate standards are followed. At a minimum, a standard hypervisor platform must be used to allow IT resources to train on a common hypervisor platform and to quickly assist in other regions when needed.
For the new Citrix solution, CGE has budgeted for the replacement of aging infrastructure equipment, where needed, including the hypervisor platform. Procurement of the best infrastructure components within this planned budget must be ensured.
Operations Layer
– Support Overview:
In the current configuration, each region is responsible for supporting its end users and infrastructure. This often leads to confusion for end users who travel, as well as the for the help desk members who work with these end users.
Corporate IT hopes to develop a centralized support structure from the end-user layer to the infrastructure layer. The CIO envisions a model that allows an end user to call one number for support. Regional staff will support the help desk 24 hours a day, seven days a week. If first-tier help desk support is unable to resolve the issue in a timely manner, a second-tier support team would be engaged.
In order to facilitate this troubleshooting model, the first-tier help desk and second-tier support teams would require access to the Citrix infrastructure. The CIO would prefer a centralized console for the help desk team, but it is not a requirement.
In the past, some regions had training budgets, while others did not. This has often resulted in lengthy resolution of issues due to improper training. To alleviate this, the CIO has mandated that the first-tier help desk and second-tier support teams be properly trained in the products being implemented in the new Citrix solution.
– Testing and Change Control Overview:
An analysis revealed that none of the regions have a proper test environment. At best, some regions have a few test XenApp servers in their production farms that are used for testing. In addition, the procedures for implementing changes to the systems vary from region to region. Some regions have a documented change control process, while others install changes as application owners or end users request them. This has resulted in overall poor performance of the Citrix environments and has caused outages in some regions. The CIO has mandated that in the new Citrix solution, a change control board must approve changes, and a separate test environment must be deployed.
– Operations Overview:
Citrix Rollups and hotfixes are applied sporadically throughout the Citrix farms. The following table details the implementation of Citrix Rollups.
Backups of the Aberdeen, Houston, and London SQL databases are conducted daily via SQL. A nightly backup of the Windows server ensures that the local SQL backup is captured. However, the restoration process has not been tested. The remaining locations lack SQL administrators, so it is unclear if SQL backups are being performed.
The CIO recognizes this gap and is taking steps to ensure that all Citrix databases are routinely backed up. For the short term, the SQL administrators in the Houston location will assume responsibility for the SQL backups in the locations that lack SQL administrators. Since each region has operated independently, no central disaster recovery plan exists. Corporate IT hopes to provide a seamless disaster recovery solution for all locations and believes that it may be possible to utilize regional resources with minimal overhead. Corporate IT feels that it is likely that, in the event of a disaster, only a subset of a region’s end users would require a disaster recovery solution, and believes that approximately 50 percent of regional end users would be a good starting point.
– Monitoring Overview:
The Houston location is the only location using EdgeSight. Corporate IT uses EdgeSight for license trending and occasional end-user troubleshooting. Interviews with the IT staff using EdgeSight revealed that EdgeSight could probably be better utilized. The help desk staff has tried using EdgeSight, but has felt overwhelmed and would prefer a much simpler interface to troubleshoot end-user issues.
CGE recently purchased Tivoli, an antivirus program, and is in the process of rolling it out to all locations. Corporate IT has requested from Citrix Consulting any specific monitoring metrics and alerts related to the Citrix environment. CGE realizes that effective monitoring will allow them to be proactive in addressing issues before they cause critical outages.
The following is CGE’s current antivirus policy:
– Periodic scanning of servers must be conducted at 1:00 a.m., local time, each morning.
– All workstations and servers must have antivirus software installed, and real-time scanning must be enabled.
– Periodic updating of antivirus software is required. Currently, antivirus updates are automatically delivered at 8:00 a.m., 1:00 p.m., 4:00 p.m., and 11:00 p.m., local time.
– Only vendor-required exclusions may be used, and all exclusions must be configured for both real-time and periodic scans.
– Real-time antivirus scanning must be configured to scan files when they are accessed and written.
– All servers must be configured to scan their local drives, and all remote network drive scanning must be disabled. Corporate IT has shared several Citrix articles relating to Citrix product antivirus exclusions with the regions. It is unclear if the regions have implemented these exclusions.
What should CGE do to all corporate-owned and non-corporate-owned Windows client devices to ensure an optimal end-user experience?
- A . Upgrade all clients to Receiver 4.2.
- B . Install native printer drivers on all clients.
- C . Install the CloudBridge Plug-in on all clients.
- D . Install Citrix Profile management on all clients.
Which tool should a Citrix Architect use to investigate slow logon times for the Executives/Management and Back Office end-user groups in the Houston office?
- A . CDFControl utility
- B . Citrix EdgeSight console
- C . Citrix AppCenter console
- D . Group Policy Management console
Which profile type would NOT be suitable for the Back Office end-user group?
- A . Local
- B . Roaming
- C . Mandatory
- D . Citrix Profile management
Which action would improve the end-user experience for Technicians and Engineers?
- A . Apply a Citrix policy to enable lossless graphics
- B . Apply a Citrix policy to disable Queuing and Tossing
- C . Apply a Citrix policy to enable Desktop Composition Redirection
- D . Apply a Citrix policy to limit graphics quality based on available bandwidth
Which two CGE end-user groups do NOT currently have their profile settings retained between sessions? (Choose two.)
- A . Sales
- B . Engineers
- C . Technicians
- D . Executives/Management
What should a Citrix Architect identify as a potential security risk that should be resolved in the next design, based on the current provision for external access?
- A . Web Interface is used
- B . Online Plug-in 12.1 is used
- C . NetScaler Gateway is used to load balance StoreFront
- D . Single-factor authentication is used for external access
Which two factors present a risk to the availability of the CGE environment based on the current provision for external access to it? (Choose two.)
- A . Single-factor authentication is used for external access.
- B . There are single Secure Gateway servers in some locations.
- C . NetScaler Gateway is being used to load balance StoreFront.
- D . There is no automatic failover between regions for end users.
Which change to the corporate Windows 7 client would prevent single sign-on to the infrastructure using the end user’s Active Directory account?
- A . A Smart Card reader is installed to allow the end user to log on with an X509 certificate issued by the Active Directory Certificate Authority.
- B . The workstation has the ‘Interactive login: Do not display last user name’ policy applied and enforced by Group Policy Object (GPO).
- C . The native Windows Receiver is removed and end users can access the environment using the HTML Receiver through a web browser.
- D . The Windows workstation is joined to a different domain than where the end user account resides, and the two domains are in the same forest.
CGE decided that all end users must use two-factor authentication to connect remotely to the Citrix environment.
Which two sites will be able to support this requirement for Citrix Receiver for iOS and Android? (Choose two.)
- A . Tulsa
- B . Jurong
- C . London
- D . Odessa
- E . Houston
- F . Aberdeen
- G . Makassar
Scenario:
CGE decided to disable USB device redirection by default for all end users in the new environment using Citrix policies. The only exception is if there is a clear requirement for end users to have this functionality. For which two end-user groups should a Citrix Architect configure an exception policy to enable USB device redirection? (Choose two.)
- A . Research
- B . Engineers
- C . Back Office
- D . Technicians
Scenario:
The Executives/Management end-user group accesses the Citrix environment while in the office using tablets and mobile devices. These end users have requested the ability to print documents from their Citrix session.
Which recommendation should a Citrix Architect make to fulfill this request while using the minimum number of printer drivers?
- A . Use client printing and the Universal Printer Driver.
- B . Use network printers connected with Citrix Policies.
- C . Use the Universal Print Server and Universal Printer Driver.
- D . Use network printers connected with Group Policy Preferences.
Which tool should a Citrix Architect use to collect session latency and bandwidth requirements for end users in the Jurong office?
- A . HDX Monitor
- B . Citrix Director
- C . Citrix EdgeSight
- D . Citrix AppCenter Console
Which two- factor authentication solution would resolve the gaps in the current CGE environment, and meet the business and security requirements based on the current client types in use?
- A . A physical token carried by the end user
- B . X509 certificates stored on a Smart Card
- C . A complex Active Directory password enforced by Group Policy D. RADIUS authentication with an Employee ID Number
CGE has a baseline policy that allows only the client’s default printer to be available in the Citrix session.
Which end-user group requires an exception policy to override this and allow multiple printers to be available in the Citrix session?
- A . Research
- B . Engineers
- C . Back Office
- D . Executives/Management
Testlet 1
Executive Summary
Project Overview
CGE is a global, diversified, upstream (exploration and production) oil and gas company headquartered in North America. CGE’s three main operating areas are North America, Europe, and Southeast Asia. CGE also has a portfolio of international exploration opportunities. CGE began in North America as a small, upstream oil and gas company. Through acquisitions, CGE grew quickly and acquired companies globally. This led to a decentralized IT model, both from systems and personnel perspectives. CGE currently utilizes several Citrix technologies to provide application virtualization to a global end-user base spread across several continents. Its current IT model for application virtualization is based on regional locations; each region hosts its own Citrix environment to support its local end-user base. CGE is moving toward a global IT model in which the entire application and desktop virtualization environment will be hosted in three data centers, each with a highly available NetScaler pair. CGE would like to provide dedicated desktops to some end-user groups to alleviate past issues with applications and performance. In addition, an Internet upgrade project is underway to eliminate slow connections at all sites. This will improve latency and bandwidth issues throughout the environments. CGE engaged Citrix Consulting to determine whether best practices are being followed in its existing Citrix environments; to provide a design document for a new, consolidated Citrix environment; and to point out risks that should be resolved before moving to this new environment. This deliverable represents the output of the requirements gathering phase and will be used as an input during the architectural design phase of this engagement. Through interactive meetings, Citrix Consulting obtained information regarding CGE’s existing Citrix XenApp environments and strategic goals. By reviewing this information, CGE can understand and methodically address those areas that represent the most profound risks, improve various facets of its current environments, and prepare for the future design phase of a consolidated environment.
Project Goals
During the course of the project, CGE and Citrix Consulting identified a number of project goals.
The following summarizes these goals:
– Perform a detailed assessment of the Citrix components supporting the existing Citrix environments, which include XenApp 6.x, XenServer, and NetScaler Gateway.
– Review relevant peripheral components that support the existing Citrix environments (for example, Active Directory, storage, SQL, networking) to determine if each can support current production workloads and a new Citrix environment.
– Identify operational and environmental improvements to better account for the environments’ growth.
Overview
CGE has locations spread across three primary regions―North America, Europe, and Southeast Asia― with its primary headquarters located in Houston. Sub regions exist within each region, each with its own Citrix infrastructure. Once power and cooling upgrades are complete, Houston will be the primary datacenter and London will be the secondary datacenter.
The following diagram details the locations and network connection types.
Business Layer Overview
Since CGE expanded quickly through acquisitions, corporate IT left infrastructure management up to the acquired companies. As a result, some regions have well-run Citrix environments, while others experience critical outages that simultaneously affect hundreds of end users.
CGE’s CIO, who has been with CGE for slightly less than a year, was hired to be the central point for IT across all regions. The CIO has engaged with the various business units to understand their processes and received various complaints about the stability of the existing Citrix infrastructures.
The CIO feels that the majority of Citrix infrastructure issues are due to a lack of centralized control and common platforms. Some regions have older versions of XenApp, while some are more current. As CGE moves forward, the CIO plans to use a single vendor for the entire solution, and wants to ensure that the new infrastructure is virtualized and fault tolerant.
End-User Layer Overview
CGE has 10,350 employees, approximately 4,700 of which access the Citrix environments daily. Peak logon times are Monday through Friday, from 8:00 a.m. C 10:00 a.m., based on local, regional time zones. Technicians and engineers are shift workers who rotate to accommodate a 24 hours a day, seven days a week schedule.
End user distribution is as follows:
The majority of end users connect using CGE-owned HP laptop and desktop devices. Over 90 percent of these devices are Windows 7-based, as CGE is in the process of completing a Windows XP to Windows 7
migration.
CGE has standardized all these devices on Citrix Online Plug-in for Windows12.1, and is in the process of testing Receiver for Windows 4.2. In the past, some end users have complained about slowness when typing, which may indicate issues with latency.
CGE also allows end users to connect using non-corporate-owned devices. Many end users connect from personal computers and mobile devices such as Apple iPads and iPhones. End users are instructed to download Citrix Receiver from either the Citrix website or the Android or Apple app stores.
End users can be grouped into six separate categories:
– Executives/Management C Regional upper- and mid-level management staff.
– Back Office C End users that provide functions such as accounting, administration, human resources, and finance.
– Research C End users focus mainly on discovering new energy fields and sources.
– Engineers C End users who work with technicians in a senior lead role for both technical and management functions. There is approximately one engineer for every five technicians.
– Technicians C Field workers who service the oil and gas equipment.
– Sales C Primary customer-facing group.
End-user groups and numbers are as follows:
The engineers, technicians, and research groups access Citrix applications primarily in an office-type environment, but may need to access these applications while in the gas and oil fields. In these scenarios, end users connect to Citrix using local Internet connections, ranging from a wireless access point to a tethered mobile device.
To prevent printer driver issues and sprawl, CGE tries to limit end users to their default printer when accessing Citrix. The IT department at CGE’s headquarters has mandated that only the Citrix Universal Print Driver be utilized. As each region manages its own Citrix infrastructure, this has been difficult to enforce.
Each end user’s home directory is mapped when accessing a Citrix session; the drive-mapping letter varies based on the end user’s region. End-user data is stored on different network device types and shares ranging from a Windows CIFS share to an NAS appliance. Corporate IT is unsure if end-user data is being backed up in all regions. CGE hopes to implement formal, corporate-wide standards in the new Citrix environment.
Access Layer Overview
Since each region has its own Citrix environment, end users are fairly isolated within their specific regions. In each region, NetScaler Gateway and Web Interface provide access for internal and external end users.
In some regions, Citrix Secure Gateway is still being utilized for external access. This is primarily due to a past budget constraint, but CGE hopes to provide a redundant and fault-tolerant Citrix access solution for all regions with the new environment. Confusion with the use of the appropriate URL also occurs for end users travelling among regions. A common access point that routes end users to their closest datacenter would most likely reduce this confusion.
As CGE is sensitive to the research that is being conducted toward the development of new energy types and methods, external access to the Citrix environment must be as secure as possible. Currently, internal and external end users employ single-factor authentication; however, the development of a two-factor authentication process is desired.
Access Controllers
Overview
The following table outlines the utilization of Web Interface, StoreFront, NetScaler Gateway, and Citrix Secure Gateway in the various Citrix environments.
Resource Layer
– Personalization Overview:
The following table outlines the current overall profile strategy:
Corporate IT would like to streamline the profile management solution. Numerous end users complain about slow logon and logoff times, and routine profile corruption is also a concern. It is common for IT to have to reset end-user profiles on a daily basis. CGE hopes to provide a stable end-user profile platform by implementing a standardized set of hardware to host profiles and by employing Citrix Profile Management.
Citrix policies vary from region to region, but corporate IT has tried to enforce the following policy settings (at a minimum):
Technicians and engineers require USB mapping for various field devices such as flow meters and sonar devices. Since the majority of the remaining end-user groups probably do not need USB mapping, this could be disabled for those groups in the new environment.
Corporate IT feels that most end users require only their default printer within a Citrix session. However, other end-user groups (primarily Back Office) need to access multiple printers with advanced printing functionality, such as stapling. In all cases, the need to limit native print drivers is critical.
– Applications Overview:
The majority of end users utilize published applications delivered through one of the regional XenApp farms. Some end-user groups require a full desktop instead of published applications. CGE mandates that no new software (agents) may be deployed in the current desktop infrastructure.
The following table provides additional details about the applications and desktops used throughout the Citrix environments.
Image Design Overview
The following table outlines current application specifics. All servers are Windows 2008 R2 running XenApp 6.5, and all are virtual machines. Applications are delivered based on grouping. For example, Office Suite is installed on a dedicated set of servers.
Control Layer
– Active Directory:
Infrastructure Services
Active Directory
As the solution integrates with Active Directory, resources must be easy to manage and maintain within the directory structure. The following details CGE’s typical organizational unit (OU) structure for the XenApp environments.
Overview
– Databases Overview:
Infrastructure Services
Databases Overview
CGE manages seven XenApp 6.5 farms―one for each region. A variety of SQL server versions host the farm databases. Some databases are located on a shared SQL cluster, while others are standalone.
The following table provides an overview of each environment, the database location, and the database configuration.
– Licensing Overview:
Infrastructure Services
Licensing Overview
As each region currently manages its own Citrix infrastructure, licensing types vary from region to region. Some regions have more licenses than end users, while others sometimes reach their limit. Each region has its own Citrix and Microsoft license servers.
Corporate IT will be consolidating the Citrix and Microsoft licenses under a common corporate agreement in the new Citrix environment. This will allow for better cost control and appropriate distribution of licenses.
If needed, additional licenses will be procured to support the new Citrix solution. This may involve purchasing additional Microsoft and Citrix licenses to support a disaster recovery model. The following details the current Citrix and Microsoft license types.
XenApp Controllers Overview
All regions use virtualized XenApp 6.5 servers. Some regions currently use Provisioning Services 6.1, but CGE wants to simplify management processes by moving to Provisioning Services 7.6 in each region.
Although there are no test farms in the current Citrix environments, CGE would like to incorporate dedicated test environments in the new Citrix solution. These new test environments should utilize a minimum of storage. The following table details the XenApp environments for each region.
End users in some regions often complain about slow application enumeration and launch issues. Corporate IT hopes that these issues will be resolved with the new Citrix solution.
Hardware Layer
– Storage Overview:
Depending on the region, the physical hosts that provide hardware virtualization use a variety of local and SAN-based storage. Using local storage has prevented virtual machines from moving to another host in the event of a host failure, creating some regional capacity issues. Corporate IT is unsure if end-user data is being backed up in all regions.
CGE hopes to implement global formal standards in the new Citrix environment. A fault-tolerant solution is required for hardware virtualization and end-user data storage.
The following table describes the different storage types based on region:
– Networking Overview:
CGE utilizes regional private networks. Not all regions connect directly to each other. The network links range in size from 5 Mbps to 10 Mbps. The networks are congested at times among regions, causing large file copies to be scheduled during off hours to minimize disruption.
CGE currently has a project underway to increase the bandwidth among regions and reduce latency for the new Citrix environment. The following diagram details the links among the regions.
Each region has a separate Internet connection of varying capacity and utilizes its own local network connection for Internet traffic. Microsoft and routing policies are in place to direct Internet-bound traffic to use this local Internet connection. The goal was to reduce the amount traffic on the links among regions, saving bandwidth for interregional traffic. For external Citrix access, each region uses its local Internet connection. The NetScaler Gateways and Citrix Secure Gateways are placed in a demilitarized zone (DMZ). Appropriate firewall ports are configured to allow the Citrix traffic to navigate to the internal resources.
– Control Hosts Overview:
As CGE acquired several companies within a short period of time, it did not change any of the acquired companies’ infrastructures. This has resulted in regional inconsistency in hypervisor platforms and versions and with hardware vendors.
Corporate IT hopes to streamline the infrastructure to ensure corporate standards are followed. At a minimum, a standard hypervisor platform must be used to allow IT resources to train on a common hypervisor platform and to quickly assist in other regions when needed.
For the new Citrix solution, CGE has budgeted for the replacement of aging infrastructure equipment, where needed, including the hypervisor platform. Procurement of the best infrastructure components within this planned budget must be ensured.
Operations Layer
– Support Overview:
In the current configuration, each region is responsible for supporting its end users and infrastructure. This often leads to confusion for end users who travel, as well as the for the help desk members who work with these end users.
Corporate IT hopes to develop a centralized support structure from the end-user layer to the infrastructure layer. The CIO envisions a model that allows an end user to call one number for support. Regional staff will support the help desk 24 hours a day, seven days a week. If first-tier help desk support is unable to resolve the issue in a timely manner, a second-tier support team would be engaged.
In order to facilitate this troubleshooting model, the first-tier help desk and second-tier support teams would require access to the Citrix infrastructure. The CIO would prefer a centralized console for the help desk team, but it is not a requirement.
In the past, some regions had training budgets, while others did not. This has often resulted in lengthy resolution of issues due to improper training. To alleviate this, the CIO has mandated that the first-tier help desk and second-tier support teams be properly trained in the products being implemented in the new Citrix solution.
– Testing and Change Control Overview:
An analysis revealed that none of the regions have a proper test environment. At best, some regions have a few test XenApp servers in their production farms that are used for testing. In addition, the procedures for implementing changes to the systems vary from region to region. Some regions have a documented change control process, while others install changes as application owners or end users request them. This has resulted in overall poor performance of the Citrix environments and has caused outages in some regions. The CIO has mandated that in the new Citrix solution, a change control board must approve changes, and a separate test environment must be deployed.
– Operations Overview:
Citrix Rollups and hotfixes are applied sporadically throughout the Citrix farms. The following table details the implementation of Citrix Rollups.
Backups of the Aberdeen, Houston, and London SQL databases are conducted daily via SQL. A nightly backup of the Windows server ensures that the local SQL backup is captured. However, the restoration process has not been tested. The remaining locations lack SQL administrators, so it is unclear if SQL backups are being performed.
The CIO recognizes this gap and is taking steps to ensure that all Citrix databases are routinely backed up. For the short term, the SQL administrators in the Houston location will assume responsibility for the SQL backups in the locations that lack SQL administrators. Since each region has operated independently, no central disaster recovery plan exists. Corporate IT hopes to provide a seamless disaster recovery solution for all locations and believes that it may be possible to utilize regional resources with minimal overhead. Corporate IT feels that it is likely that, in the event of a disaster, only a subset of a region’s end users would require a disaster recovery solution, and believes that approximately 50 percent of regional end users would be a good starting point.
– Monitoring Overview:
The Houston location is the only location using EdgeSight. Corporate IT uses EdgeSight for license trending and occasional end-user troubleshooting. Interviews with the IT staff using EdgeSight revealed that EdgeSight could probably be better utilized. The help desk staff has tried using EdgeSight, but has felt overwhelmed and would prefer a much simpler interface to troubleshoot end-user issues.
CGE recently purchased Tivoli, an antivirus program, and is in the process of rolling it out to all locations. Corporate IT has requested from Citrix Consulting any specific monitoring metrics and alerts related to the Citrix environment. CGE realizes that effective monitoring will allow them to be proactive in addressing issues before they cause critical outages.
The following is CGE’s current antivirus policy:
– Periodic scanning of servers must be conducted at 1:00 a.m., local time, each morning.
– All workstations and servers must have antivirus software installed, and real-time scanning must be enabled.
– Periodic updating of antivirus software is required. Currently, antivirus updates are automatically delivered at 8:00 a.m., 1:00 p.m., 4:00 p.m., and 11:00 p.m., local time.
– Only vendor-required exclusions may be used, and all exclusions must be configured for both real-time and periodic scans.
– Real-time antivirus scanning must be configured to scan files when they are accessed and written.
– All servers must be configured to scan their local drives, and all remote network drive scanning must be disabled. Corporate IT has shared several Citrix articles relating to Citrix product antivirus exclusions with the regions. It is unclear if the regions have implemented these exclusions.
Which licensing changes should a Citrix Architect recommend to enable the HDX Mobile feature in CGE’s Jurong and Makassar offices?
- A . Purchase XenMobile licenses.
- B . Convert existing XenApp licenses to per device licenses.
- C . Purchase NetScaler Universal Licenses for each mobile device.
- D . Upgrade existing XenApp licenses to XenApp Enterprise licenses.
Scenario: The Engineers end-user group requires access to an application that automatically updates itself daily from an Internet source. The application is NOT multi-user aware.
Which FlexCast model would be most suitable for these end users?
- A . Local VM
- B . Remote PC Access
- C . Hosted Shared Desktop – Non-Persistent
- D . Hosted VDI – Static/Non-Persistent with Personal vDisk
Which FlexCast model should a Citrix Architect use to deploy desktops to the Research end-user group?
- A . Hosted Shared
- B . Streamed VHD
- C . Hosted VDI Random
- D . Hosted VDI Static with Personal vDisk
Scenario: An analysis of CGE’s applications shows that 98% are compatible with Windows 8 64-bit and Windows Server 2012. The remaining applications are incompatible with a 64-bit operating system.
Which solution should a Citrix Architect recommend to enable the delivery of the incompatible applications?
- A . Use VM Hosted Apps to deliver the incompatible applications from a Windows 7 32-bit desktop.
- B . Use an existing XenApp 6.5 farm to deliver the incompatible applications using a 64-bit desktop.
- C . Stream the application with Microsoft App-V and deliver the incompatible applications using a 64-bit desktop.
- D . Publish the applications from a XenApp 7.6 session host to deliver the incompatible applications to a 64-bit desktop.
Scenario: StoreFront is installed on dedicated servers. A Citrix Architect needs to supply CGE’s corporate IT team with the critical Citrix services to be monitored.
Which two Citrix services on the StoreFront servers should the architect recommend be monitored? (Choose two.)
- A . Monitor Service
- B . StoreFront Service
- C . Peer Resolution Service
- D . Credential Wallet Service
Scenario:
To ensure the security of its new solution, CGE wants to limit end-user access to USB peripherals. Policies have been implemented to disable USB redirection for all end users. As a company policy, only the Research end-user group will be allowed to access USB peripheral devices.
What could a Citrix Architect design to meet the stated requirements?
- A . A GPO that allows USB redirection, linked to the CGE OU.
- B . A GPO that allows USB redirection, linked only to the Aberdeen and Houston OUs.
- C . A Citrix policy that allows USB redirection, with a filter on the IP range for CGE’s Aberdeen and Houston subnets.
- D . A Citrix policy that allows USB redirection, with a filter on the Delivery Group for the Research end-user group desktop.
Scenario:
CGE wants to deploy a new StoreFront 2.6 infrastructure. End users will need to access both the legacy XenApp environment and the new XenApp and XenDesktop environment before they are fully migrated. The legacy and new environments have published applications and desktops with conflicting names, so only one should be accessible at a time. CGE does NOT want to reconfigure the client during the migration, so any changes must be centrally managed.
How should a Citrix Architect recommend that the StoreFront infrastructure be configured to achieve the desired result?
- A . Configure two stores with one Delivery Controller each, and configure the client using a configuration file.
- B . Configure two separate StoreFront server groups, one for each environment. Use NetScaler load balancing to manage connections between the server groups.
- C . Create one store, configured with Delivery Controllers from both environments. Use Active Directory Groups to associate end users to the appropriate environment.
- D . Create one store, configured with Delivery Controllers from both environments. Configure an Application Filter using PowerShell to only show applications from the legacy environment.
Scenario:
CGE wants to upgrade to SQL Server 2014 in order to support backend SQL databases that will support the next Citrix environment. The key requirement is high availability for all nodes in the different geographical regions.
Which solution could reduce the read IOPS requirements on a shared storage array?
- A . IntelliCache
- B . Personal vDisk
- C . Provisioning Services
- D . Machine Creation Services
Scenario:
CGE wants to upgrade to SQL Server 2014 in order to support backend SQL databases that will support
the next Citrix environment. The key requirement is high availability for all nodes in the different geographical regions.
Which high availability solution should a Citrix Architect recommend?
- A . Fast Recovery
- B . Database Mirroring
- C . Database Snapshots
- D . AlwaysOn Failover Cluster Instances
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
What should the architect recommend to alleviate existing issues and fulfill the requirements specified in the scenario?
- A . Configure Citrix Profile management without folder redirection. Configure the ‘Path to user store’ to the same location as the home drive. Configure the ‘Migration of existing user profiles’ policy setting. Use group policy templates for configuration of Profile management policies.
- B . Configure Citrix Profile management and continue to use folder redirection. Configure the ‘Path to user store’ to a central location different than the home drive. Configure the ‘Migration of existing user profiles’ policy setting. Use .ini files for configuration of Profile management policies.
- C . Configure Citrix Profile management and continue to use folder redirection. Configure the ‘Path to user store’ to a central location different than the home drive. Configure the ‘Migration of existing user profiles’ policy setting. Use the group policy templates for configuration of Profile management policies.
- D . Configure Citrix Profile management and continue to use folder redirection. Configure the ‘Path to user store’ to the same location as the home drive. Configure the ‘Migration of existing user profiles’ policy setting. Use .ini files for configuration of User Profile management policies.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
How can Citrix Profile management without folder redirection be configured for Sales end-user group profiles?
- A . Enable ‘Profile streaming’.
- B . Enable ‘Offline profile support’.
- C . Enable ‘Active write back’.
- D . Enable file and folder exclusions.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
How can Citrix Profile management be configured to allow Sales end-user group profiles to be standardized with the rest of CGE?
- A . Enable ‘Active write back’
- B . Enable file and folder exclusions
- C . Enable ‘Offline profile support’
- D . Enable ‘Profile streaming’
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
How can Citrix Profile management be configured for Sales end-user group profiles?
- A . Enable file and folder exclusions
- B . Enable ‘Active write back’
- C . Enable ‘Offline profile support’
- D . Enable ‘Profile streaming’
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Profile streaming’ when configuring Citrix Profile management without folder redirection benefit CGE’s Sales end-user group?
- A . It allows faster logons.
- B . It simplifies home drive cleanup.
- C . It minimizes the required storage needed for folder redirection.
- D . It improves application performance.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Offline profile support’ benefit CGE’s Sales end-user group?
- A . It allows faster logons and logoffs.
- B . It minimizes the required storage needed for folder redirection.
- C . It simplifies home drive cleanup.
- D . It improves data accuracy in volatile environments.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Active write back’ when configuring Citrix Profile management without folder redirection benefit CGE’s Sales end-user group?
- A . It improves application performance.
- B . It simplifies home drive cleanup.
- C . It minimizes the required storage needed for folder redirection.
- D . It improves data accuracy in volatile environments.
D
Explanation:
Enable Active Write-Back to allow Citrix UPM to synchronize profile data during the user session, instead of waiting to synchronize the entire profile upon user logout. This prevents profiles from not synchronizing all data and from being corrupted. Active Write-Back prevents this by synchronizing files during the entire user session, so when the user logs off, there will be minimal profile data (if any) that must be synchronized. A direct benefit of this setting is that if a virtual desktop crashes or gets reset instead of properly shutdown, users need not have to worry about files not being synchronized.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling file and folder exclusions when configuring Citrix Profile management without folder redirection benefit CGE’s Sales end-user group?
- A . It minimizes the required storage needed for folder redirection.
- B . It simplifies home drive cleanup.
- C . It improves application performance.
- D . It allows faster logons and logoffs.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Active write back’ when configuring Citrix Profile management to allow standardization of profiles benefit CGE’s Sales end-user group?
- A . It improves application performance.
- B . It simplifies home drive cleanup.
- C . It minimizes the required storage needed for folder redirection.
- D . It improves data accuracy in volatile environments.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling file and folder exclusions when configuring Citrix Profile management to allow standardization of profiles benefit CGE’s Sales end-user group?
- A . It minimizes the required storage needed for folder redirection.
- B . It simplifies home drive cleanup.
- C . It improves application performance.
- D . It allows faster logons and logoffs.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect
managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Offline profile support’ when configuring Citrix Profile management to allow standardization of profiles benefit CGE’s Sales end-user group?
- A . It allows faster logon/logoff.
- B . It minimizes the required storage needed for folder redirection.
- C . It simplifies home drive cleanup.
- D . It improves data accuracy in volatile environments.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Profile streaming’ when configuring Citrix Profile management to allow standardization of profiles benefit CGE’s Sales end-user group?
- A . It allows for faster logons.
- B . It simplifies home drive cleanup.
- C . It minimizes the required storage needed for folder redirection.
- D . It improves application performance.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling file and folder exclusions when configuring group profiles benefit CGE’s Sales end-user group?
- A . It minimizes the required storage needed for folder redirection.
- B . It simplifies home drive cleanup.
- C . It improves application performance.
- D . It allows faster logons and logoffs.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Active write back’ when configuring group profiles benefit CGE’s Sales end-user group?
- A . It improves application performance.
- B . It simplifies home drive cleanup.
- C . It minimizes the required storage needed for folder redirection.
- D . It improves data accuracy in volatile environments.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Offline profile support’ when configuring group profiles benefit CGE’s Sales end-user group?
- A . It allows faster logons and logoffs.
- B . It minimizes the required storage needed for folder redirection.
- C . It simplifies home drive cleanup.
- D . It improves data accuracy in volatile environments.
Scenario:
CGE is experiencing numerous issues with its existing profile management solution. The Citrix Architect managing the project is tasked with designing a solution that alleviates existing issues and, if possible, minimizes the loss of existing customizations. Configuration changes need to be implemented quickly and with minimal complexity.
Why does enabling ‘Profile streaming’ when configuring group profiles benefit CGE’s Sales end-user group?
- A . It allows faster logons.
- B . It simplifies home drive cleanup.
- C . It minimizes the required storage needed for folder redirection.
- D . It improves application performance.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Which XenServer resource pool design should a Citrix Architect recommend to host all required workloads?
- A . Create two resource pools: one for the infrastructure workloads and one for the Server OS machine and Desktop OS machine workloads.
- B . Create one dedicated resource pool for the infrastructure, Server OS machine, and Desktop OS machine workloads.
- C . Create three resource pools: one each for the infrastructure, the Server OS machine, and the Desktop OS machine workloads.
- D . Create three dedicated resource pools: one for the Delivery Controllers, one for virtual Server OS machine and Desktop OS machine workloads, and one for infrastructure workloads.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
How should the resource pools be designed to host the infrastructure workloads and virtual desktops to ensure high availability?
- A . Resource pools comprising a maximum of eight XenServer hosts should be created for the virtual solution. The virtual disks of the infrastructure workloads should be backed up daily, and third-party backup solutions should be implemented for the desktops.
- B . Resource pools comprising a maximum of 24 XenServer hosts should be created for the virtual solution. The virtual disks of the infrastructure workloads should be on a storage repository to provide XenMotion and high availability capabilities. The virtual disks of the infrastructure workloads should be backed up daily.
- C . Resource pools comprising a maximum of 16 XenServer hosts should be created for the virtual solution. The virtual disks of all workloads should be on a shared storage repository to provide XenMotion and high availability capabilities. Virtual machine meta information and data should be replicated to the failover site by the new storage solution.
- D . Resource pools comprising a maximum of 32 XenServer hosts should be created for the virtual solution. The virtual disks of the infrastructure workloads should be on a shared storage repository to provide XenMotion and high availability capabilities. Virtual machine meta information and data should be replicated and backed up.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
How should the resource pools be designed to host the infrastructure workloads and virtual desktops to ensure high availability?
- A . Separate the workloads by roles and group them as a XenServer resource pool to ensure easier management, fewer workload conflicts, and support for disaster recovery. Each XenServer resource pool should comprise a maximum of eight XenServer hosts. A storage repository needs to be implemented for central storage of virtual disks, as well as for XenMotion, high availability, and backup for disaster recovery purposes.
- B . Separate the workloads by roles and group them as a XenServer resource pool to reflect the OU structure of Active Directory. Each XenServer resource pool should comprise a maximum of 24 XenServer hosts. A storage repository needs to be implemented for central storage of virtual disks, as well as for XenMotion, high availability, and backup for disaster recovery purposes.
- C . Separate the workloads by roles and group them as a XenServer resource pool. Each XenServer resource pool should comprise a maximum of 16 XenServer hosts. Multiple storage repositories need to be implemented for central storage of virtual disks, as well as for XenMotion and high availability between resource pools and backup for disaster recovery purposes.
- D . Separate the workloads by roles and group them as a XenServer resource pool to ensure that the workloads can be streamed by Provisioning Services, including XenServer. Each XenServer resource pool should comprise a maximum of 32 XenServer hosts. Multiple storage repositories need to be implemented for central storage of virtual disks, as well as for XenMotion, high availability between resource pools, and backup for disaster recovery purposes.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is using a maximum of eight XenServer hosts, with daily backups for the infrastructure workloads and third-party backups for the desktop solution, the best design for the resource pools?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads to prevent interference, and facilitates management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicts. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The
infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is using a maximum of 24 XenServer hosts, using a virtual disk storage repository for XenMotion and high availability, and daily backups of the infrastructure workloads the best design for the resource pools?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads to prevent interference, and facilitates management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicts. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is using a maximum of 16 XenServer hosts, using a shared virtual disk storage repository for XenMotion, high availability, and replication to the failover site the best design for the resource pools?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a new storage solution for disaster recovery purposes. In addition, it accounts for Server OS and Desktop OS machine characteristics.
- B . It ensures simple setup with redundancy and meets the requirement of separating OS types.
- C . It bases resource pools on roles, and facilitates the movement of workloads from one resource pool to another in the event of maintenance or disaster recovery.
- D . It ensures the separation of infrastructure and virtual desktop workloads and optimizes performance and high availability.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is using a maximum of 32 XenServer hosts, using a shared virtual disk storage repository for XenMotion, high availability, and the replication and backup of meta information the best design for the resource pools?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a disaster recovery process that leverages a backup solution.
- B . It ensures simple setup with redundancy.
- C . It bases resource pools on roles, and facilitates the movement of workloads from one resource pool to
another in the event of maintenance or disaster recovery. - D . It ensures the separation of infrastructure and virtual desktop workloads, which optimizes performance and high availability.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating a resource pool comprising a maximum of eight XenServer hosts, backing up virtual workloads on a daily basis, and using third-party backups for the desktops the best design solution?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads, and facilitates easier management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicts. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating a resource pool comprising a maximum of 16 XenServer hosts, using a shared storage repository to provide XenMotion and high availability, and replicating meta information to the disaster recovery site the best design solution?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a new storage solution for disaster recovery purposes.
- B . It ensures simple setup with a built-in failover design.
- C . It allows virtual workloads to fail over to a failover site for disaster recovery purposes.
- D . It optimizes performance and provides centralized management.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating a resource pool comprising a maximum of 32 XenServer hosts, using a virtual disk storage repository for XenMotion and high availability, and replicating and performing backups for the meta information the best design solution?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a new storage solution for disaster recovery purposes.
- B . It ensures simple setup with a built-in failover design.
- C . It allows virtual workloads to fail over to a failover site for disaster recovery purposes.
- D . It optimizes performance and provides centralized management.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating resource pools comprising a maximum of eight XenServer hosts, performing daily backups of the infrastructure workloads, and using third-party backups for the desktops the best design solution?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a new storage solution for disaster recovery purposes. In addition, it accounts for Server OS and Desktop OS machine characteristics.
- B . It ensures simple setup with redundancy and meets the requirement of separating OS types.
- C . It bases resource pools on roles, and facilitates the movement of workloads from one resource pool to another in the event of maintenance or disaster recovery.
- D . It ensures the separation of infrastructure and virtual desktop workloads and optimizes performance and high availability.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating resource pools comprising 24 XenServer hosts, using a virtual disk storage respository to provide XenMotion and high availability, and performing daily backups of infrastructure workloads the best design solution?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads, and facilitates easier management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicts. In addition, it provides critical database services with sufficient workload-specific
resources and failover capabilities. - D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating a resource pool comprising a maximum of 16 XenServer hosts, using a shared virtual disk storage repository to provide XenMotion and high availability capabilities, and replicating meta information to a failover site the best design solution?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a new storage solution for disaster recovery purposes. In addition, it accounts for Server OS and Desktop OS machine characteristics.
- B . It ensures simple setup with redundancy and meets the requirement of separating the OS types.
- C . It bases resource pools on roles, and facilitates the movement of workloads from one resource pool to another in the event of maintenance or disaster recovery.
- D . It ensures the separation of infrastructure and virtual desktop workloads and optimizes performance and high availability.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is creating a resource pool comprising a maximum of 32 XenServer hosts, using a virtual disk shared storage repository to provide XenMotion and high availability, and performing replication and backups of meta information the best design solution?
- A . It addresses all customer requirements by ensuring appropriate design of resource pools, high availability for critical workloads, and a disaster recovery process that leverages a backup solution.
- B . It ensures simple setup with redundancy. and meets the requirement of separating the OS types.
- C . It bases resource pools on roles, and facilitates the movement of workloads from one resource pool to another in the event of maintenance or disaster recovery.
- D . It ensures the separation of infrastructure and virtual desktop workloads and optimizes performance and high availability.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is separating workloads by roles, creating a resource pool comprising a maximum of eight XenServer hosts, and implementing a storage repository for virtual disks, XenMotion, high availability, and disaster recovery backups the best design solution?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads, and facilitates management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicts. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is separating the workloads by roles to reflect the OU structure of Active Directory, creating a resource pool comprising a maximum of 24 XenServer hosts, and implementing a storage repository for virtual disks, XenMotion, high availability, and disaster recovery backups the best design solution?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads, and facilitates management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicts. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is separating workloads by roles, creating a resource pool comprising a maximum of 16 XenServer hosts, and implementing multiple storage repositories for virtual disks, XenMotion, high availability, and
backups for disaster recovery purposes the best design solution?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads, and facilitates management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicting situations. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
Why is separating workloads by roles, creating a resource pool comprising a maximum of 32 XenServer hosts, and implementing multiple store repositories for virtual disks, XenMotion, high availability, and backups for disaster recovery the best design solution?
- A . It ensures the logical separation of infrastructure and virtual desktop workloads, and facilitates management and expansion capabilities.
- B . It provides workload flexibility to more efficiently leverage available resources within a resource pool, and facilitates expansion options. In addition, daily backups create minimal downtime for critical workloads.
- C . It separates infrastructure and virtual desktop workloads according to resource usage characteristics to avoid conflicting situations. In addition, it provides critical database services with sufficient workload-specific resources and failover capabilities.
- D . It ensures the logical separation of all workloads and virtual desktops. In addition, the backup solution reduces the risk of data loss and minimizes downtime.
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases. A Citrix Architect is asked to design a cost-efficient environment for the Back Office end-user group.
Which FlexCast model should the architect recommend?
- A . Hosted Shared
- B . Hosted VDI
- C . Streamed VHD
- D . Local VM
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
How should the Hosted Shared servers be provisioned to meet the needs of the Back Office end-user group when only block storage is available on the shared storage of the Hypervisor?
- A . By using Machine Creation Services (MCS)]
- B . By using Provisioning Services
- C . By manually installing the OS
- D . By using cloned virtual machine (VM) templates
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
How should the architect recommend that the target devices boot from the Provisioning Services server?
- A . By configuring a Windows deployment server
- B . By using SFTP
- C . By using FTP
- D . By using DHCP
Scenario:
CGE decided to virtualize its infrastructure workloads and provide a virtual solution to all end users. The infrastructure workloads include Delivery Controllers, StoreFront servers, License Servers, and Microsoft SQL Servers for databases.
How should the architect recommend that the Synchronizer be deployed?
- A . By using a Hyper-V virtual appliance on Hyper-V
- B . By installing the Synchronizer software on a Hyper-V server
- C . By booting from the Synchronizer ISO image
- D . By installing a Synchronizer virtual appliance on XenServer
